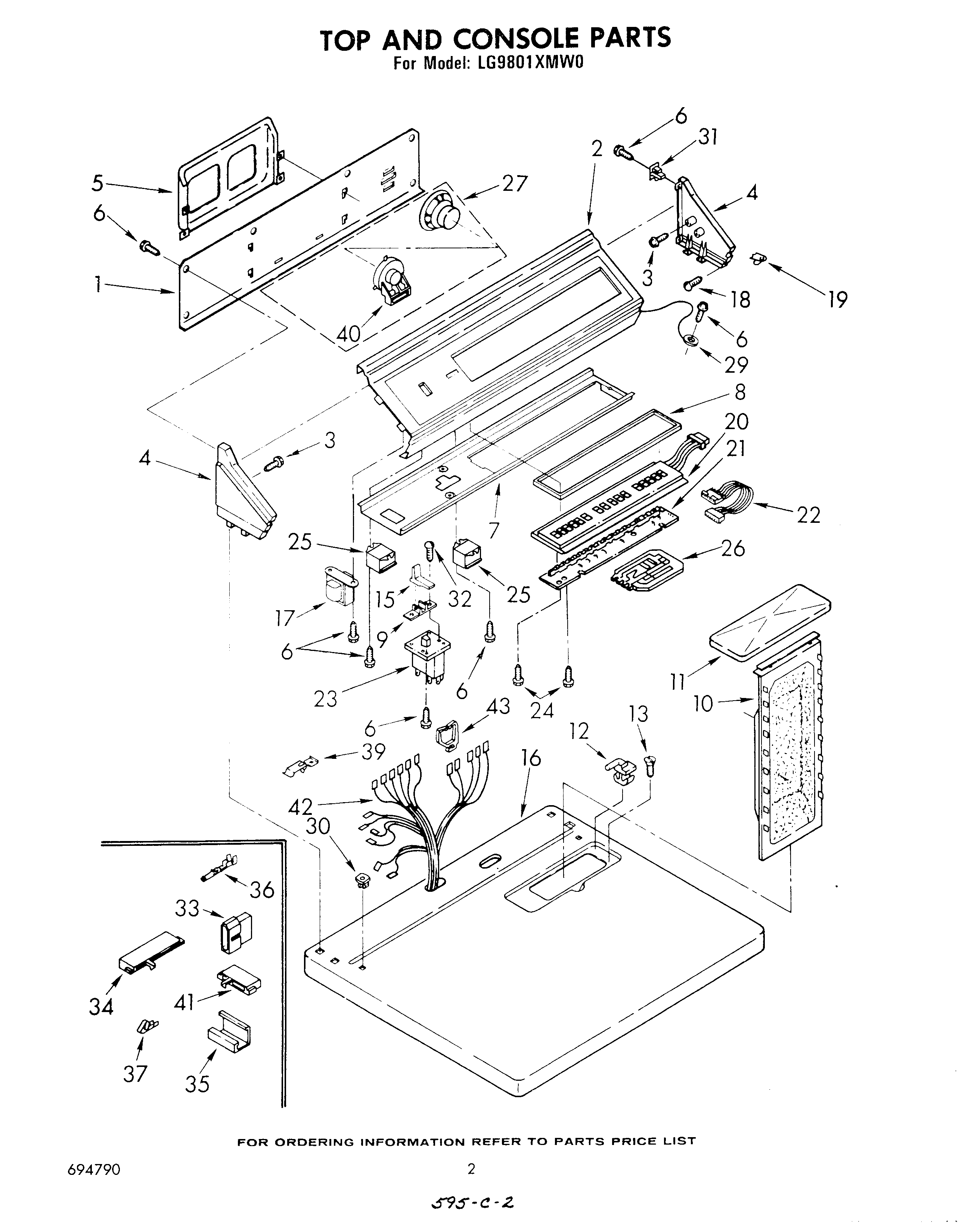

LG9801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG9801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG9801XMW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
Golden Harvest (Uncut)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
Almond (Uncut)
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.) (Platinum Cap, End (R.H.))
4Cap, End (L.H.) (Toast)
4Cap, End (L.H.) (White)
4Cap, End L.H. (Platinum)
4Cap, End L.H. (Golden Harvest)
4Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
4Cap, End L.H. (Toast)
4Cap, End L.H. (White)
4Cap, End (L.H.) (Almond)
4Cap, End L.H. (Almond Cap, End R.H.)
5Rack, Literature
6SCREW
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16top (white)
16Top (Almond)
16Top (Platinum)
16Top (Toast)
16Top (Golden Harvest)
17Transformer
18Screw, 8-18 x 1 (2)
19Stop, Push-In Top
20Module, Touch
21Display Assembly
22Harness, Display
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
27Speaker & Housing
29Wire, Ground
30Nut, Push-In (2)
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
33Plug
34WPL 60447
35WPL 60719
36WP94614 Whirlpool Terminal
36WP596797 Whirlpool Terminal
37Terminal
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
41WPL 60671
42WPL 693137
43WPL 691269
43WPL 691556
43WPL 694790
43Instructions,
43350956 Whirlpool Spray Assembly
4372017 Whirlpool Appliance Touch-Up Paint White
43WP72107 Whirlpool Touchup
43Leveler (Thinner)
4372110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
4372113 Whirlpool Touch-Up Paint
43Golden Harvest
43350930 Whirlpool White Spray Paint
43Toast
43Paint, Spray (13 Oz.) (Platinum)
43WPL 72112
43WPL 799351
43Clip, Harness (Rear Bulkhead Area)
43WPL 693849
43350938 Whirlpool Spray Gun
