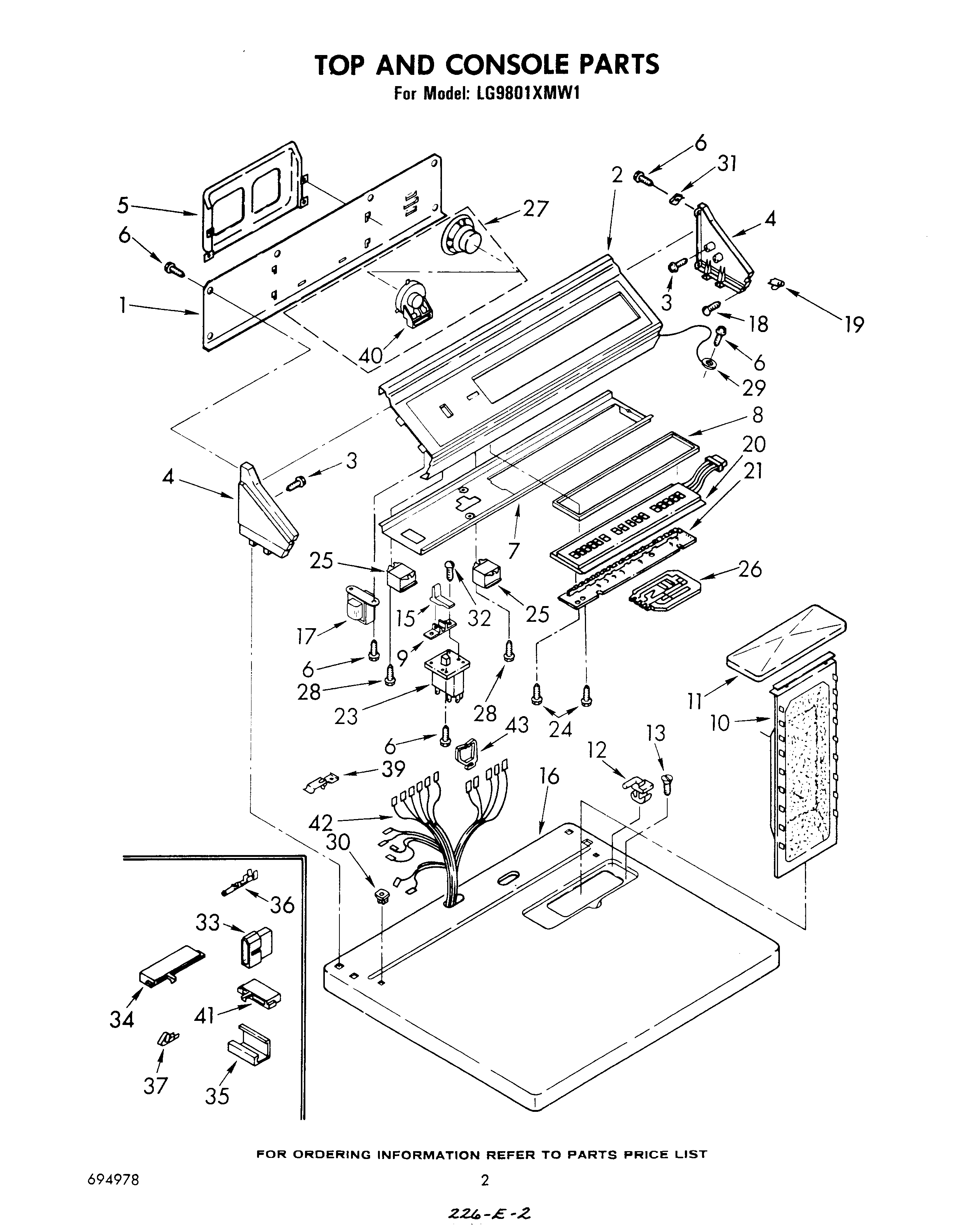

LG9801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONALadmin2025-04-26T11:16:13+00:00LG9801XMW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL
Products
| Position | Product |
|---|
| Golden Harvest (Uncut) |
| Enamal, Toast (1 Qt. Uncut) |
| Platinum (Uncut) |
| Almond (Uncut) |
| 799344 Whirlpool Refrigerator Paint |
| 1 | Panel, Rear Console |
| 2 | Panel, Control |
| 3 | WPL 355326 |
| 4 | Cap, End L.H. (Toast) |
| 4 | Cap, End L.H. (Golden Harvest) |
| 4 | Cap, End (L.H.) (Golden Harvest Cap, End (R.H.)) |
| 4 | Cap, End (L.H.) (Platinum Cap, End (R.H.)) |
| 4 | Cap, End (L.H.) (White) |
| 4 | Cap, End (L.H.) (Toast) |
| 4 | Cap, End L.H. (White) |
| 4 | Cap, End (L.H.) (Almond) |
| 4 | Cap, End L.H. (Almond Cap, End R.H.) |
| 4 | Cap, End L.H. (Platinum) |
| 5 | Rack, Literature |
| 6 | SCREW |
| 7 | Bracket, Control |
| 8 | Trim, Frame |
| 9 | Pivot, Lever |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Cover, Lint Screen (Platinum) |
| 11 | Cover, Lint Screen (Golden Harvest) |
| 11 | Cover, Lint Screen (White) |
| 11 | Cover, Lint Screen (Almond) |
| 11 | Cover, Lint Screen (Toast) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 15 | Lever |
| 16 | Top (Almond) |
| 16 | top (white) |
| 16 | Top (Golden Harvest) |
| 16 | Top (Platinum) |
| 16 | Top (Toast) |
| 17 | Transformer |
| 18 | Screw, 8-18 x 1 (2) |
| 19 | Stop, Push-In Top |
| 20 | Module, Touch |
| 21 | Display Assembly |
| 23 | Relay, Start-To-Stop |
| 24 | Screw, 8-18 x 1/2 (6) |
| 25 | Power Relay (2) |
| 26 | Microcomputer Assembly |
| 27 | Speaker & Housing |
| 28 | CamAlso Available (12-Pin (15 Min.)) |
| 29 | Wire, Ground |
| 30 | Nut, Push-In (2) |
| 31 | Clip (4) |
| 32 | WPW10068250 Whirlpool Dishwasher Screw |
| 33 | Plug |
| 34 | WPL 60447 |
| 35 | WPL 60719 |
| 36 | WP596797 Whirlpool Terminal |
| 36 | WP94614 Whirlpool Terminal |
| 37 | Terminal |
| 39 | Clip, Wire (Tech Sheet/Top) |
| 40 | WPL 359188 |
| 41 | WPL 60671 |
| 42 | WPL 694296 |
| 43 | 72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz |
| 43 | WPL 691269 |
| 43 | WPL 693849 |
| 43 | Leveler (Thinner) |
| 43 | WP72107 Whirlpool Touchup |
| 43 | 72017 Whirlpool Appliance Touch-Up Paint White |
| 43 | 350956 Whirlpool Spray Assembly |
| 43 | 350938 Whirlpool Spray Gun |
| 43 | 72113 Whirlpool Touch-Up Paint |
| 43 | WPL 694125 |
| 43 | WPL 799351 |
| 43 | Clip, Harness (Rear Bulkhead Area) |
| 43 | WPL 72112 |
| 43 | Paint, Spray (13 Oz.) (Platinum) |
| 43 | Toast |
| 43 | 350930 Whirlpool White Spray Paint |
| 43 | Golden Harvest |
| 43 | WPL 694344 |
| 43 | WPL 694978 |
