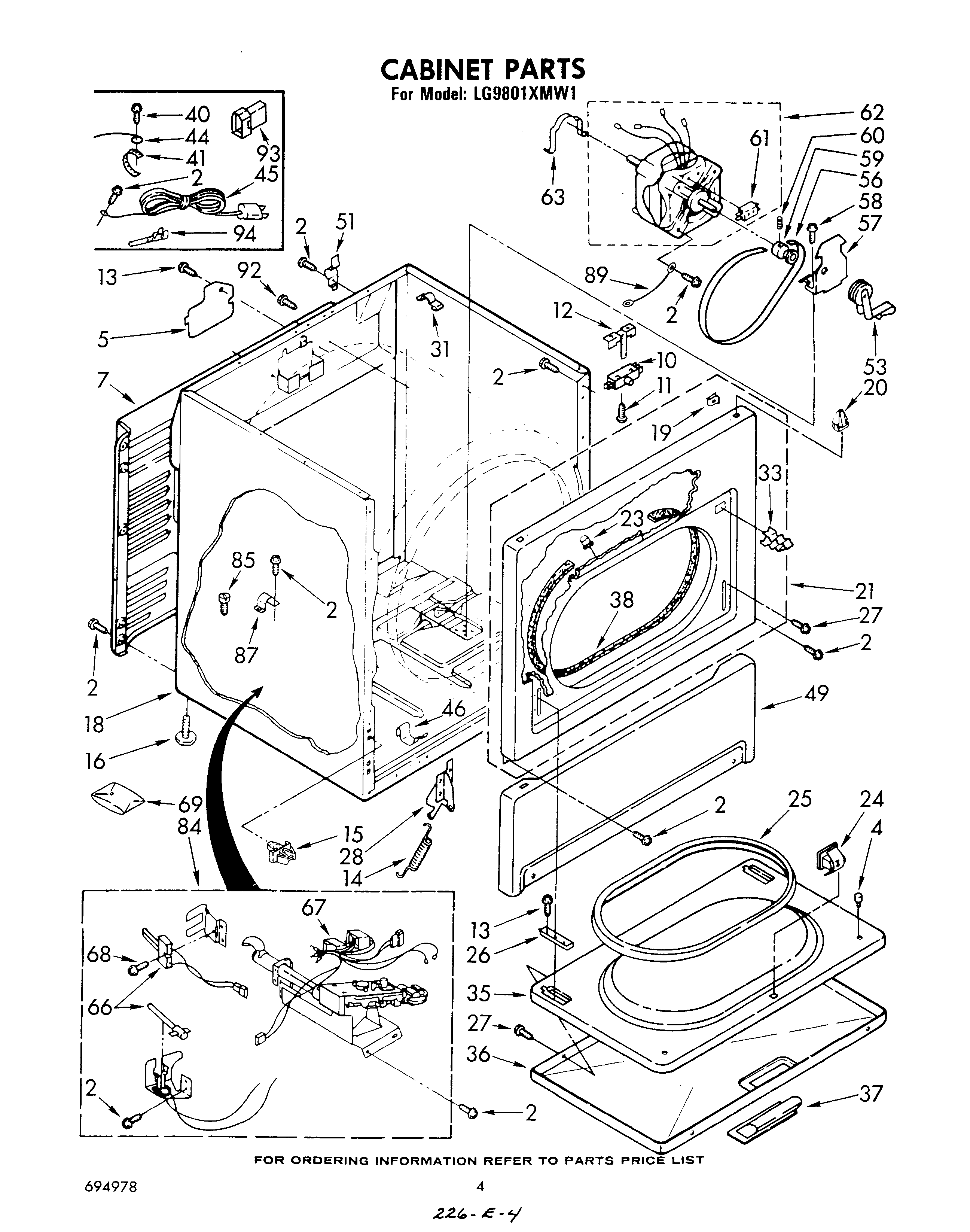

LG9801XMW1 03 – CABINET

LG9801XMW1 03 – CABINET

Written by

in

LG9801XMW1 03 – CABINET

Products

PositionProduct
2SCREW
4238614 Whirlpool Bumper Hinge
5W11736322 Whirlpool Cover Assembly
7Panel, Rear
10Switch, Door
11WP98129 Whirlpool Screw
12WP691581 Whirlpool Actuator
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15Clip, Toe Panel
1649621 Whirlpool Leveling Feet
18Cabinet (Almond)
18Cabinet (Platinum)
18cabinet (toast)
18Cabinet (Harvest Wheat)
18Cabinet (White)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279740 Whirlpool Panel Primary with O/S2
21Panel Front (Toast)
21Panel Front (Almond)
21Panel Front (Platinum)
21Panel Front (Golden Harvest)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25W10906683 Whirlpool Door Seal
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
318528351 Whirlpool Clip
35WP695737 Whirlpool Door
36Door, Front (Platinum)
36WP3393549 Whirlpool Door Assembly
36Door, Front (Almond)
36door, front (harvest wheat)
36door, front (toast)
37Handle (Golden Harvest)
37WP348721 Whirlpool Handle
37Handle, Door (Platinum)
37Handle, Door (Toast)
37Handle (Almond)
38W11035878 Whirlpool Bearing and Seal
40Screw, Ground (10-24 x 1)
41Strap, Ground
44WPL 364089
45W11222083 Whirlpool Power Cord
46WP297092 Whirlpool Clip
49Toe Panel (Golden Harvest)
49Panel, Toe (Toast)
49Panel, Toe (White)
49Panel, Toe (Platinum)
49Panel, Toe (Almond)
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WPL 348946
60SCREW, SET
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
66279311 Whirlpool Dryer Flat Igniter with Bracket
67BURNER-GAS
68WPW10366705 Whirlpool Screw
69W10402145 Whirlpool LP Gas Connection
69Kit, Conversion Type 1 To Type 3 (MFD)
84WPL 688639
84WPL 688637
85WPL 343826
87341029 Whirlpool Clamp
89Wire, Ground (Motor)
93Connector (Door Switch)
93353424 Whirlpool Connector
94WP596797 Whirlpool Terminal
94WP94614 Whirlpool Terminal
