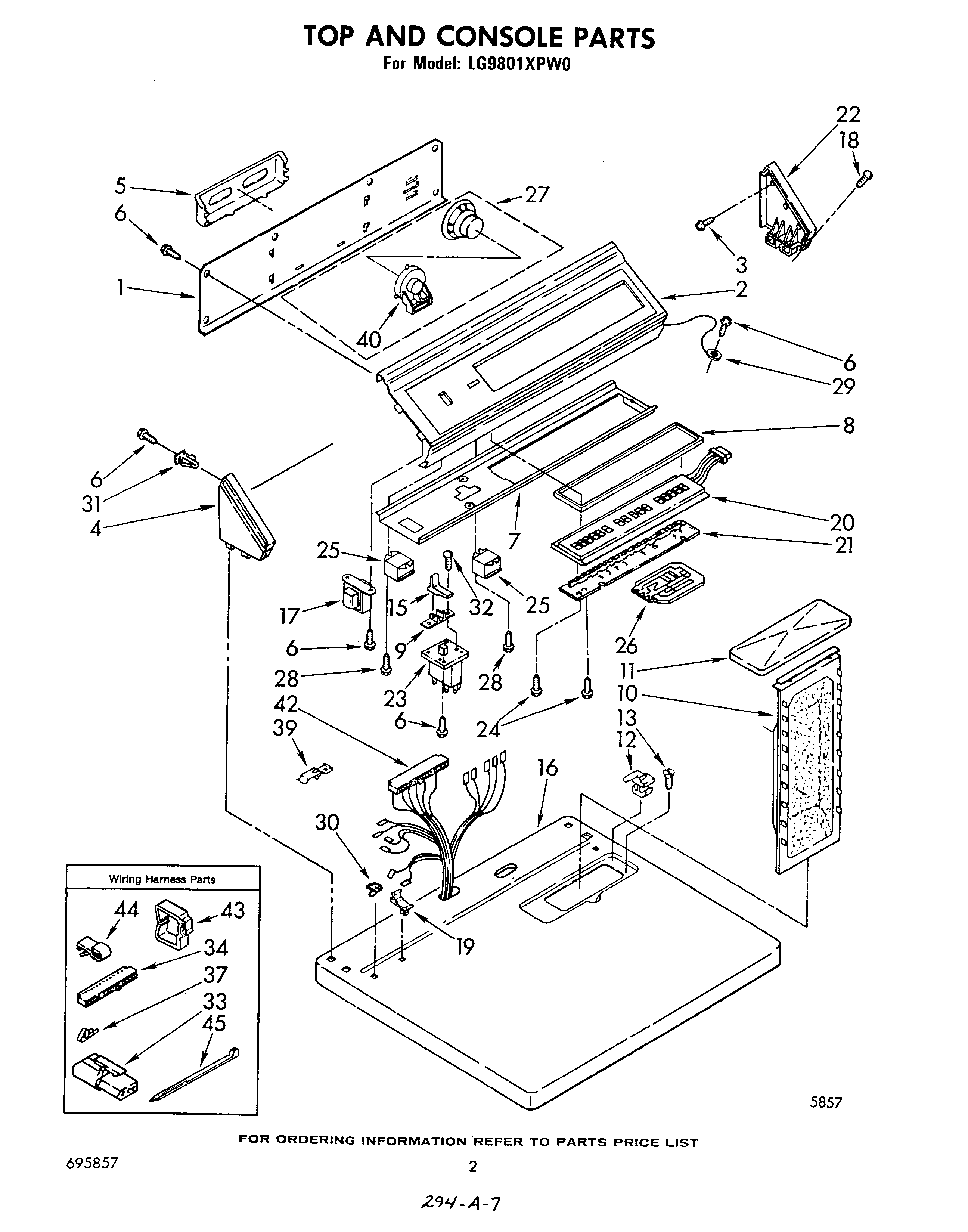

LG9801XPW0 02 – TOP AND CONSOLE, LITERATURE AND OPTIONAL

Products

PositionProduct
Platinum (Uncut)
Almond (Uncut)
Golden Harvest (Uncut)
799344 Whirlpool Refrigerator Paint
Enamal, Toast (1 Qt. Uncut)
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6WP489069 Whirlpool Compactor Screw
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16Top (Platinum)
16Top (White)
16Top (Almond)
16Top (Golden Harvest)
16Top (Toast)
17Transformer
18WPL 64211
19Stop, Push-In Top
20Module, Touch
21Display Assembly
22WPL 63795
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
27Speaker & Housing
28CamAlso Available (12-Pin (15 Min.))
29Wire, Ground
30Nut, Push-In (2)
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
33Receptacle, 3-Way Terminal (Use W/94614)
34Connector
37Terminal
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
42Harness, Wiring
43Clip, Harness (Rear Bulkhead Area)
44Clip, Retainer
45WPL 693686
45350930 Whirlpool White Spray Paint
45WPL 694125
45WPL 695857
45Leveler (Thinner)
45WP72107 Whirlpool Touchup
4572017 Whirlpool Appliance Touch-Up Paint White
45350956 Whirlpool Spray Assembly
45350938 Whirlpool Spray Gun
4572110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
45WPL 696233
4572113 Whirlpool Touch-Up Paint
45WPL 693849
45WPL 677821
45WPL 677818
45WPL 677813
45WPW10339879 Whirlpool Wire Tie
45WPL 677967
45WPL 72112
45Paint, Spray (13 Oz.) (Platinum)
45WPL 799351
45Golden Harvest
45Toast
