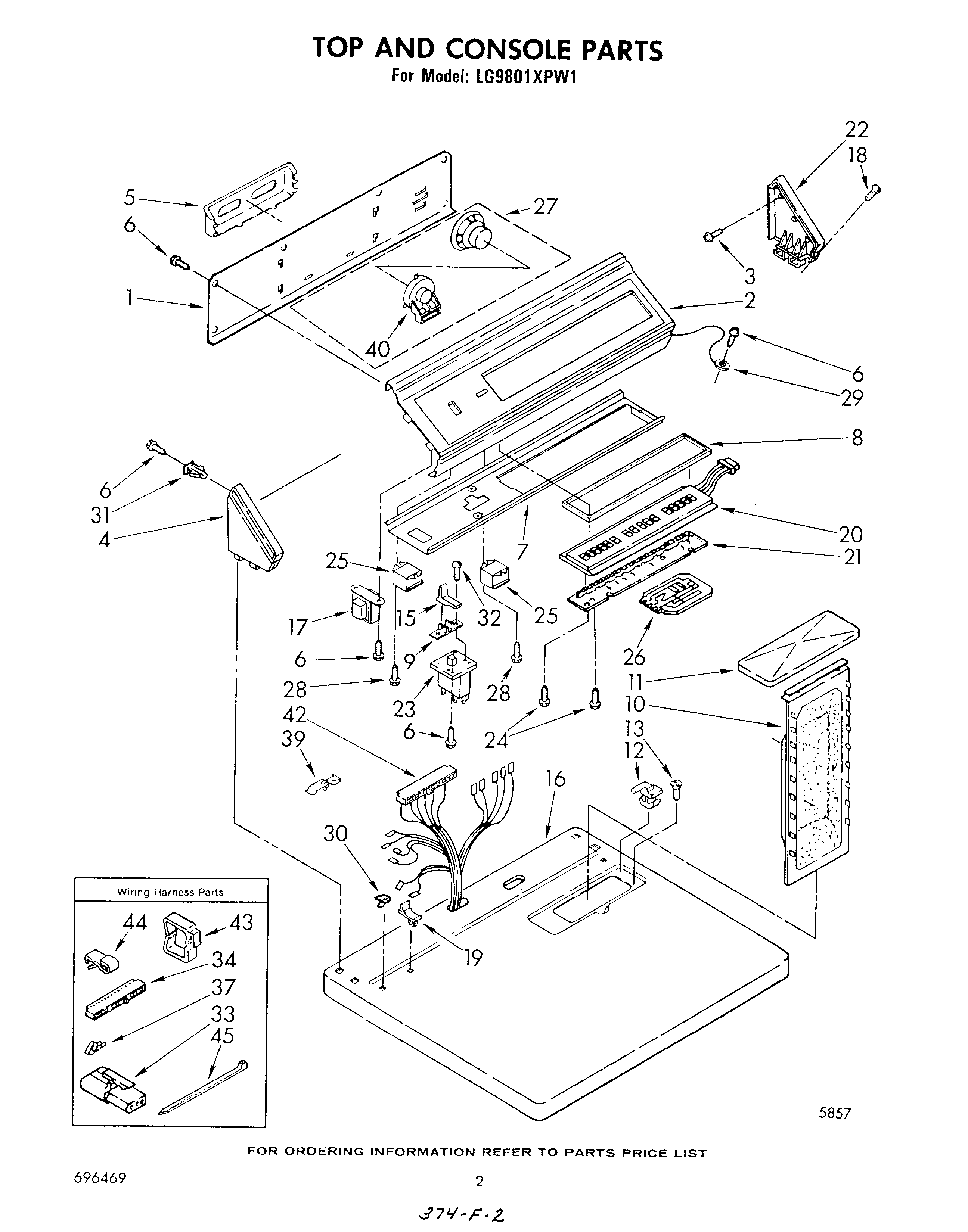

LG9801XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

LG9801XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Written by

in

LG9801XPW1 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT696469
Golden Harvest
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT694205
WPL LIT677967
Washer (Belt Drive)
Guide, Dryer
WPL LIT696233
WPL LIT693686
72113 Whirlpool Touch-Up Paint
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Dryer
350930 Whirlpool White Spray Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
Leveler (Thinner)
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6WP489069 Whirlpool Compactor Screw
7Bracket, Control
8Trim, Frame
9Pivot, Lever
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Lever
16Top (Almond)
16Top (Golden Harvest)
16Top (Platinum)
16Top (White)
16Top (Toast)
17Transformer
18WPL 64211
19Stop, Push-In Top
20Module, Touch
21Display Assembly
22WPL 63795
23Relay, Start-To-Stop
24Screw, 8-18 x 1/2 (6)
25Power Relay (2)
26Microcomputer Assembly
27Speaker & Housing
28WP90767 Whirlpool Screw
29Wire, Ground
30Nut, Push-In (2)
31WP689559 Whirlpool Nut
32WPW10068250 Whirlpool Dishwasher Screw
33Receptacle, 3-Way Terminal (Use W/94614)
34Connector
37Terminal
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
42Harness, Wiring
43Clip, Harness (Rear Bulkhead Area)
44Clip, Retainer
45WPW10339879 Whirlpool Wire Tie
