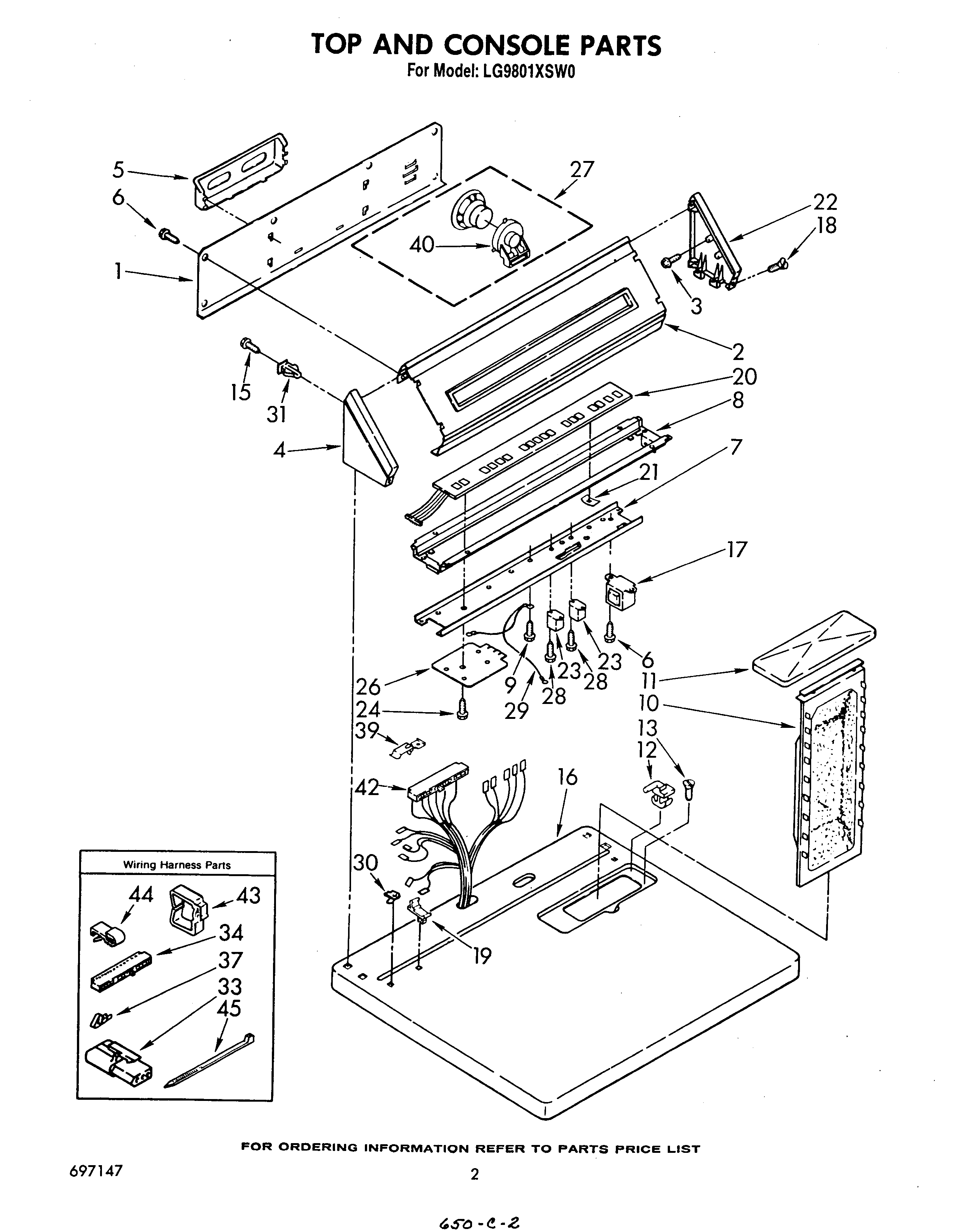

LG9801XSW0 02 – TOP AND CONSOLE , LITERATURE AND OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
72113 Whirlpool Touch-Up Paint
WPL LIT696233
Golden Harvest
WPL LIT3387071
Golden Harvest (Uncut)
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL 72112
Guide, Dryer
Washer (Belt Drive)
WPL LIT677967
Literature Parts (Do-It-Yourself Manual 07-03 Litho In U.S.A. (bd))
WPL LIT697147
Leveler (Thinner)
WP72107 Whirlpool Touchup
Almond (Uncut)
72017 Whirlpool Appliance Touch-Up Paint White
Dryer
799344 Whirlpool Refrigerator Paint
350956 Whirlpool Spray Assembly
350938 Whirlpool Spray Gun
WPL LIT697616
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
1Panel, Rear Console
2Panel, Control
3WPL 355326
4Cap, End (L.H.)
5Rack, Literature
6WP90767 Whirlpool Screw
7Bracket, Control
8Console, Bracket
9SCREW
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Platinum)
11Cover, Lint Screen (Toast)
11Cover, Lint Screen (Golden Harvest)
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15WP489069 Whirlpool Compactor Screw
16Top (White)
16Top (Almond)
16Top (Toast)
16Top (Golden Harvest)
16Top (Platinum)
17Transformer
18WPL 64211
19Stop, Push-In Top
20Module, Touch
21Nut (6)
22WPL 63795
23Motor Relay
24Screw,
26Microcomputer Assembly
27Speaker & Housing
28CamAlso Available (12-Pin (15 Min.))
29Wire, Ground
30Nut, Push-In (2)
31WP689559 Whirlpool Nut
33Receptacle, 3-Way Terminal (Use W/94614)
34Connector
37Terminal
39Clip, Wire (Tech Sheet/Top)
40WPL 359188
42Harness, Wiring
43Clip, Harness (Rear Bulkhead Area)
44Clip, Retainer
45WPW10339879 Whirlpool Wire Tie
