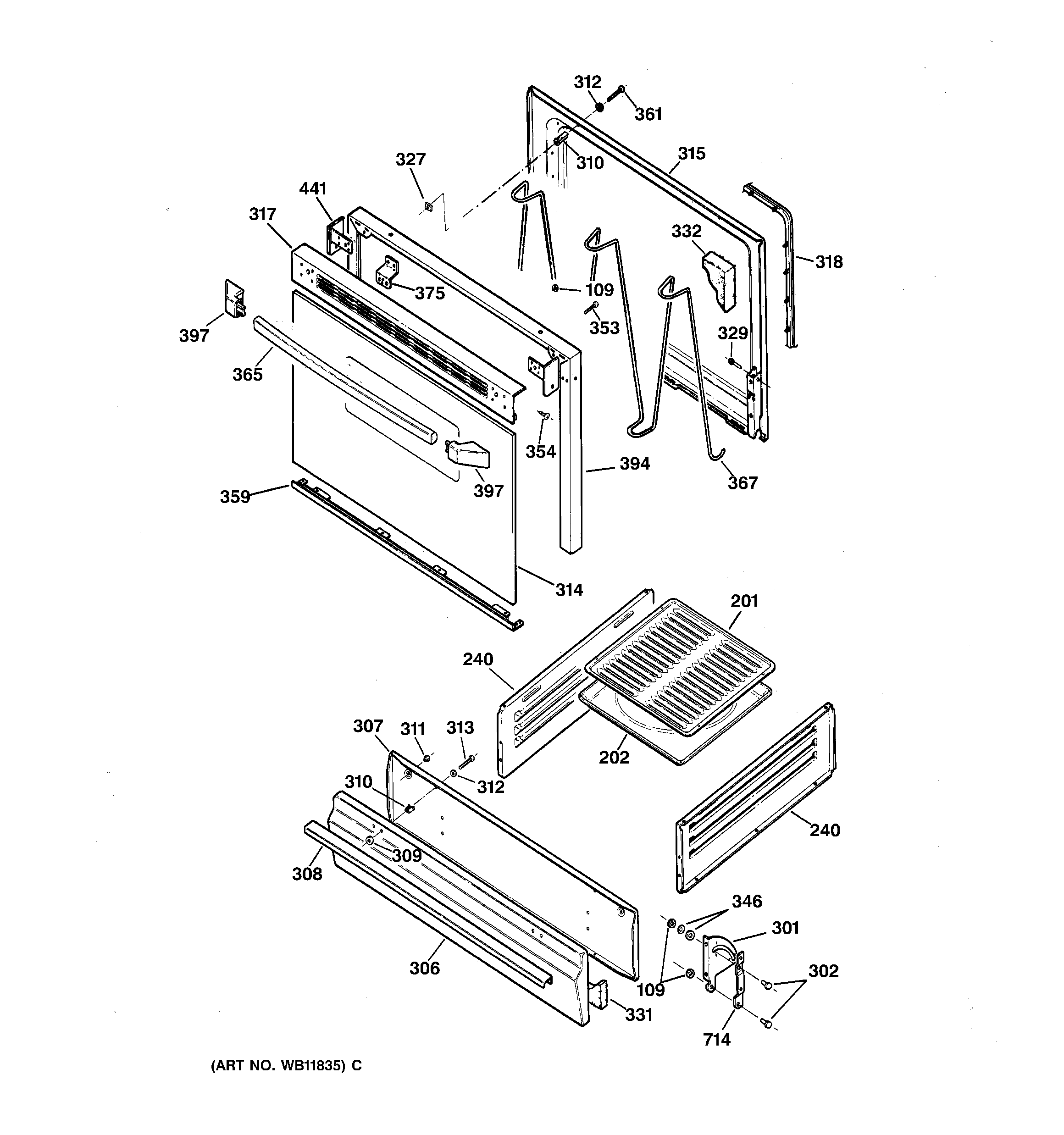

LGB116BPA1WH DOOR & DRAWER PARTS

LGB116BPA1WH DOOR & DRAWER PARTS

Written by

in

LGB116BPA1WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
201GEN WB48K0002
202GEN WB49K0002
240GEN WB63K0029
301GEN WB10K0011
301GEN WB10K0010
302WB1K7 GE Oven Broiler Pin
302GEN WB01K0040
306WB39K10 GE Oven Drawer Panel Black
307GEN WB39K0037
308GEN WB15K0015
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314GEN WB56K0031
315GEN WB55K0028
317GEN WB07K10070
318WB35X29720 GE Oven Door Gasket
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0004
346GEN WB01K0038
346WB1K39 GE Washer Spring
353WB01K10012 GE Oven Screw 8-22 PL 1HX
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
365WB15K5076 GE Oven Door Handle
367GEN WB33K0001
375CLIP WINDOW
394GEN WB07K0265
397WB7X7183 GE Oven Black Handle Endcap
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
