LGB116BPA5WH DOOR & DRAWER PARTS

LGB116BPA5WH DOOR & DRAWER PARTS

Written by

in

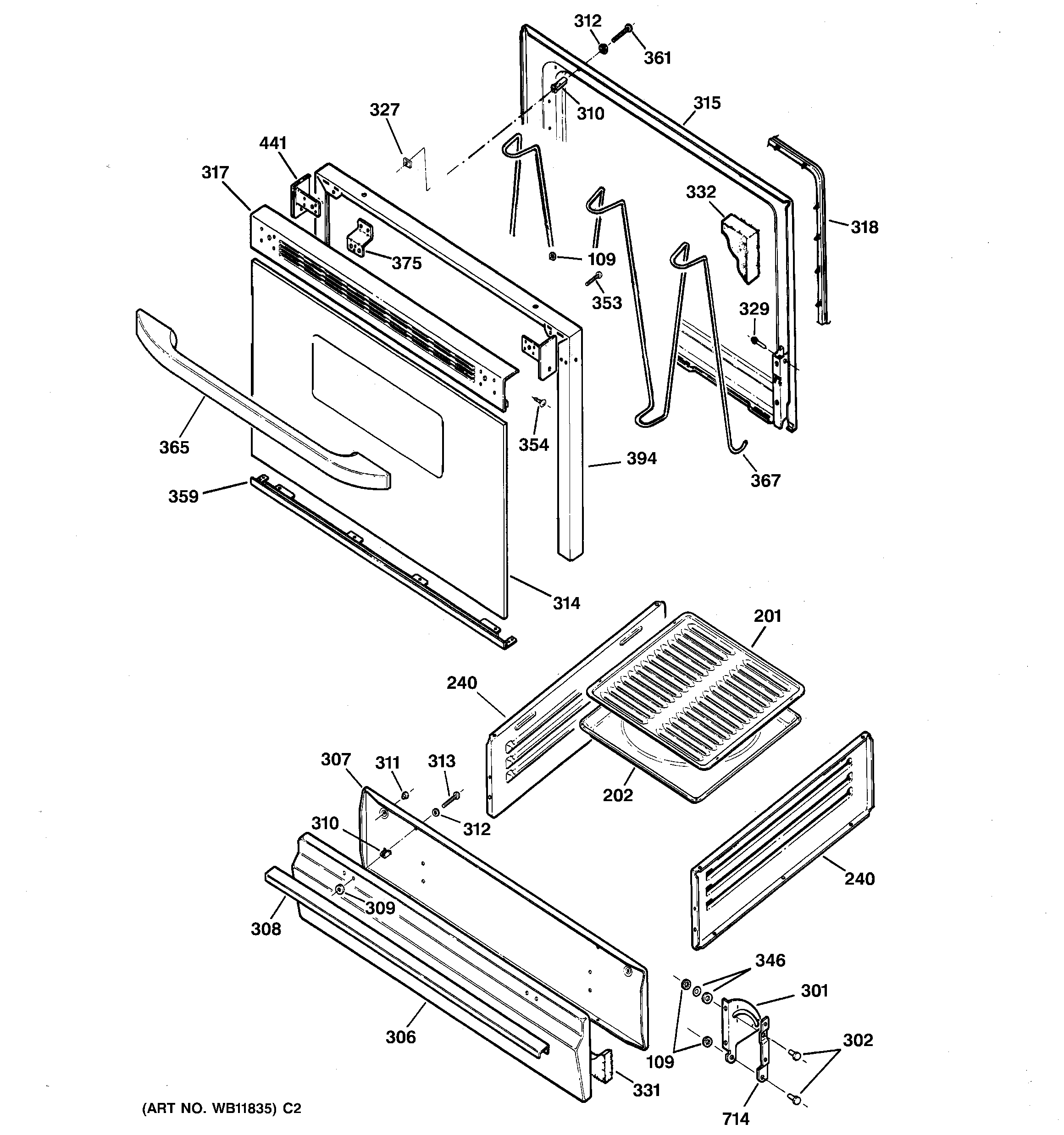

LGB116BPA5WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
202WB48X10056 GE Broil Pan Set, Large Porcelain
240GEN WB63K0029
301GEN WB10K0011
301GEN WB10K0010
302GEN WB01K0040
302WB1K7 GE Oven Broiler Pin
306GEN WB36K10274
307GEN WB39K10014
308GEN WB15K10034
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314GEN WB56K0031
315GEN WB55K0028
317GEN WB07K10070
318WB35X29720 GE Oven Door Gasket
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0004
346GEN WB01K0038
346WB1K39 GE Washer Spring
353WB1K67 GE Oven Screw 8-22
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1X5731D GE Oven Nut Package of 12
365WB15X10047 GE Range Oven Black Door Handle
367GEN WB33K0001
375WB02K10245 GE Oven Door Bracket
394GEN WB07K0265
441WB7K264 GE Oven Door Endcap
441WB7K263 GE Oven Door Endcap
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
