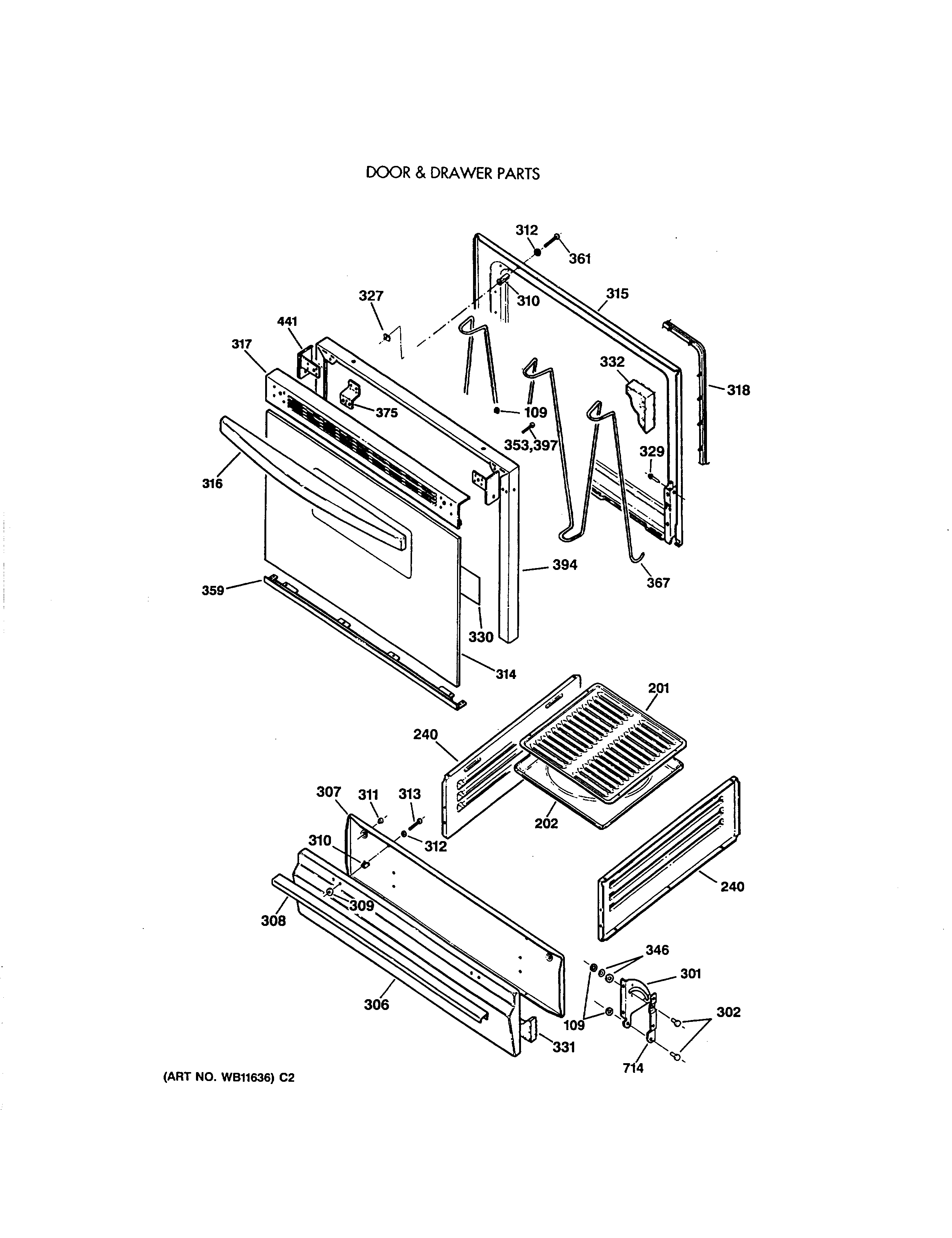

LGB116GPT2WH DOOR & DRAWER PARTS

LGB116GPT2WH DOOR & DRAWER PARTS

Written by

in

LGB116GPT2WH DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
109UNKNOWN
201GEN WB48K0002
202GEN WB49K0002
240GEN WB63K0029
301GEN WB10K0010
301GEN WB10K0011
302GEN WB01K0040
302WB1K7 GE Oven Broiler Pin
306UNKNOWN
307GEN WB39K0037
308GEN WB15K0015
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
313GEN WB01K0016
314GEN WB56K0031
315GEN WB55K0002
316UNKNOWN
317GEN WB07K0259
318WB35X29720 GE Oven Door Gasket
327WB01K10093 GE Oven Speednut
329WB1X558D GE Oven Screw Package
330GEN WB35K0021
331GEN WB35K0003
332GEN WB35K0004
346GEN WB01K0038
346WB1K39 GE Washer Spring
353WB1K67 GE Oven Screw 8-22
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1K63 GE Oven Screw
367GEN WB33K0001
375GEN WB02K0067
394GEN WB07K0265
397WB1K62 GE Oven Door Assembly
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
