LGB146BEA1AD CONTROL PANEL & COOKTOP

LGB146BEA1AD CONTROL PANEL & COOKTOP

Written by

in

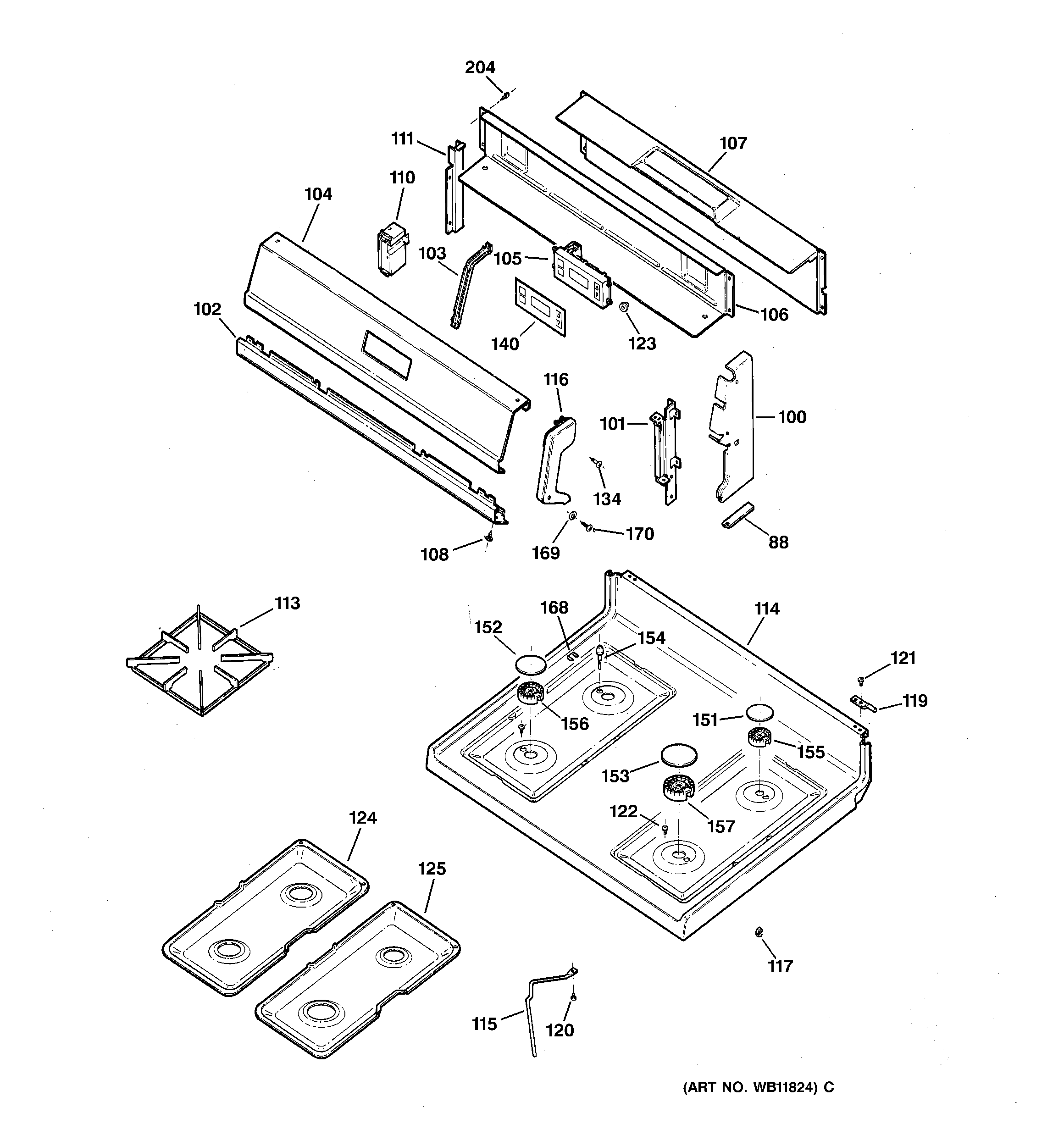

LGB146BEA1AD CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100COVER END LT (ALM)
100COVER END RT (ALM)
101GEN WB37K0018
101GEN WB37K0017
102GEN WB07K0005
103GEN WB37K0009
104GEN WB36K10087
105WB27T10469 GE Oven Timer Control Board
106WB34K10003 GE Upper Back Oven Cover
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
108SCREW MTG END CAP
110GEN WB13K0025
110HARNESS HV
111GEN WB34K0005
113WB31K10015 GE Oven Black Grate
114GEN WB62K10016
115WB2K91 GE Oven Top Support
116GEN WB07K0341
116GEN WB07K0340
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
122WB1K84 GE Oven Screw and
124GEN WB32K10014
125GEN WB32K10013
134GEN WB01K0075
140GEN WB11K0053
151CAP BURNER SMALL (BK)
152CAP BURNER MED (BK)
153GEN WB29K10010
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168WB01K10112 GE Range Oven Electrode Clip
169GEN WB01K0057
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
