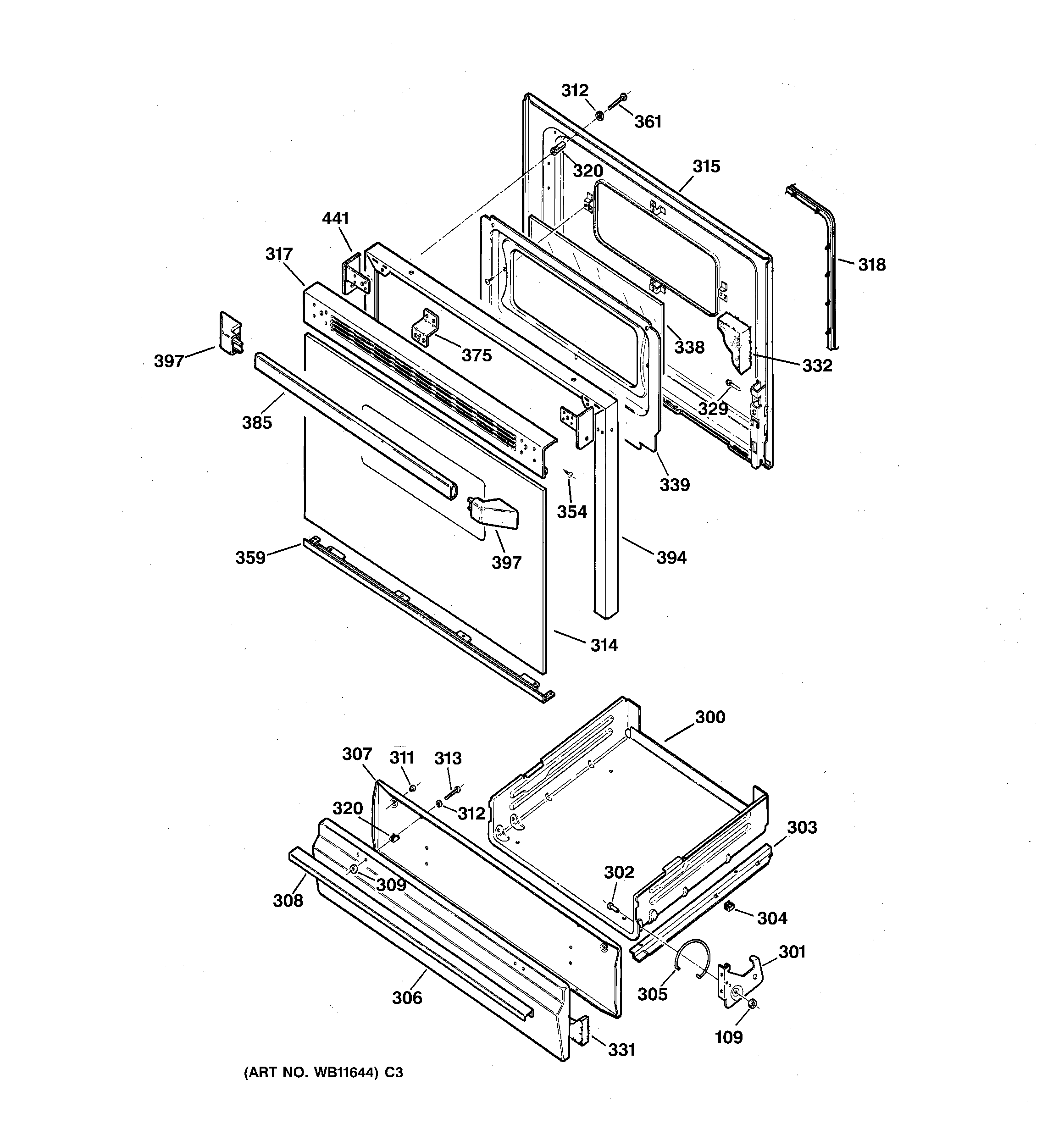

LGB146BEA2AD DOOR & DRAWER PARTS

LGB146BEA2AD DOOR & DRAWER PARTS

Written by

in

LGB146BEA2AD DOOR & DRAWER PARTS

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K5 GE Broil Oven Hinge
301WB10K6 GE Oven Broil Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0007
303GEN WB39K0008
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306WB39K10 GE Oven Drawer Panel Black
307GEN WB39K0005
308GEN WB15K0015
309WASHER
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314GEN WB57K0002
315GEN WB55K0021
317GEN WB07K10070
318WB35X29720 GE Oven Door Gasket
320WB2K14 GE Oven Spacer
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
354WB1K62 GE Oven Door Assembly
359WB07K10232 GE Oven Bottom Trim Assembly
361WB1K63 GE Oven Screw
361WB1X5731D GE Oven Nut Package of 12
375CLIP WINDOW
385WB15K5076 GE Oven Door Handle
394GEN WB07K0265
397WB7X7183 GE Oven Black Handle Endcap
441WB7K263 GE Oven Door Endcap
441WB7K264 GE Oven Door Endcap
