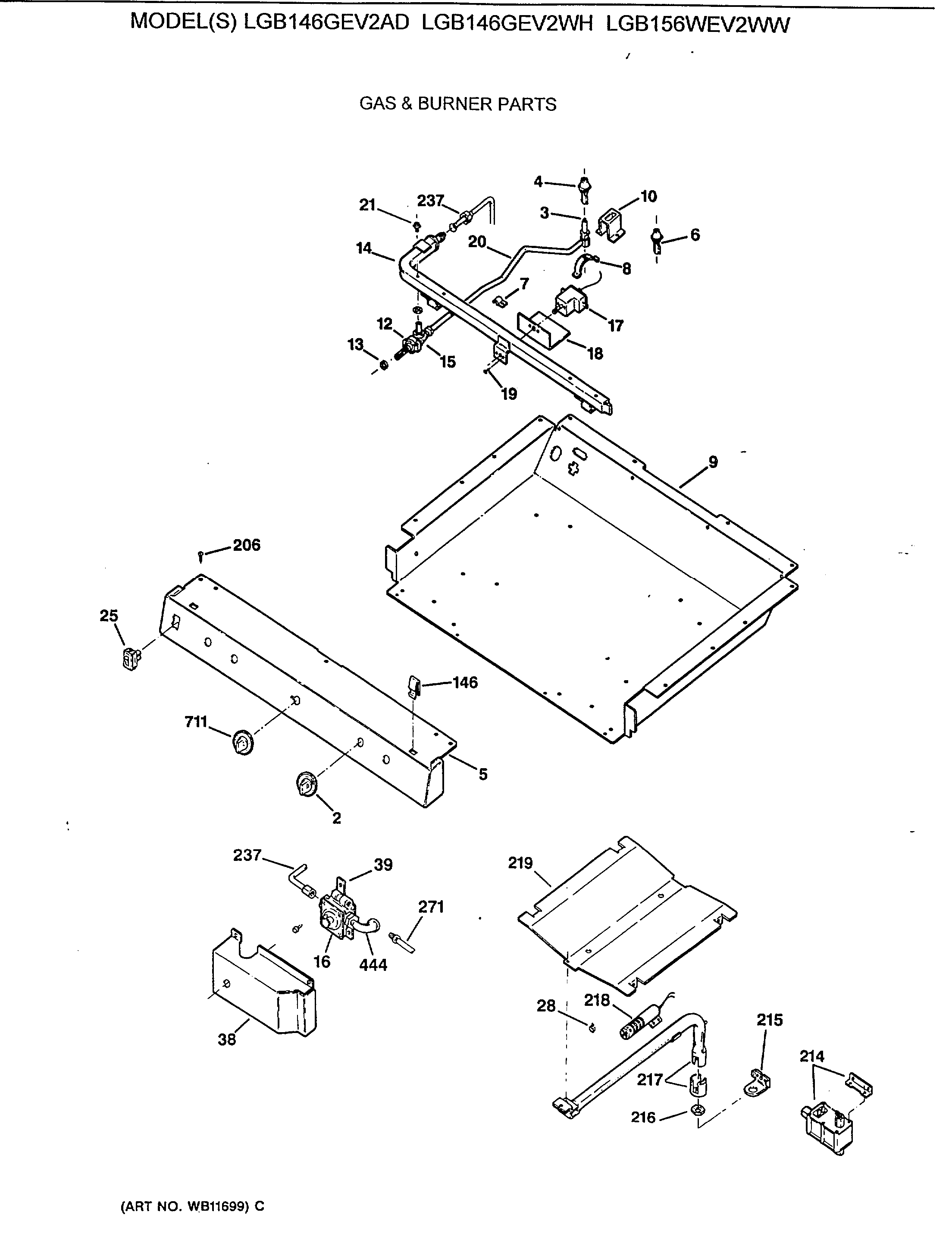

LGB146GEV2WH GAS & BURNER PARTS

LGB146GEV2WH GAS & BURNER PARTS

Written by

in

LGB146GEV2WH GAS & BURNER PARTS

Products

PositionProduct
1WB2K20 GE Oven Bracket Assembly
2KNOB SURFACE BURNER (BK)
3GEN WB28K0141
3GEN WB28K0142
3GEN WB28K0143
4GEN WB16K0013
5GEN WB36K0055
6GEN WB16K0014
7GEN WB02K0087
8GEN WB09K0007
9GEN WB63K0024
10GEN WB02K0061
10GEN WB01K0004
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0066
15GEN WB21K0020
15WB21K12 GE Oven Burner Control Valve
15GEN WB21K0021
16GEN WB19K0028
16GEN WB19K0026
17WB20K8 GE Oven Thermostat Temperature Control
17GEN WB20K0002
18COVER THERMOSTAT
19WB1K8 GE Oven Thermostat Screw
20GEN WB28K0095
20GEN WB28K0096
20GEN WB28K0097
20GEN WB28K0098
21WB1K83 GE Oven Screw
22GEN WB19K0005
23GEN WB02K0021
24GEN WB01K0011
25GEN WB24K0003
28WB2X9154 GE Oven Igniter with 8" Leads
28WB1X1293 GE Oven Screw
38GEN WB34K0029
39GEN WB02K0088
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K13 GE Oven Safety Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
217GEN WB16K0018
219OVEN DEFLECTOR
237GEN WB28K0148
239GEN WB63K0001
250GEN WB53K0010
257GEN WB38K0004
258GEN WB38K0003
271GEN WB28K0149
299WB1K43 GE Oven Support Bracket
302GEN WB01K0040
321WB1X5731D GE Oven Nut Package of 12
327WB01K10093 GE Oven Speednut
444GEN WB28K0061
461WB1X536 GE Oven Screw
711THERMOSTAT KNOB (BK)
712WB1K37 GE Oven Screw
713WB39K33 GE Support
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
