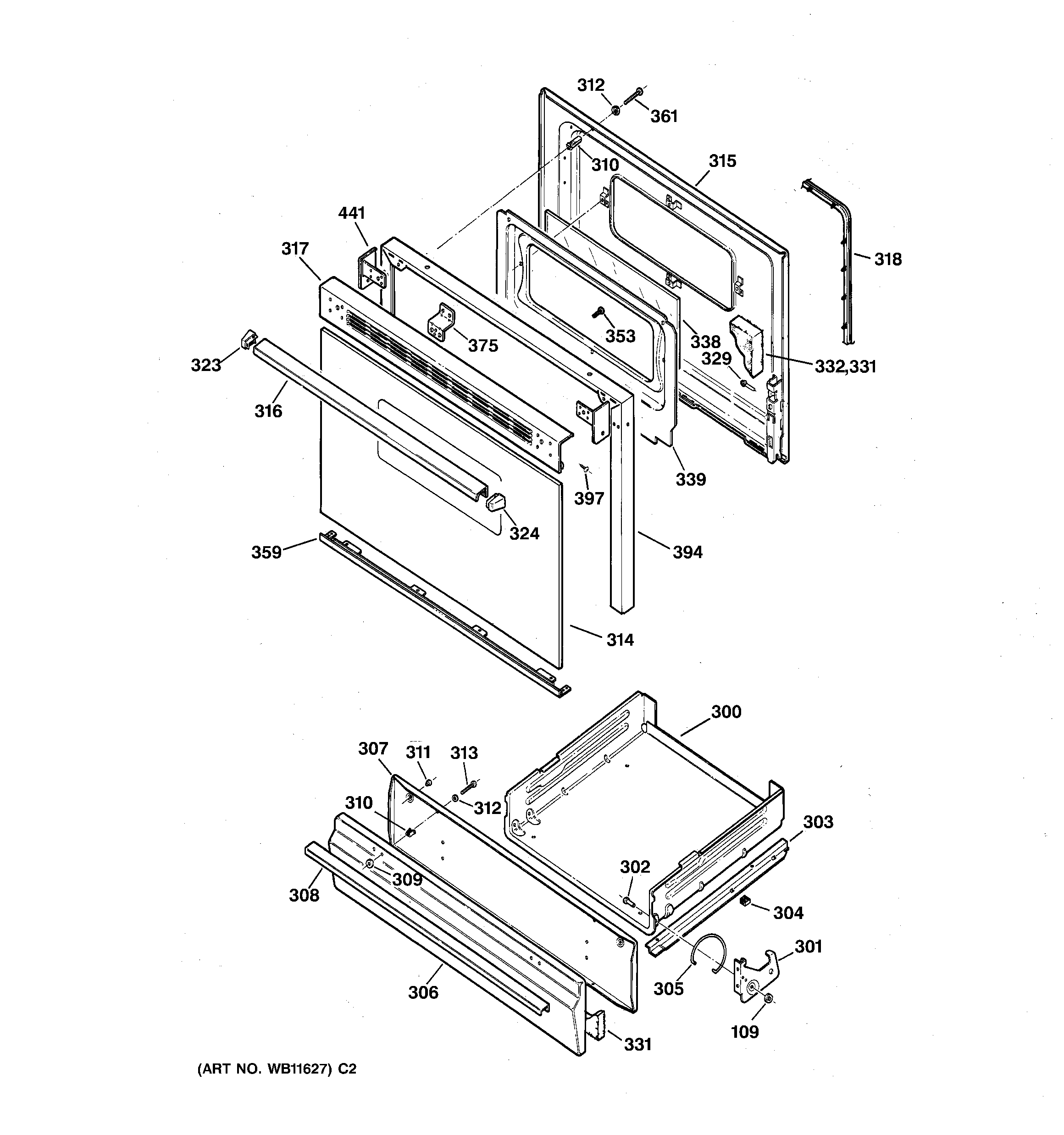

LGB156WEV3WW DOOR & DRAWER

LGB156WEV3WW DOOR & DRAWER

Written by

in

LGB156WEV3WW DOOR & DRAWER

Products

PositionProduct
109GEN WB01X5743
300WB39K6 GE Oven Broil Weld
301WB10K6 GE Oven Broil Hinge
301WB10K5 GE Broil Oven Hinge
302WB1K7 GE Oven Broiler Pin
303GEN WB39K0008
303GEN WB39K0007
304WB39K9 GE Oven Broiler Slide
305WB9K3 GE Oven Broil Spring
305GEN WB09K0002
306GEN WB39K0013
307GEN WB39K0005
308GEN WB15K0017
309WASHER
310WB2K14 GE Oven Spacer
311WB2K15 GE Oven Grate Bumper
312WB1X119D GE Oven Range Washer
314WB57K3 GE Oven Outer Door Glass White
314PAD
315GEN WB55K0006
316GEN WB15K0025
317GEN WB07K0406
318WB35X29720 GE Oven Door Gasket
329WB1X558D GE Oven Screw Package
331GEN WB35K0003
332GEN WB35K0005
338WB56K5 GE Oven Crystal Wind
339WB56K10032 GE Oven Guard Insulation Assembly
353WB1X5731D GE Oven Nut Package of 12
359TRIM BOTTOM ASM
361WB1K63 GE Oven Screw
375GEN WB02K0067
394GEN WB07K0268
397GEN WB07K5338
397GEN WB07K5339
397WB1K66 GE Screw
441WB7K266 GE Oven Door End Cap
