LGB336GEV2WH CONTROL PANEL & COOKTOP

LGB336GEV2WH CONTROL PANEL & COOKTOP

Written by

in

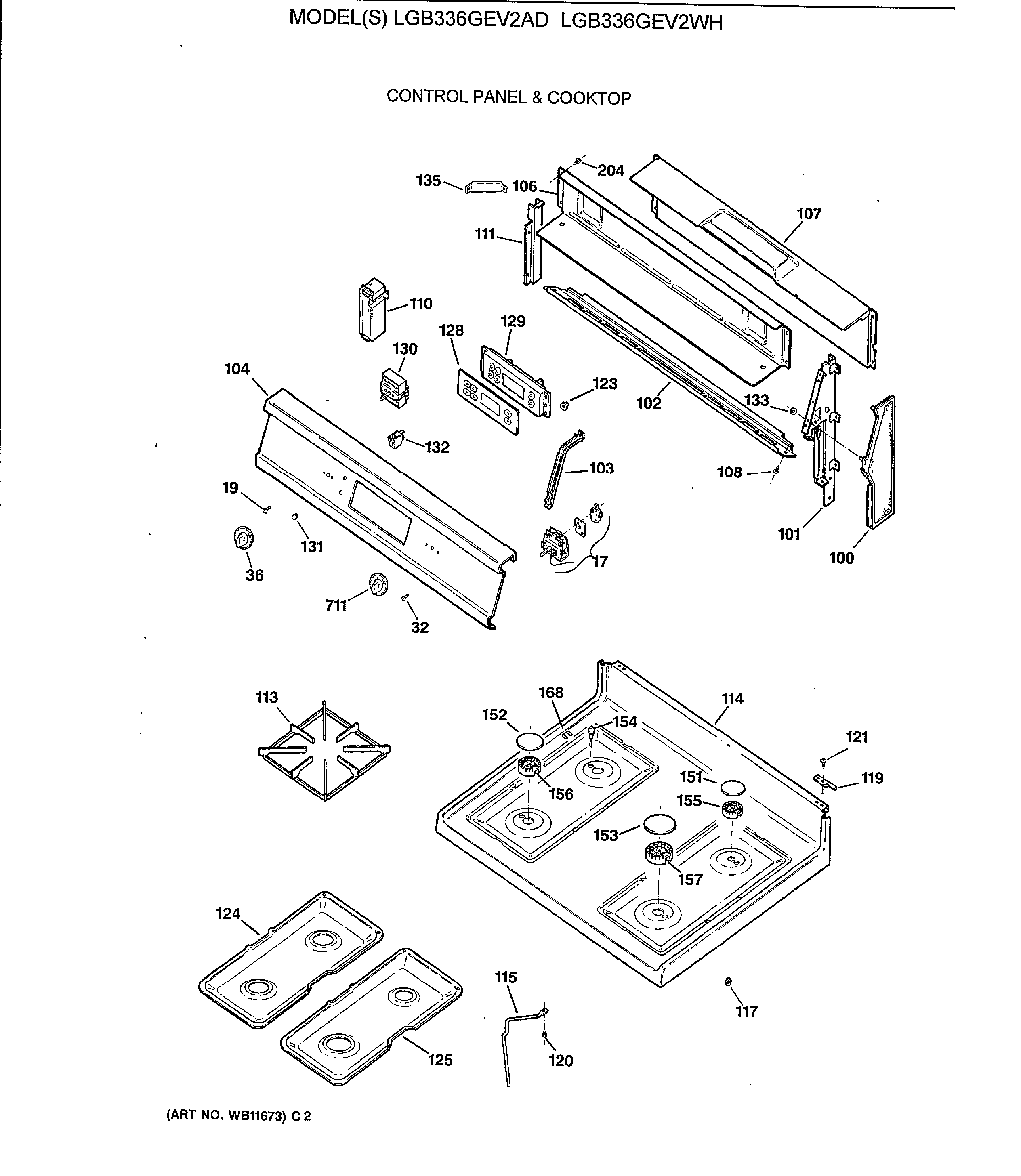

LGB336GEV2WH CONTROL PANEL & COOKTOP

Products

PositionProduct
17GEN WB20K0003
19WB1K8 GE Oven Thermostat Screw
32GEN WB01K0017
36GEN WB03K0068
100COVER END RIGHT (BK)
100COVER END LFT (BK)
101GEN WB37K0011
101GEN WB37K0012
102GEN WB07K0005
103GEN WB37K0016
104TRIM CONTROL (BK)
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K0025
110HARNESS HV
111GEN WB34K0005
113GEN WB31K0046
114GEN WB62K0026
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
121WB1K5119 GE Oven Screw
123GEN WB01K0082
125GEN WB32K0009
128GEN WB11K0021
129GEN WB12K0020
130GEN WB24K0005
131GEN WB25K0004
132GEN WB25K0003
133GEN WB01K0022
135GEN WB37K0010
143SCREW MTG END CAP
151CAP BURNER SMALL (BK)
152CAP BURNER MED (BK)
153CAP BURNER LG (BK)
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157BURNER HEAD-LG
168ELECTRODE CLIP
711GEN WB03K0070
752WZ4X345D GE Screw Package 12 C92
