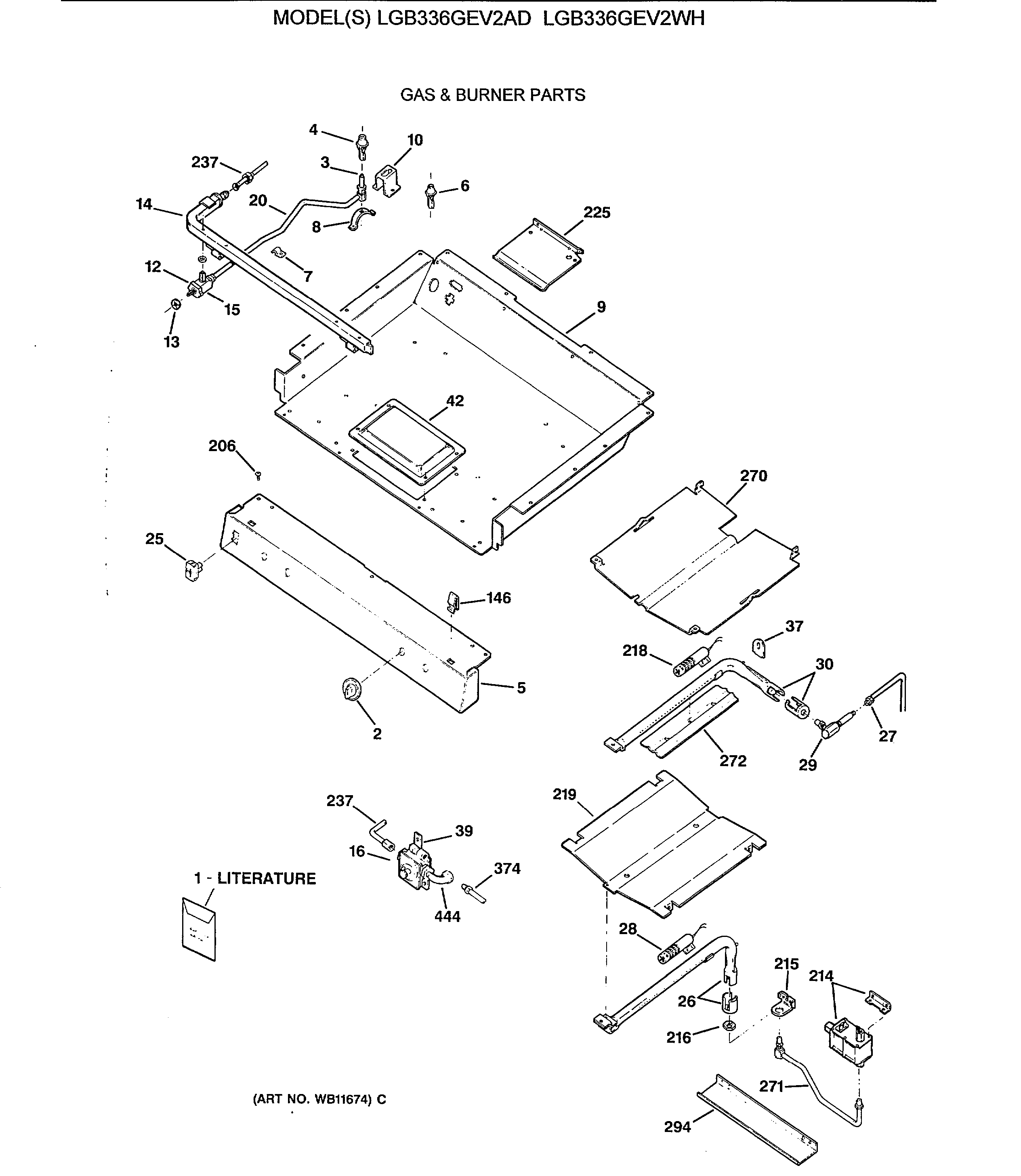

LGB336GEV2WH GAS & BURNER PARTS

Products

PositionProduct
1WB2K20 GE Oven Bracket Assembly
2KNOB SURFACE BURNER (BK)
3GEN WB28K0143
3GEN WB28K0141
3GEN WB28K0142
4GEN WB16K0013
5GEN WB36K0078
6GEN WB16K0014
7GEN WB02K0087
8GEN WB09K0007
10GEN WB02K0061
10GEN WB01K0004
12GEN WB24K0014
13WB2K24 GE Oven Valve Cover
14GEN WB28K0065
15GEN WB21K0021
15GEN WB21K0020
15WB21K12 GE Oven Burner Control Valve
16GEN WB19K0026
16GEN WB19K0028
17GEN WB20K0002
20GEN WB28K0096
20GEN WB28K0095
20GEN WB28K0097
20GEN WB28K0098
21WB1K83 GE Oven Screw
22GEN WB19K0005
23GEN WB02K0021
24GEN WB01K0011
25GEN WB24K0003
26GEN WB16K0022
27GEN WB28K0055
28WB1X1293 GE Oven Screw
29GEN WB28K0030
30GEN WB16K0008
37WB34K14 GE Igniter Cover
39GEN WB02K0088
42GEN WB63K0022
146GEN WB02K0052
206WR01X10065 GE Screw
214WB19K14 GE Oven Control Valve
215WB2K65 GE Oven SAF Valve Bracket
216GEN WB01K0006
218WB2X9154 GE Oven Igniter with 8" Leads
219OVEN DEFLECTOR
225GEN WB34K0002
237GEN WB28K0148
239GEN WB63K0001
241RANGE BOTTOM
242GEN WB63K0005
246GEN WB63K0031
247GEN WB53K0001
250GEN WB53K0010
251WB2K3 GE Angle Support
257GEN WB38K0004
258GEN WB38K0003
270GEN WB34K0009
271GEN WB28K0202
271GEN WB28K0060
272WB34K10 GE Oven Broil Shield
294GEN WB63K0019
299WB1K43 GE Oven Support Bracket
302WB1K7 GE Oven Broiler Pin
302GEN WB01K0040
374GEN WB28K0150
391GEN WB34K0026
444GEN WB28K0061
461WB1X536 GE Oven Screw
712WB1K37 GE Oven Screw
713WB39K33 GE Support
714WB39K34 GE Oven Broil Support Right
714WB39K35 GE Oven Left Hand Broil Support
