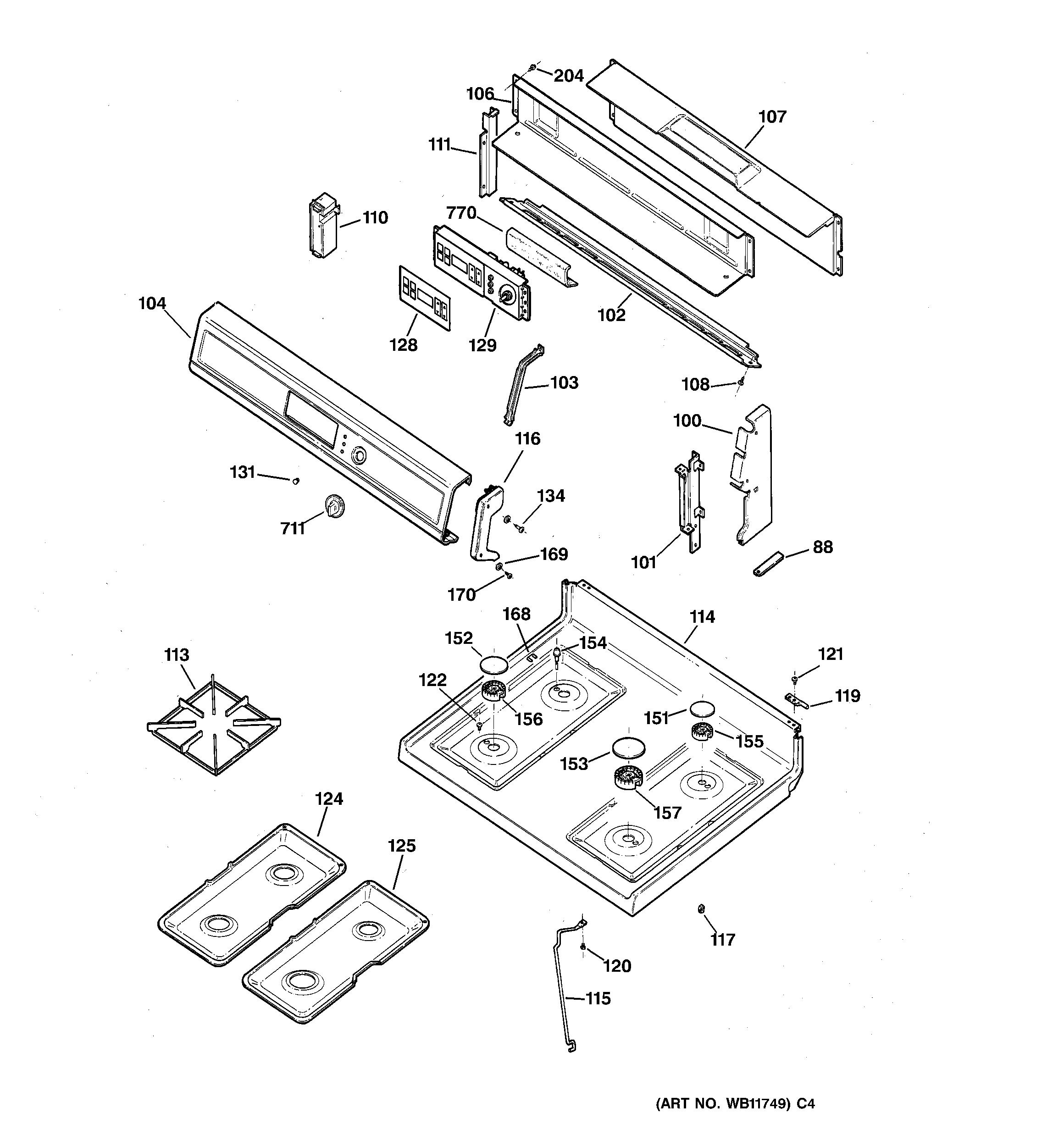

LGB356BEA1WH CONTROL PANEL & COOKTOP

LGB356BEA1WH CONTROL PANEL & COOKTOP

Written by

in

LGB356BEA1WH CONTROL PANEL & COOKTOP

Products

PositionProduct
88GEN WB02K0085
100GEN WB07K10071
100GEN WB07K10072
101GEN WB37K0017
101GEN WB37K0018
102GEN WB07K0005
103GEN WB37K0009
104GEN WB36K10129
106WB34K10003 GE Upper Back Oven Cover
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
110GEN WB13K0025
110HARNESS HV
111GEN WB34K0005
113WB31K10016 GE Oven Grate Black
114GEN WB62K10017
115WB2K91 GE Oven Top Support
116GEN WB07K0340
116GEN WB07K0341
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB1K84 GE Oven Screw and
124GEN WB32K10014
125GEN WB32K10013
128GEN WB27K10022
129WB27K10140 GE Oven Control T08-2K
131WB25T10041 GE Oven Lens
134GEN WB01K0075
151CAP BURNER SMALL (BK)
152CAP BURNER MED (BK)
153GEN WB29K10010
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157GEN WB16K10012
168ELECTRODE CLIP
169GEN WB01K0057
170GEN WB01X5716
204WB1K5062 GE Oven Screw
204WZ4X345D GE Screw Package 12 C92
711GEN WB03K10057
770GEN WB35K10004
