LGB356WEW3WW CONTROL PANEL & COOKTOP

LGB356WEW3WW CONTROL PANEL & COOKTOP

Written by

in

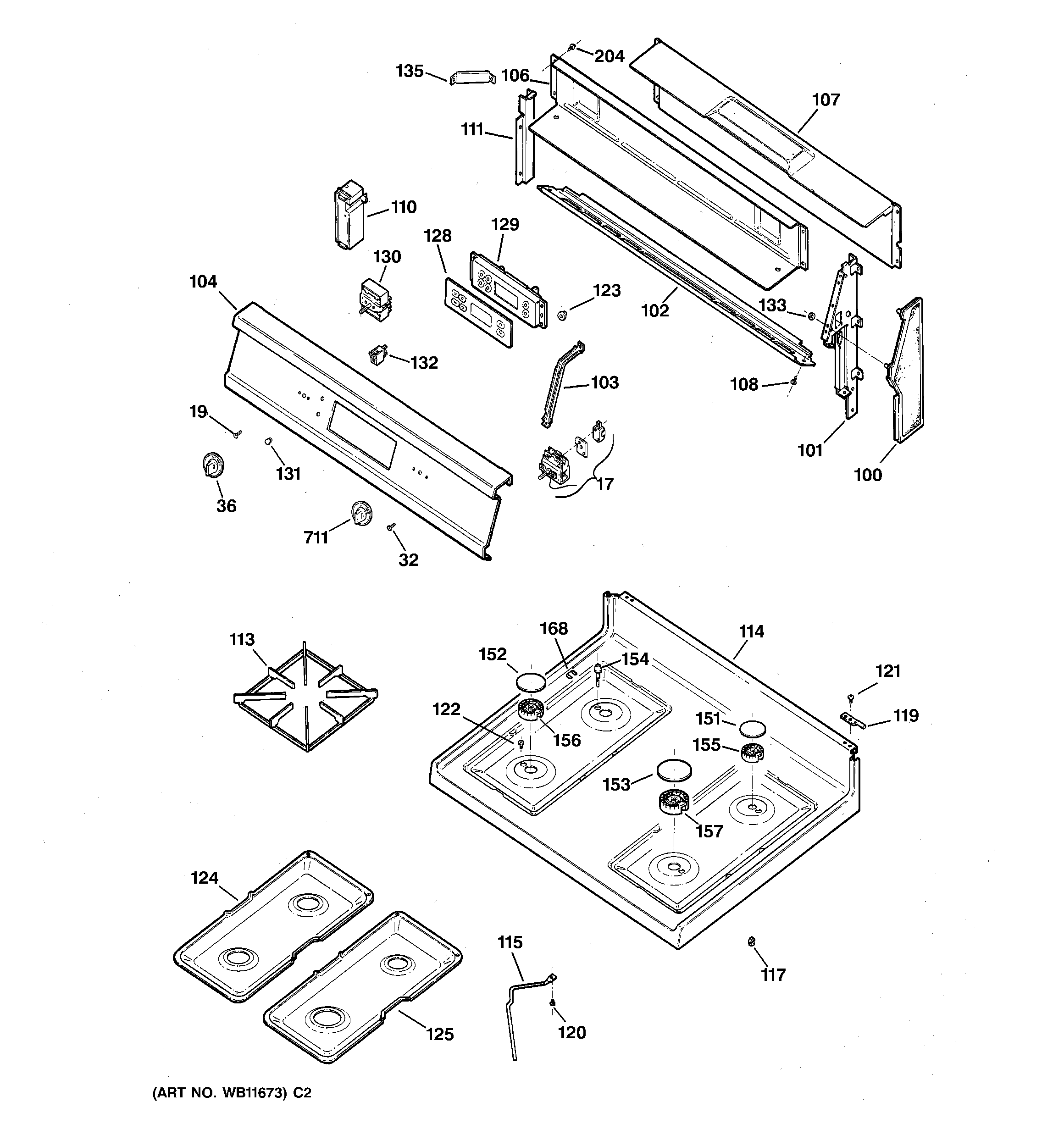

LGB356WEW3WW CONTROL PANEL & COOKTOP

Products

PositionProduct
17GEN WB20K0003
19WB1K8 GE Oven Thermostat Screw
32GEN WB01K0017
36GEN WB03K0101
100GEN WB07K0270
100GEN WB07K0269
101GEN WB37K0011
101GEN WB37K0012
102GEN WB07K0005
103GEN WB37K0016
104GEN WB36K0108
106GEN WB36K0017
107GEN WB36K0002
108WB1X5364 GE Oven Mounting Screw
110HARNESS HV
110GEN WB13K0025
111GEN WB34K0005
113GEN WB31K0025
114GEN WB62K0064
115WB2K91 GE Oven Top Support
117GEN WB02K0017
119WB14K5 GE Oven Hinge Pin
120WB1K45 GE Oven Screw and Washer Assembly
121WB1K5119 GE Oven Screw
122WB1K84 GE Oven Screw and
123GEN WB01K0082
124GEN WB32K0016
125GEN WB32K0015
128GEN WB11K0032
129GEN WB12K0020
130GEN WB24K0005
131GEN WB25K0004
132GEN WB25K0003
133GEN WB01K0022
135GEN WB37K0010
143GEN WB01X5874
151GEN WB29K0042
152GEN WB29K0045
153CAP BURNER LG (GRAY)
154WB13K18 GE Oven Electrode
155BURNER HEAD-SM
156BURNER HEAD-MED
157BURNER HEAD-LG
168ELECTRODE CLIP
204WB1K5062 GE Oven Screw
711GEN WB03K0102
752WZ4X345D GE Screw Package 12 C92
