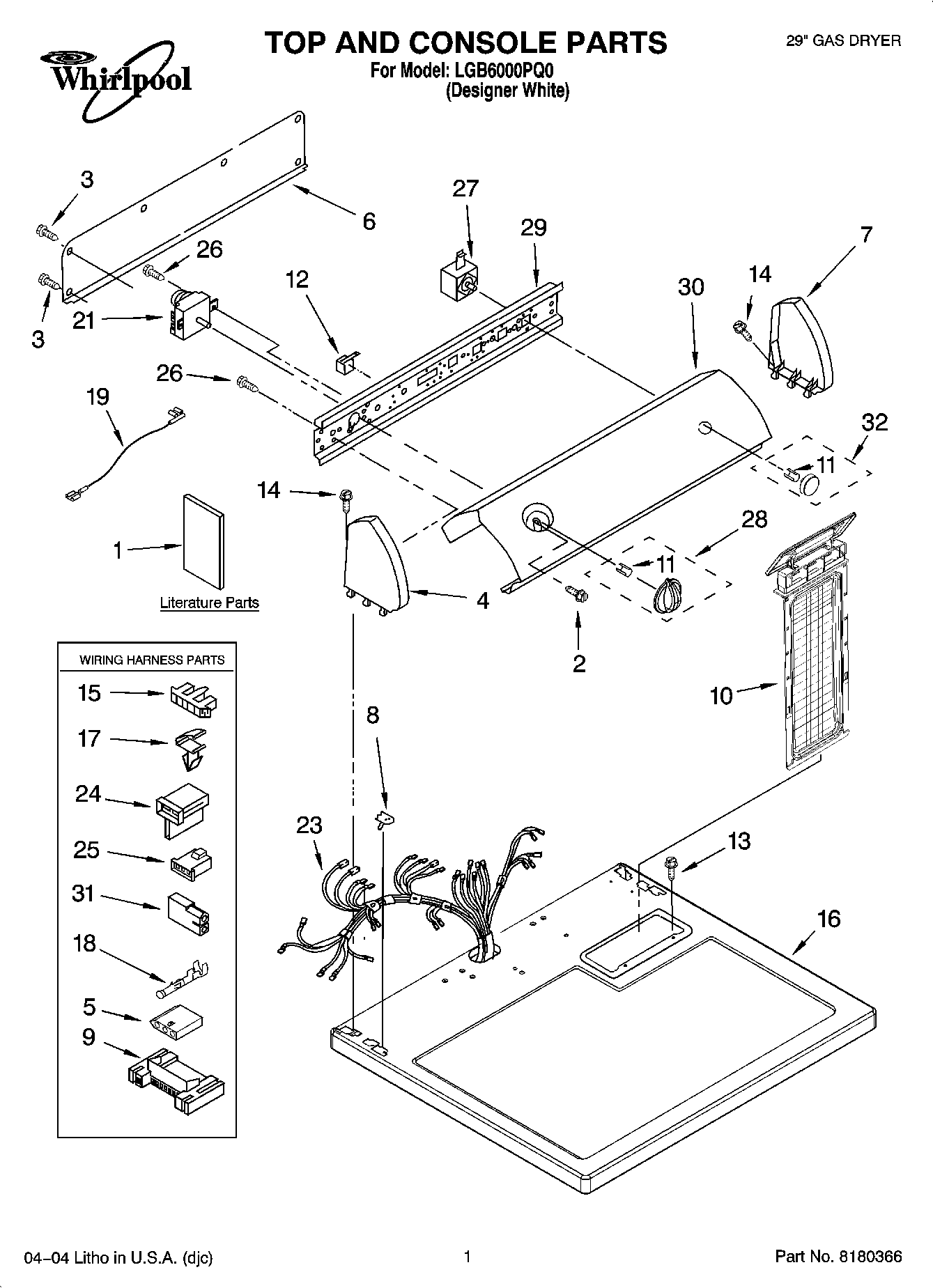

LGB6000PQ0 01 – TOP AND CONSOLE PARTS

LGB6000PQ0 01 – TOP AND CONSOLE PARTS

Written by

in

LGB6000PQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Dryer
1Literature Parts (Label, Wiring Diagram)
1Literature Parts (Sheet, Cycle Feature)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions)
1Following May Be Purchased
1DO-IT-YOURSELF REPAIR MANUALS
23400859 Whirlpool Screw
3WP693995 Whirlpool Screw
53936144 Whirlpool Connector
6W10103406 Whirlpool Rear Panel
7W10820038 Whirlpool Endcap
8WP357213 Whirlpool Hinge Stopper
93395683 Whirlpool Connector
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP694419 Whirlpool Buzzer Adjuster
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
15Connector, Timer
16Top
17WP3394427 Whirlpool Clip
18WP94614 Whirlpool Terminal
19Wire, Jumper (Blue)
19Wire, Jumper (Black)
21WP3976584 Whirlpool Timer Assembly
23Harness, Wiring
24WP3403499 Whirlpool Connector
25WP3403498 Whirlpool Connector
26WPW10139210 Whirlpool Screw
27WP3977456 Whirlpool Start Switch
28W10756270 Whirlpool Dryer Timer Knob
29Bracket, Control
30Panel, Control
31Receptacle, Latching (2-Way) (Uses Terminal 94614)
32WP8544939 Whirlpool Knob Assembly
32350938 Whirlpool Spray Gun
32KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
3272017 Whirlpool Appliance Touch-Up Paint White
32799344 Whirlpool Refrigerator Paint
32350930 Whirlpool White Spray Paint
32WP689790 Whirlpool Dryer Rack
32W11224254 Whirlpool Test Kit
324392065 Whirlpool Dryer Maintenance Kit
32WPL ARI156751A
