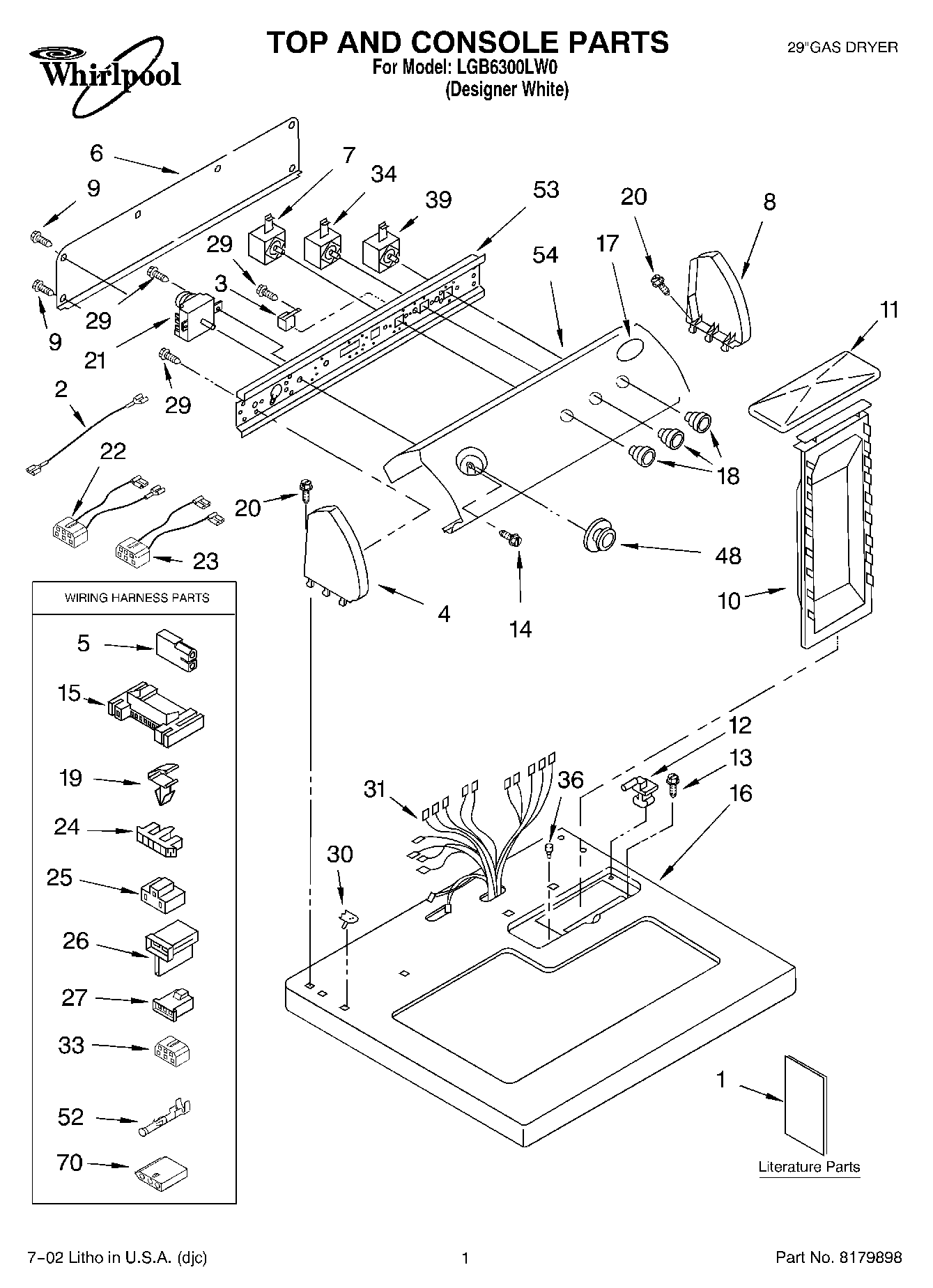

LGB6300LW0 01 – TOP AND CONSOLE, LITERATURE

LGB6300LW0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGB6300LW0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
2Wire, Jumper (Black)
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7WP3399639 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17Medallion
18KNOB
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP8299766 Whirlpool Timer Assembly
223397695 Whirlpool Wire Harness
238539893 Whirlpool Wire Harness
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
318299879 Whirlpool Wire Harness
33Block, Disconnect
34WP3405156 Whirlpool Switch
36Bumper, Lint Lid
39WP3398095 Whirlpool Dryer Start Relay
48WP8557455 Whirlpool Knob Timer
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (Includes Illus. 17)
70350938 Whirlpool Spray Gun
7072017 Whirlpool Appliance Touch-Up Paint White
70350930 Whirlpool White Spray Paint
703936144 Whirlpool Connector
703406839 Whirlpool Drying Rack
70799344 Whirlpool Refrigerator Paint
704392065 Whirlpool Dryer Maintenance Kit
70W11224254 Whirlpool Test Kit
70KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
