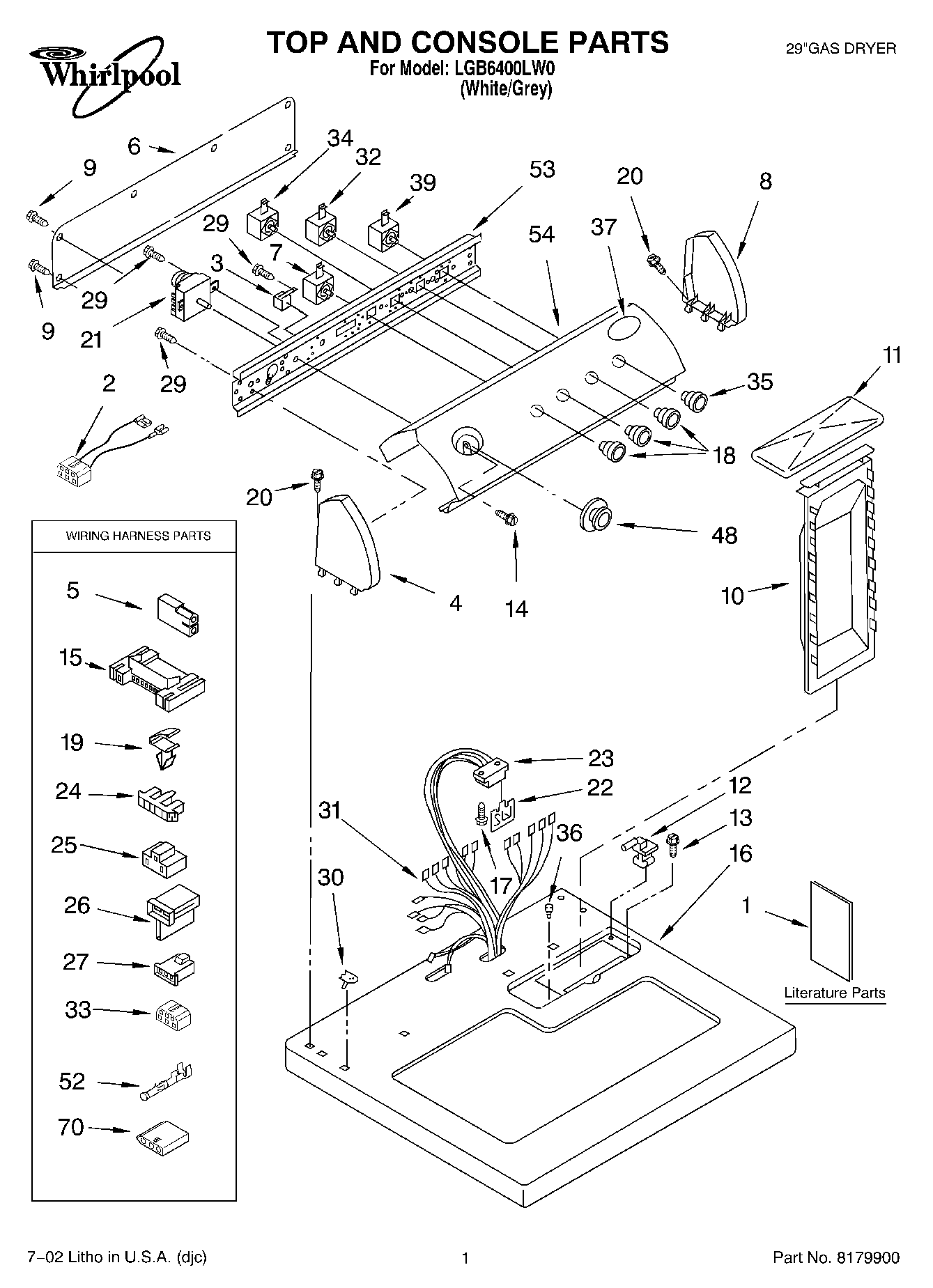

LGB64000LW0 01 – TOP AND CONSOLE, LITERATURE

LGB64000LW0 01 – TOP AND CONSOLE, LITERATURE

Written by

in

LGB64000LW0 01 – TOP AND CONSOLE, LITERATURE

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Wiring Diagram)
23401695 Whirlpool Wire Harness
3WP694419 Whirlpool Buzzer Adjuster
5Receptacle, Latching (2-Way) (Uses Terminal 94614)
6W10103406 Whirlpool Rear Panel
7W11106324 Whirlpool Switch
8W10820038 Whirlpool Endcap
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
153395683 Whirlpool Connector
16Top
17SCREW
18KNOB
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3406725 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
24Connector, Timer
253401144 Whirlpool Connector
26WP3403499 Whirlpool Connector
27WP3403498 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
323405152 Whirlpool Switch Assembly
33Block, Disconnect
343405154 Whirlpool Primary Switch
35Knob, Push-To-Start (LGR5636LW0)
36Bumper, Lint Lid
37Medallion
39WP3398094 Whirlpool Push To Start Switch
48WP8557455 Whirlpool Knob Timer
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Co
55350938 Whirlpool Spray Gun
5572017 Whirlpool Appliance Touch-Up Paint White
55350930 Whirlpool White Spray Paint
55W11224254 Whirlpool Test Kit
553406839 Whirlpool Drying Rack
55799344 Whirlpool Refrigerator Paint
55KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
554392065 Whirlpool Dryer Maintenance Kit
553936144 Whirlpool Connector
