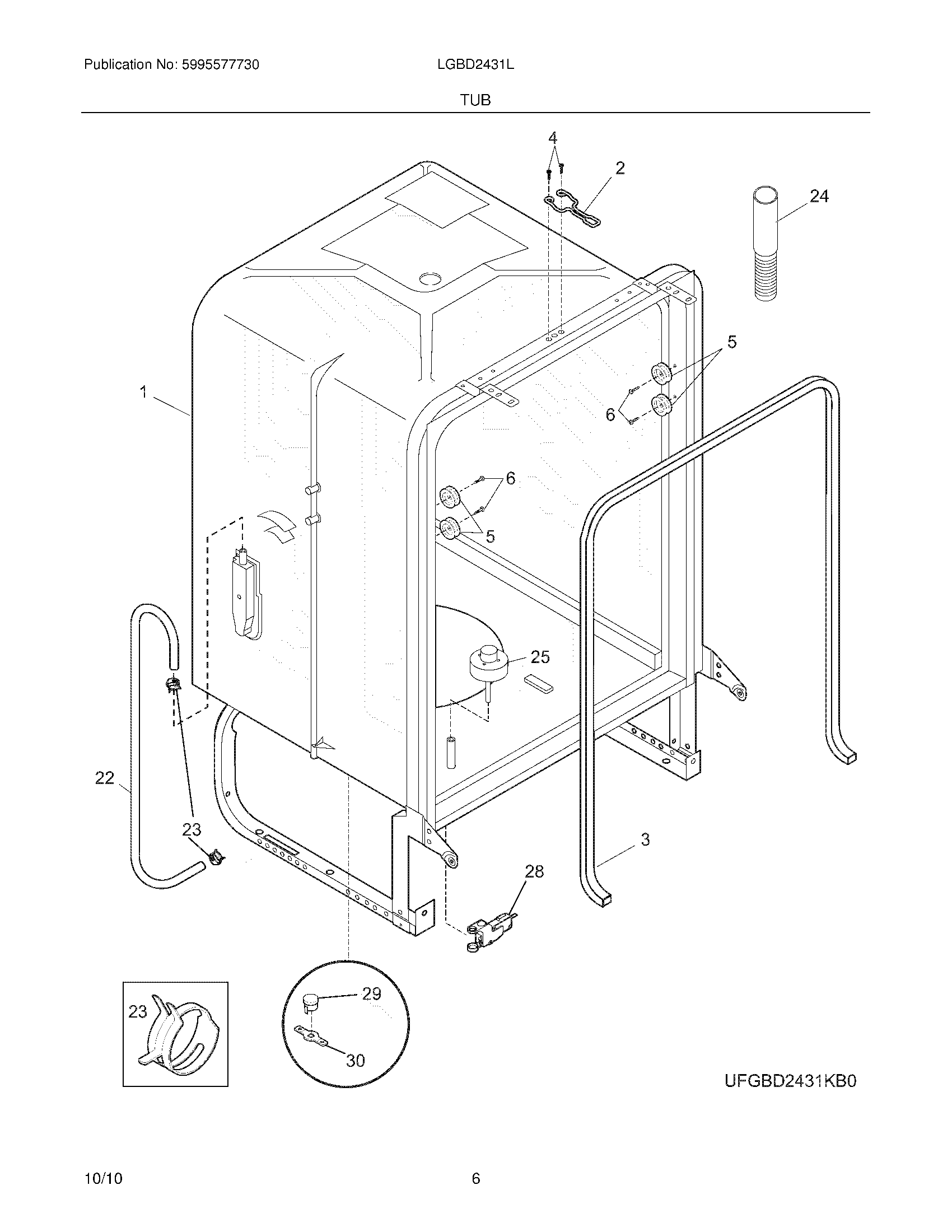

LGBD2431LQ0A 07 – TUB

Products

Position	Product
NI	WCI 154200601
NI	154200701 Frigidaire Dishwasher Screw
NI	5304520581 Frigidaire Dishwasher Insulation
NI	154297701 Frigidaire Dishwasher Screw
NI	154380601 Frigidaire Dishwasher Clamp Assembly
NI	154701001 Frigidaire Dishwasher Service Kit Splash Shield
NI	154753101 Frigidaire Dishwasher Thermistor
NI	808690701 Frigidaire Dishwasher Screw
NI	WCI 5300807270
NI	154641601 Frigidaire Dishwasher Insulation
1	WCI 154729401
2	5304532796 Frigidaire Dishwasher Strike
3	154827601 Frigidaire Dishwasher Tub Gasket
4	WCI 154200602
5	5304506916 Frigidaire Dishwasher Assembly-Roller
6	5303943103 Frigidaire Dishwasher P-1 Screw Kit (8 Each Wash/Screw)
22	5304523457 Frigidaire Inlet Hose
23	CLAMP, HOSE
24	807117001 Frigidaire Dishwasher Drain Hose
25	5304506520 Frigidaire Dishwasher Float Assembly
28	FLOAT SWITCH ASSY
29	154290204 Frigidaire Dishwasher Thermostat
30	154241101 Frigidaire Dishwasher Retainer
