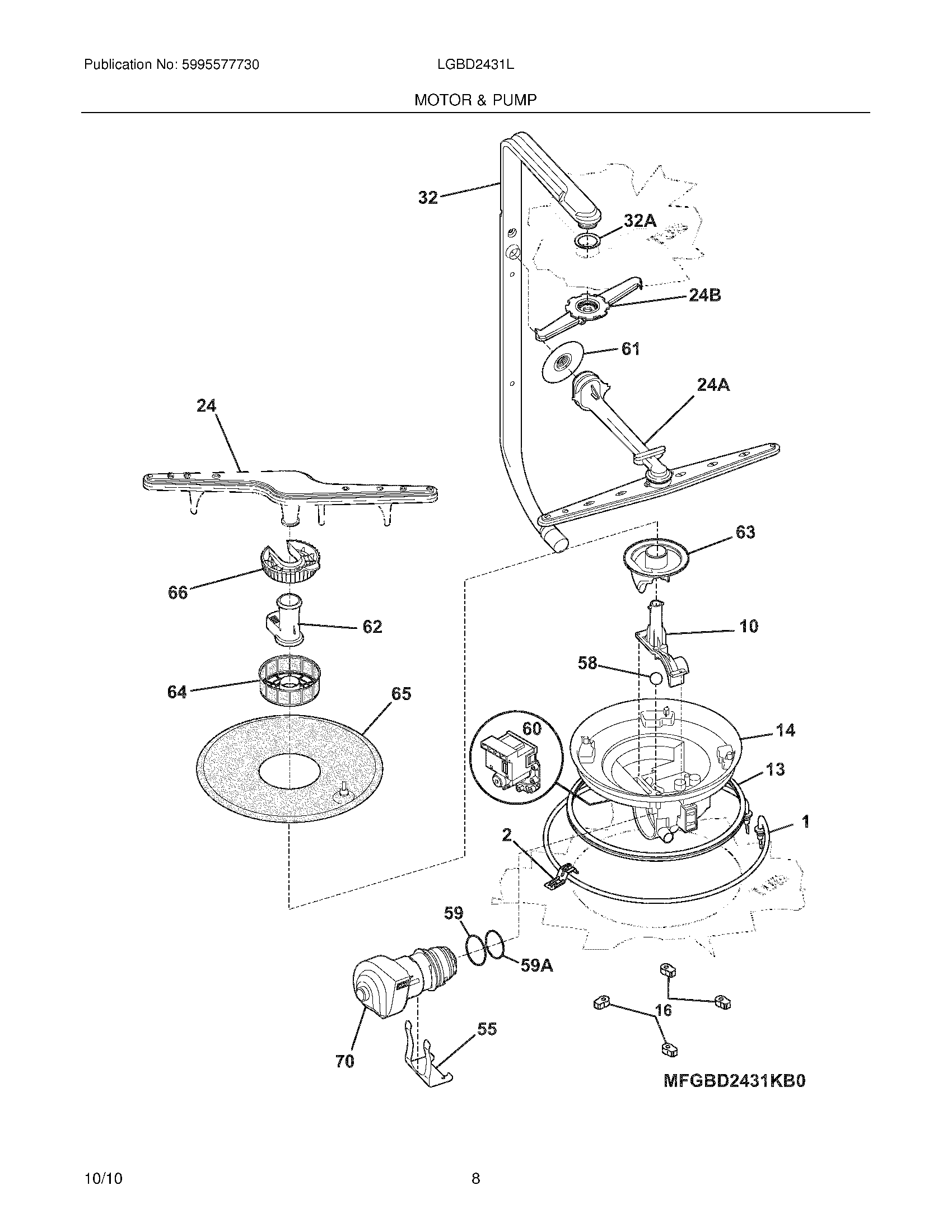

LGBD2431LQ0A 09 – MOTOR & PUMP

Products

Position	Product
NI	WCI 154200601
NI	154754901 Frigidaire Dishwasher Screw
NI	154741501 Frigidaire Dishwasher Screw
NI	154611101 Frigidaire Dishwasher Clamp
NI	154491101 Frigidaire Dishwasher Screw
NI	154289801 Frigidaire Dishwasher Shield
NI	154106202 Frigidaire Dishwasher Heater Nut
NI	807048001 Frigidaire Dishwasher Check Valve
NI	WCI 5303316032
NI	154297701 Frigidaire Dishwasher Screw
1	154825001 Frigidaire Dishwasher Round Heater Heating Element
2	154465101 Frigidaire Dishwasher Heating Element Support Bracket
10	154724001 Frigidaire Lower Arm Support
13	154246801 Frigidaire Dishwasher Primary Gasket
14	154728201 Frigidaire Dishwasher Sump Assembly
16	154246502 Frigidaire Dishwasher Bracket
24B	5304506516 Frigidaire Dishwasher Upper Spray Arm
24A	A01986801 Frigidaire Upper Rack Assembly
24	5304517203 Frigidaire Dishwasher Lower Wash Arm Assembly
32	5304507087 Frigidaire Dishwasher Tube
32A	154406401 Frigidaire Delivery Tube Gasket
55	5304534830 Frigidaire Dishwasher Bracket
58	154246402 Frigidaire Dishwasher P-1 BALL
59A	154247001 Frigidaire Dishwasher Pump Gasket Seal for the Motor and Front
59	154246901 Frigidaire Dishwasher Rear O-Ring for 154473001 Motor
60	A00126401 Frigidaire Dishwasher Drain Pump Assembly
61	5304506517 Frigidaire Dishwasher Grommet Assembly
62	5304518968 Frigidaire Lower Spray Arm Support
64	5304506533 Frigidaire Dishwasher Filter Base
65	154283005 Frigidaire Dishwasher Filter Assembly
66	5304532206 Frigidaire Trap
70	154844301 Frigidaire Dishwasher Motor Kit
