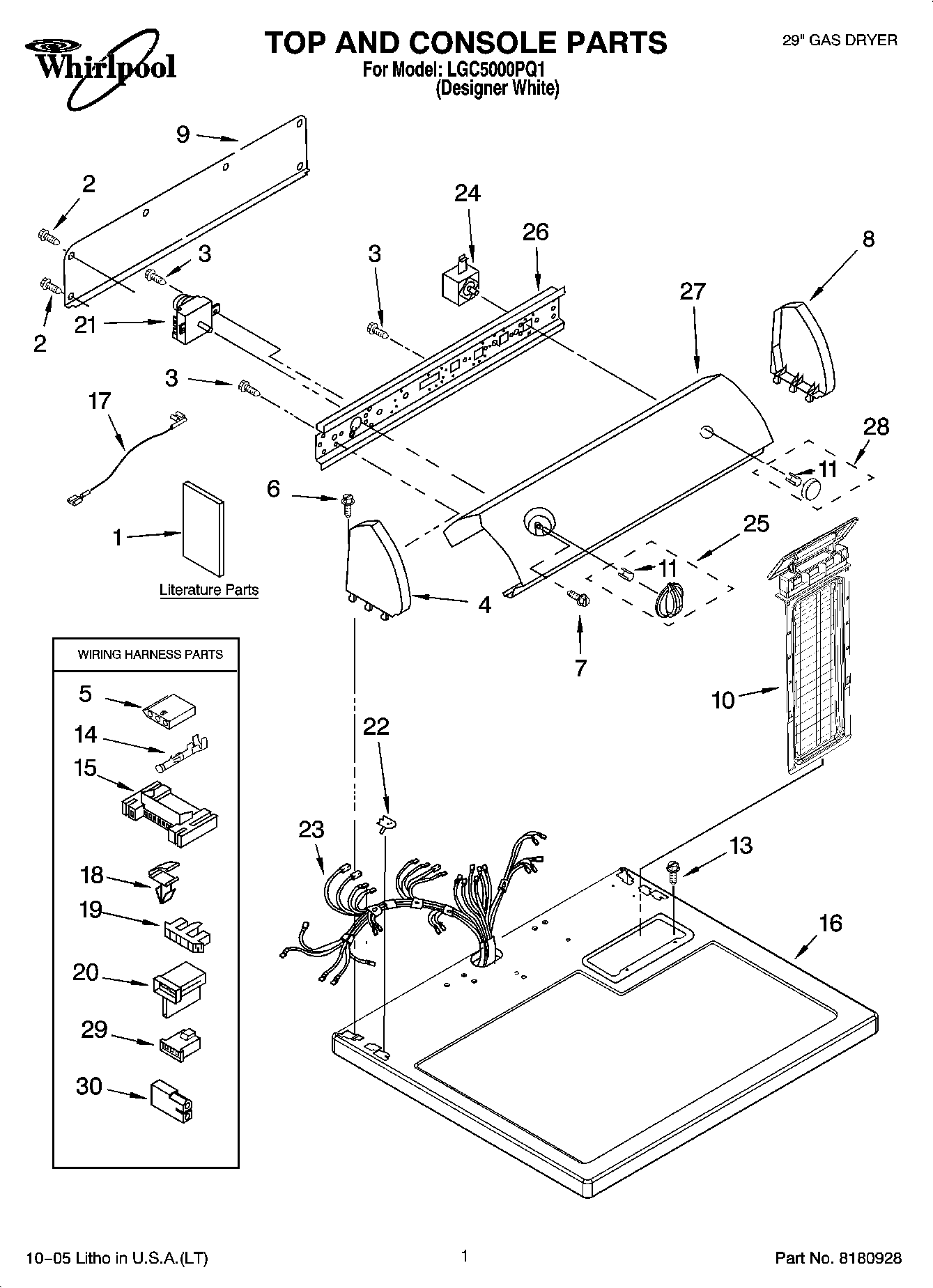

LGC5000PQ1 01 – TOP AND CONSOLE PARTS

LGC5000PQ1 01 – TOP AND CONSOLE PARTS

Written by

in

LGC5000PQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1WPL 677818
1Sheet, Cycle Feature
1Instructions, Installation
1Use & Care Guide
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8W10820038 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Wire, Jumper (Blue)
17Wire, Jumper (Black)
18WP3394427 Whirlpool Clip
19Connector, Timer
20WP3403499 Whirlpool Connector
21WP3976584 Whirlpool Timer Assembly
22WP357213 Whirlpool Hinge Stopper
23Harness, Wiring
24WP3977456 Whirlpool Start Switch
25W10756270 Whirlpool Dryer Timer Knob
26Bracket, Control
27Panel, Control
28WP8544939 Whirlpool Knob Assembly
29WP3403498 Whirlpool Connector
30Receptacle, Latching (2-Way) (Uses Terminal 94614)
