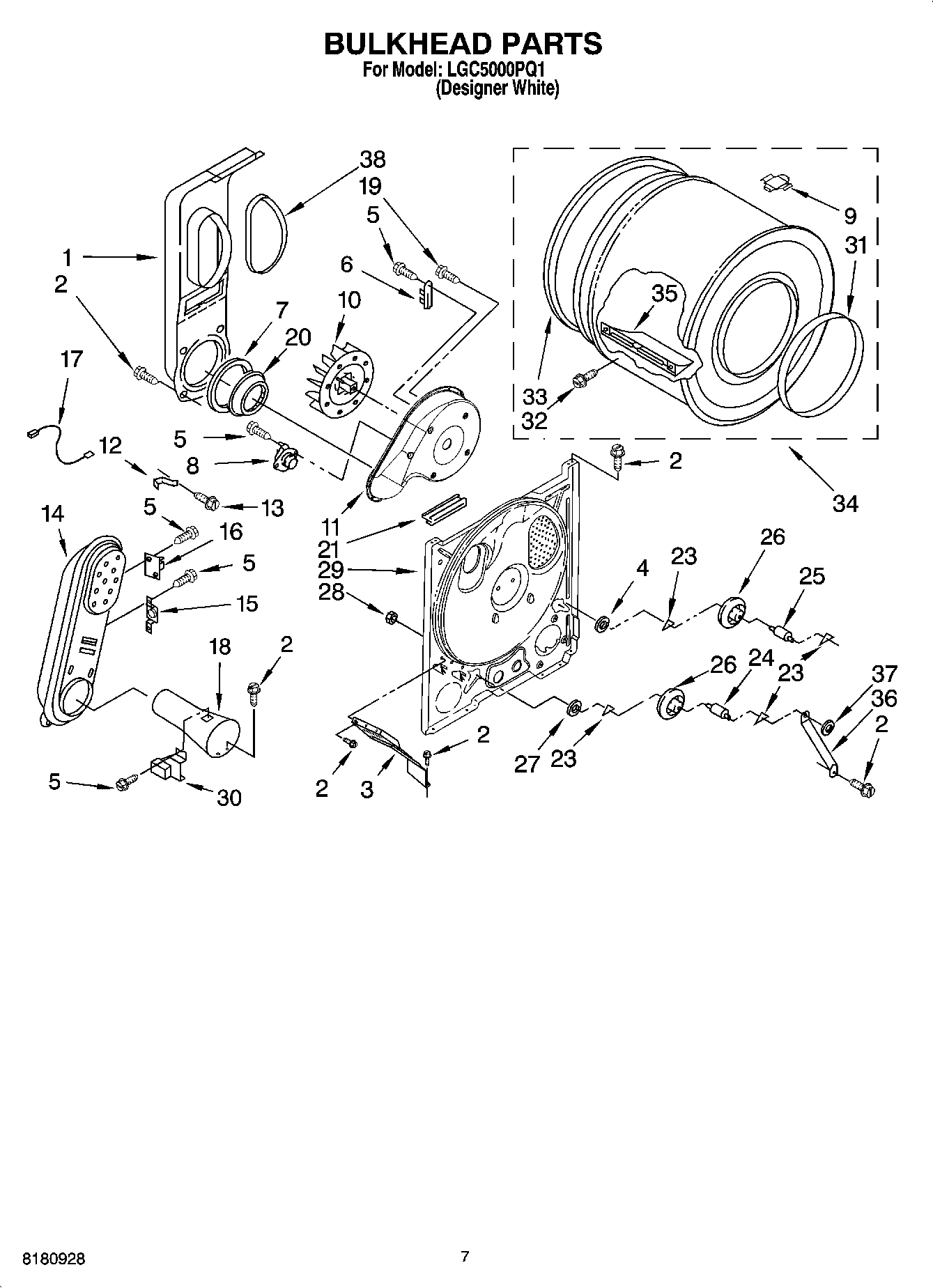

LGC5000PQ1 04 – BULKHEAD PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4392065 Whirlpool Dryer Maintenance Kit
	W11224254 Whirlpool Test Kit
	WP689790 Whirlpool Dryer Rack
	KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALLATION)
	ACCESSORY PARTS
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
1	279505 Whirlpool Chute
2	SCREW
3	W11398682 Whirlpool Bracket
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	W11415783 Whirlpool Seal
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	8066086 Whirlpool Plug
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	WP489463 Whirlpool Refrigerator Screw
14	279980 Whirlpool Box
16	W11050897 Whirlpool Dryer High Limit Thermostat
17	WP3401707 Whirlpool Wire Assembly
18	WP8066048 Whirlpool Funnel
19	WP488729 Whirlpool Refrigerator Door Screw
20	W11233063 Whirlpool Shield Assembly
21	686889 Whirlpool Pad
23	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
24	SHAFT SUPPORT ROLLER DRYER
25	SHAFT SUPPORT ROLLER DRYER
26	349241T Whirlpool Dryer Drum Support Roller Kit
27	WP348197 Whirlpool Washer Assembly
28	WP3359452 Whirlpool Nut
29	BULKHEAD
30	WP338906 Whirlpool Dryer Gas Sensor
31	WP3394508 Whirlpool Bearing Ring
32	WPW10109200 Whirlpool Screw
33	239087 Whirlpool Dryer Rear Drum Seal Green Stitches
34	3396775 Whirlpool Drum Assembly
35	WP342847 Whirlpool Drum Baffle
36	Bracket, Support
37	WP90296 Whirlpool Clip
38	SEAL
