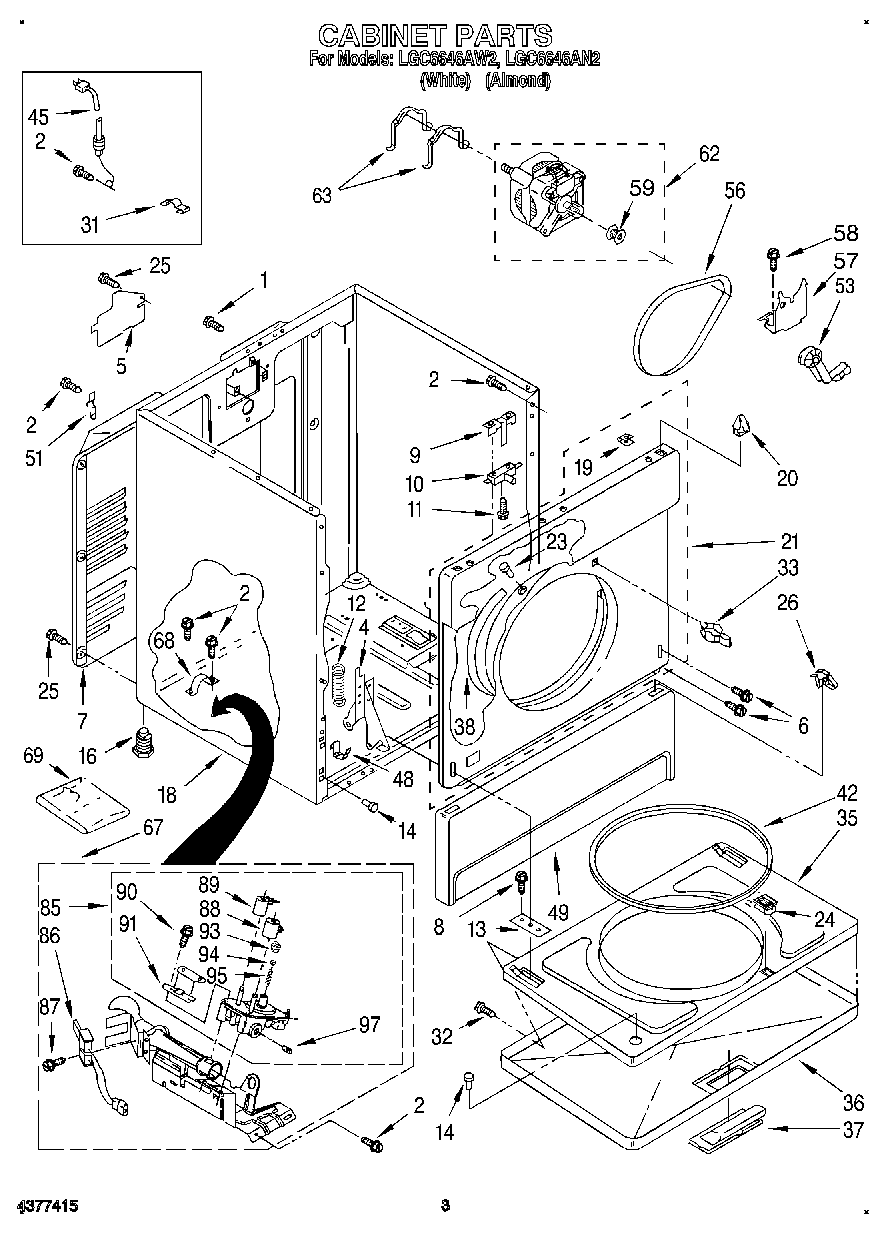

LGC6646AW2 02 – CABINET
Written by
in
LGC6646AW2 02 – CABINET
Products
Position
Product
1
W10850756 Whirlpool Screw
2
SCREW
4
Hinge, L.H.
4
Hinge, R.H.
5
W11539855 Whirlpool Refrigerator Pump
6
Screw, 10-32 x 1/2
7
280043 Whirlpool Rear Panel
8
WP308685 Whirlpool Microwave Screw
9
WP691581 Whirlpool Actuator
10
W10820036 Whirlpool Door Switch Kit
11
WP98129 Whirlpool Screw
12
Spring, Door (2)
13
W11252547 Whirlpool Clip Assembly
14
238614 Whirlpool Bumper Hinge
16
49621 Whirlpool Leveling Feet
18
Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
18
Cabinet (Includes Illus. Nos. 5, 7, 15, 16, 41, & 57) (Almond)
19
WP98234 Whirlpool Nut
20
WP18776 Whirlpool Lock
21
Front Panel Assembly (White)
21
Front Panel Assembly (Almond)
23
279220 Whirlpool Clip
24
279570 Whirlpool Dryer Door Latch Kit
25
WP693995 Whirlpool Screw
26
WP3388229 Whirlpool Dryer Spring Clip
31
8528351 Whirlpool Clip
32
WP694091 Whirlpool Screw
35
Door, Rear
36
Door, Front (White)
36
Door, Front (Almond)
37
WP348721 Whirlpool Handle
37
Handle, Door (Almond)
38
279264 Whirlpool Bearing and Seal Kit
42
WP3390733 Whirlpool Door Seal Assembly
45
W11222083 Whirlpool Power Cord
48
WP297092 Whirlpool Clip
49
Panel, Toe (White)
49
Panel, Toe (Almond)
51
WP8066217 Whirlpool Hinge
53
WP691366 Whirlpool Dryer Idler Pulley Assembly
56
341241 Whirlpool Dryer Drum Belt
57
WP348780 Whirlpool Base
58
3400500 Whirlpool Screw
59
WP8066184 Whirlpool Dryer Motor Pulley
62
279827 Whirlpool Dryer Drive Motor
63
WP660658 Whirlpool Clamp
67
Burner Assembly, 60 Hz. (Refer To Burner Assembly Parts Page For Further Breakdown)
68
341029 Whirlpool Clamp
69
49572A Whirlpool Dryer Propane Gas Conversion Kit
85
279923 Whirlpool Gas Valve
86
279311 Whirlpool Dryer Flat Igniter with Bracket
87
WPW10366705 Whirlpool Screw
88
279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
90
694421 Whirlpool Screw Assembly
91
694538 Whirlpool Bracket
93
WP694424 Whirlpool Limiter
94
WP694423 Whirlpool Regulator
95
WP694422 Whirlpool Spring
97
W10295523 Whirlpool Plug
←
