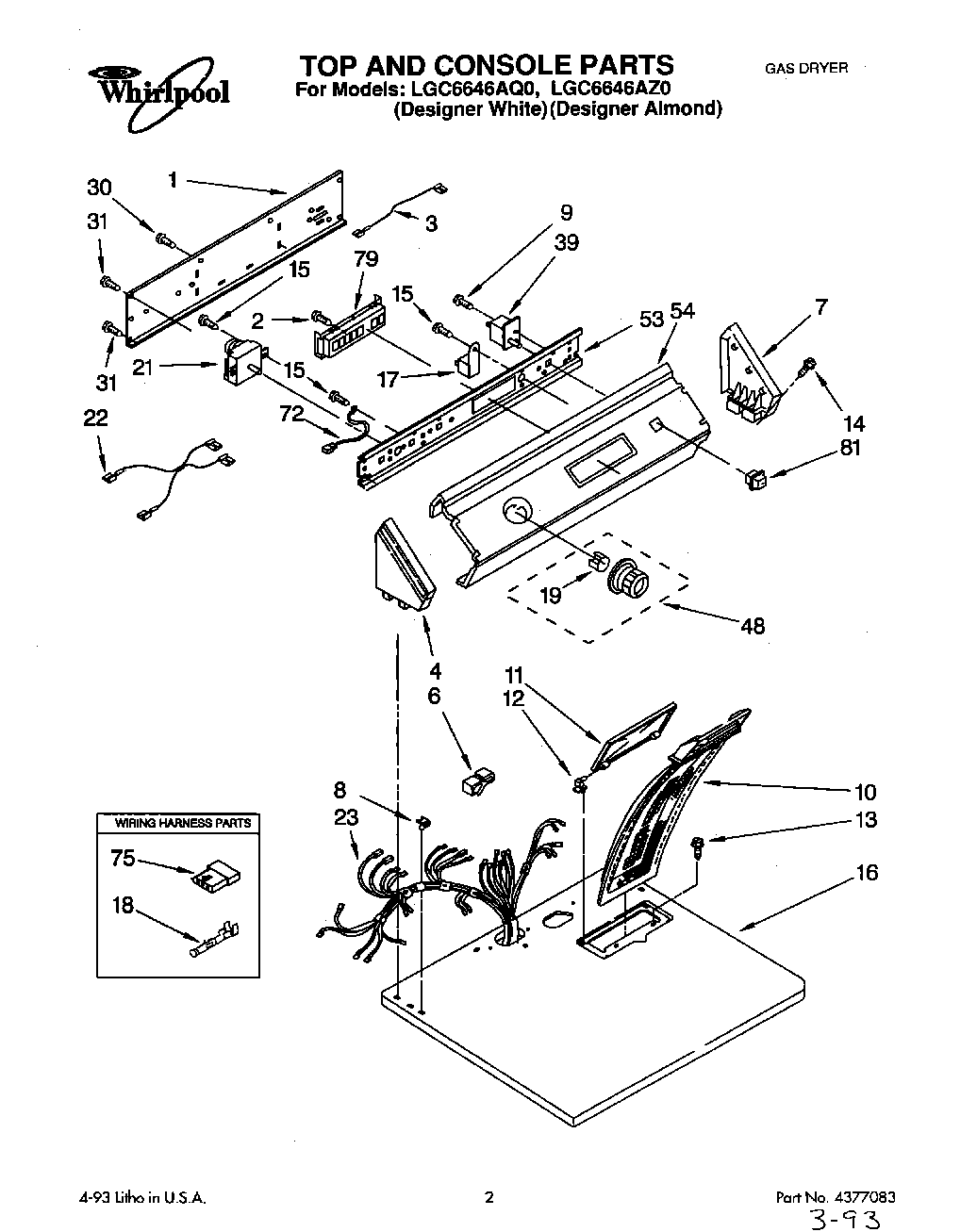

LGC6646AZ0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Instructions, Installation
	Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	WPL LIT4377083
	72017 Whirlpool Appliance Touch-Up Paint White
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	Screw, 8-18 x 7/8
3	Wire, Jumper (Violet)
3	Wire, Jumper (Blue)
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
6	Clip, Retainer
7	Cap, End (R.H.) (Almond)
7	Cap, End (R.H.) (White)
8	WP357213 Whirlpool Hinge Stopper
9	WP488729 Whirlpool Refrigerator Door Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	WPW10139210 Whirlpool Screw
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP94614 Whirlpool Terminal
19	WP688805 Whirlpool Spring Clip
21	WP3396047 Whirlpool Timer
22	Wire Jumper Assembly
23	Harness, Wiring
30	WP693995 Whirlpool Screw
31	WP489069 Whirlpool Compactor Screw
39	Relay, Push-To-Start
48	3957753 Whirlpool Knob
48	WP3957752 Whirlpool Knob
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
72	Wire, Ground
75	Receptacle, 3-Way Terminal (Use W/94614)
79	Switch, Clean Touch (White)
79	Switch, Clean Touch (Almond)
81	LGT8858AQ1
81	LGT8858AZ1
