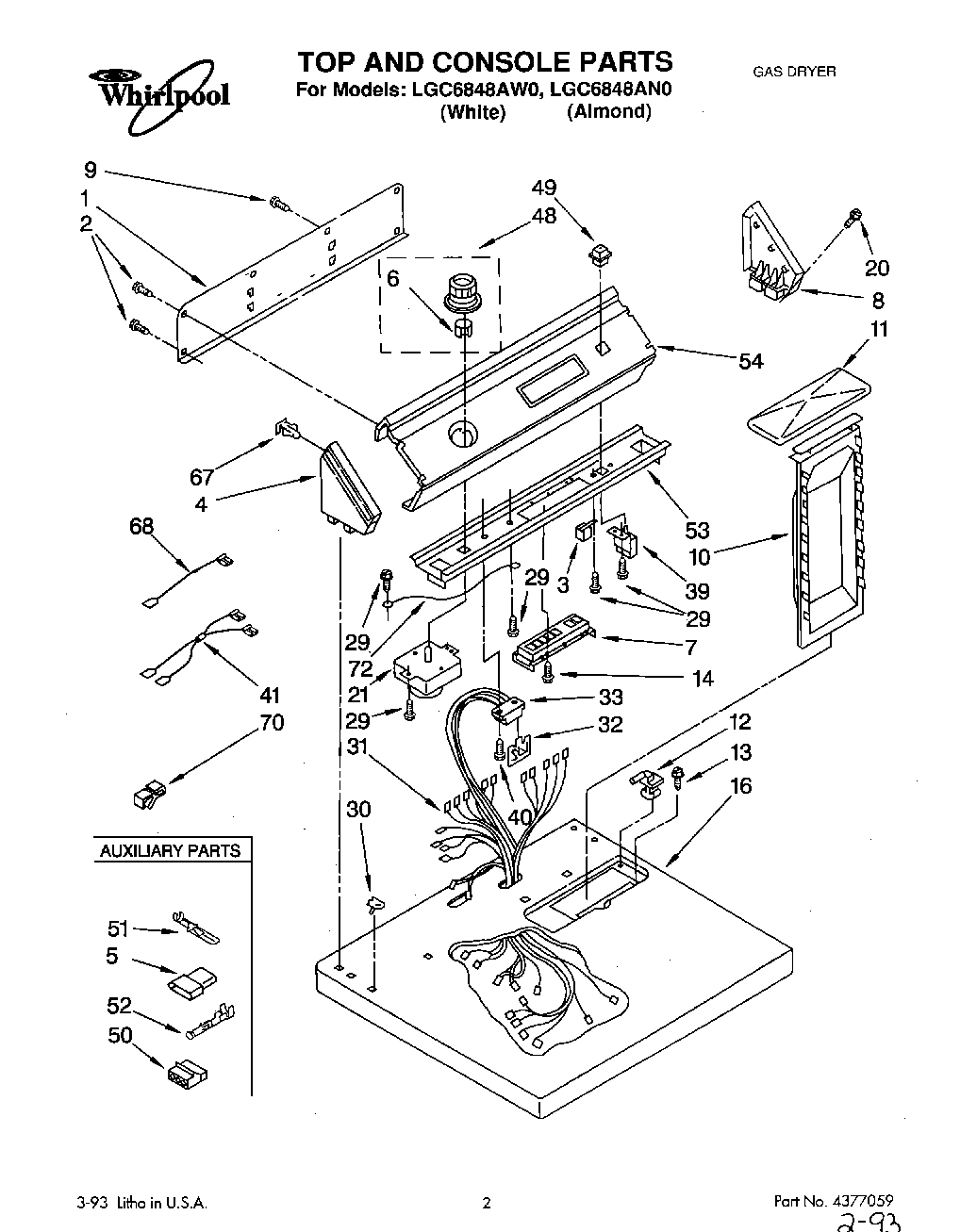

LGC6848AN0 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Dryer
	Guide, Use & Care
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	WPL LIT4377059
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP694419 Whirlpool Buzzer Adjuster
4	Cap, End (L.H.) (Almond)
4	Cap, End (L.H.) (White)
5	353424 Whirlpool Connector
6	WP688805 Whirlpool Spring Clip
7	Switch, Clean Touch
8	Cap, End (R.H.) (Almond)
8	Cap, End (R.H.) (White)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Screw, 8-18 x 7/8
16	Top (Almond)
16	Top (White)
20	WP388326 Whirlpool Screw
21	WP3397273 Whirlpool Timer
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
33	3391885 Whirlpool Connector
39	Relay, Push-To-Start
40	SCREW
41	Wire Jumper Assembly
48	WP3957752 Whirlpool Knob
49	Button, Push To Start
50	Receptacle, 3-Way Terminal (Use W/94614)
51	WP596797 Whirlpool Terminal
52	WP94614 Whirlpool Terminal
53	Bracket, Control
54	Panel, Control (White)
54	Panel, Control (Almond)
67	WP689559 Whirlpool Nut
68	Wire, Jumper (Violet)
68	Wire, Jumper (Blue)
70	Clip, Retainer
72	Wire, Ground
