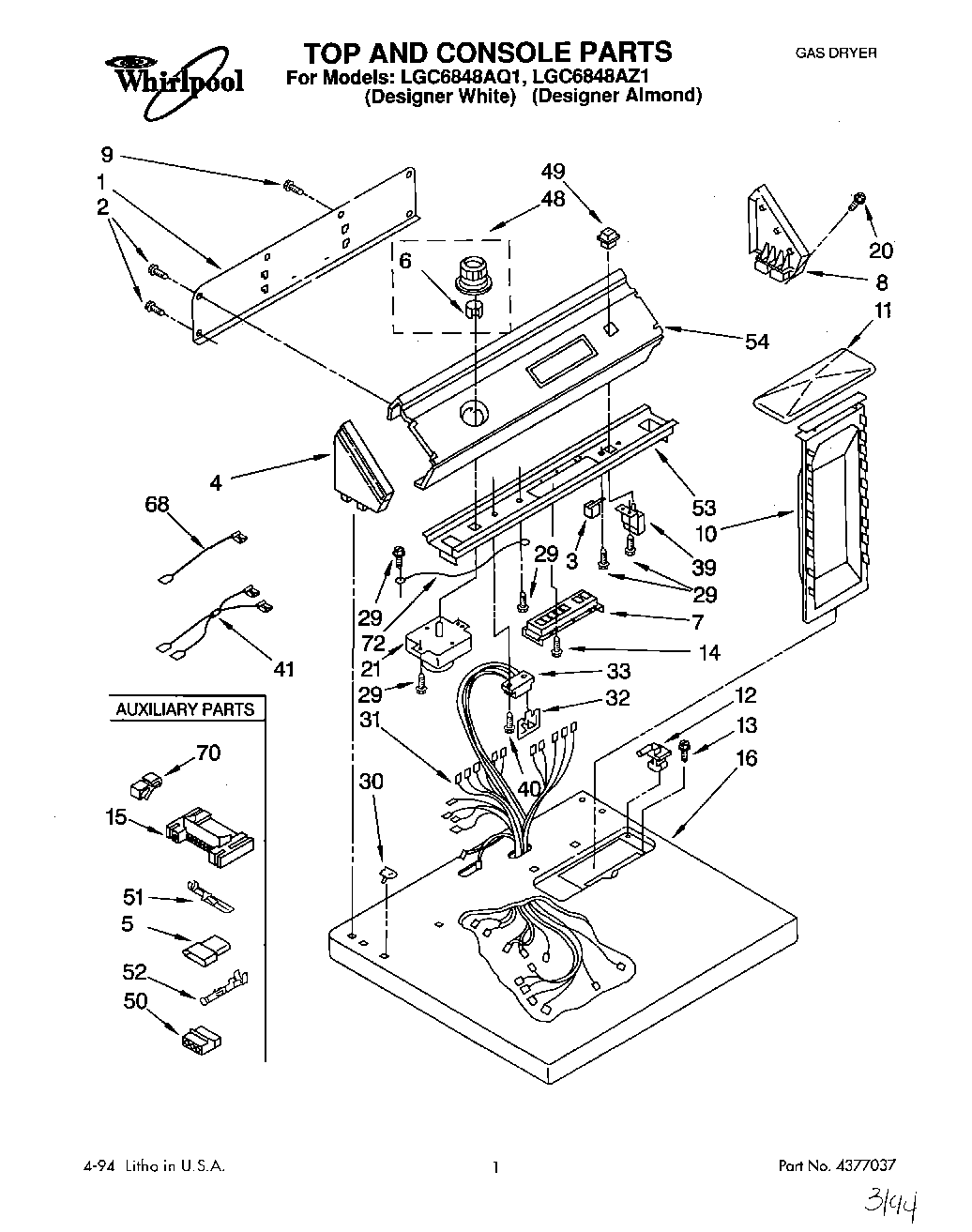

LGC6848AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

LGC6848AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

Written by

in

LGC6848AQ1 01 – TOP & CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
WPL LIT3398692
Leveler (Thinner)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
Instructions, Installation
Guide, Use & Care
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
1Panel, Rear Console
2WP489069 Whirlpool Compactor Screw
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
5353424 Whirlpool Connector
6WP688805 Whirlpool Spring Clip
7Switch, Clean Touch (White)
7Switch, Clean Touch (Almond)
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.) (White)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Screw, 8-18 x 7/8
153395683 Whirlpool Connector
16Top (Almond)
16Top (White)
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
333391885 Whirlpool Connector
39Relay, Push-To-Start
40SCREW
41Wire Jumper Assembly
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49LGT8858AZ1
49LGT8858AQ1
50Receptacle, 3-Way Terminal (Use W/94614)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
68Wire, Jumper (Blue)
68Wire, Jumper (Violet)
70Clip, Retainer
72Wire, Ground
