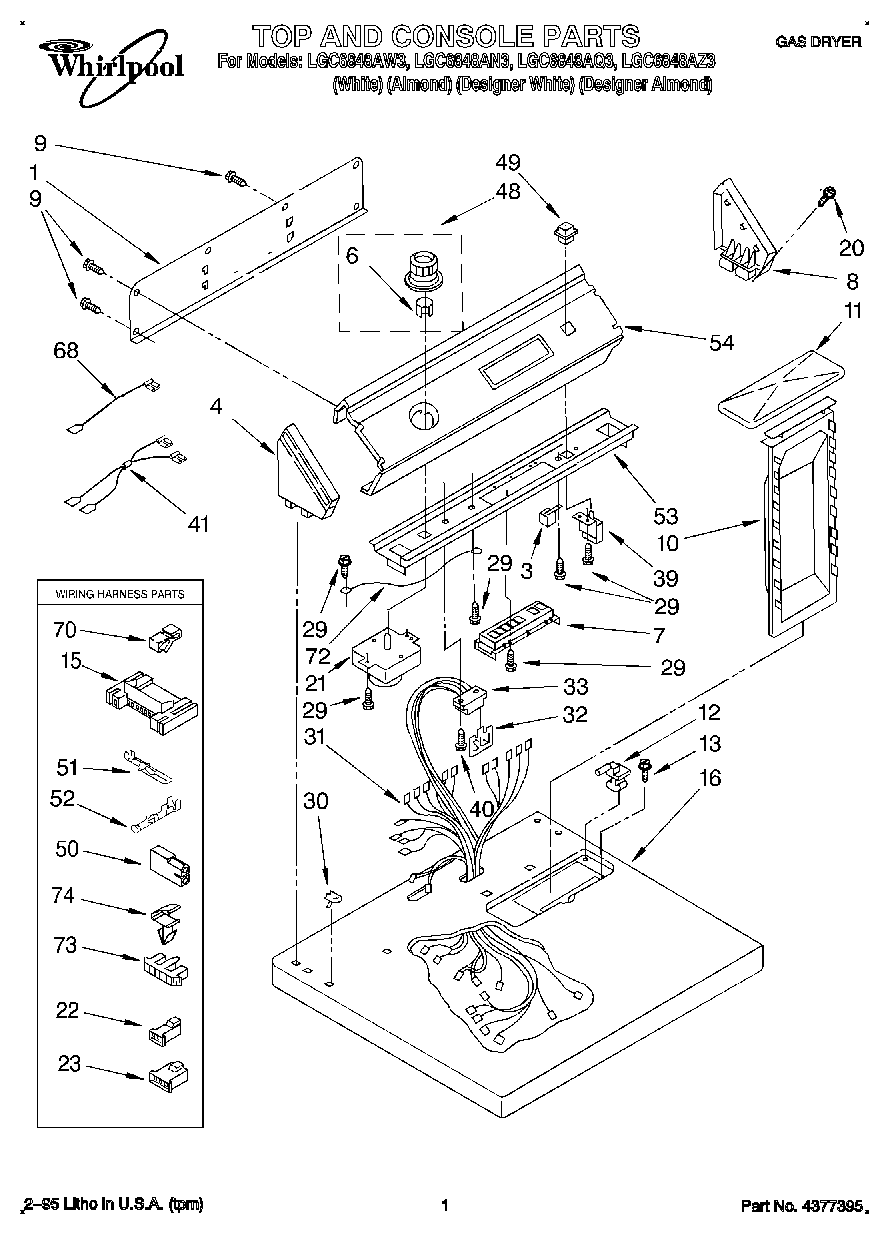

LGC6848AQ3 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGC6848AQ3 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGC6848AQ3 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Instructions, Installation
Almond (Uncut)
Dryer
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3401725
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
Guide, Use & Care
350938 Whirlpool Spray Gun
WPL LIT3401086
1Panel, Rear Console
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.) (White)
6WP688805 Whirlpool Spring Clip
7Switch, Clean Touch (White)
7Switch, Clean Touch (Almond)
7Switch, Clean Touch
8Cap, End (R.H.) (Almond)
8Cap, End (R.H.) (White)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (Almond)
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
153395683 Whirlpool Connector
16Top (White)
16Top (Almond)
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
22Connector, 2-Position (Gas Valve)
23Connector, 3-Position (Gas Valve)
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
333391885 Whirlpool Connector
39Relay, Push-To-Start
40SCREW
41Wire Jumper Assembly
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49Button, Push To Start
49LGT8858AQ1
49LGT8858AZ1
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
51WP596797 Whirlpool Terminal
52WP94614 Whirlpool Terminal
53Bracket, Control
54WPL 3398508
54WPL 3398507
54WPL 3398509
54WPL 3398510
68Wire, Jumper (Blue)
68Wire, Jumper (Violet)
70Clip, Retainer
72Wire, Ground
73Connector, Timer
74WP3394427 Whirlpool Clip
