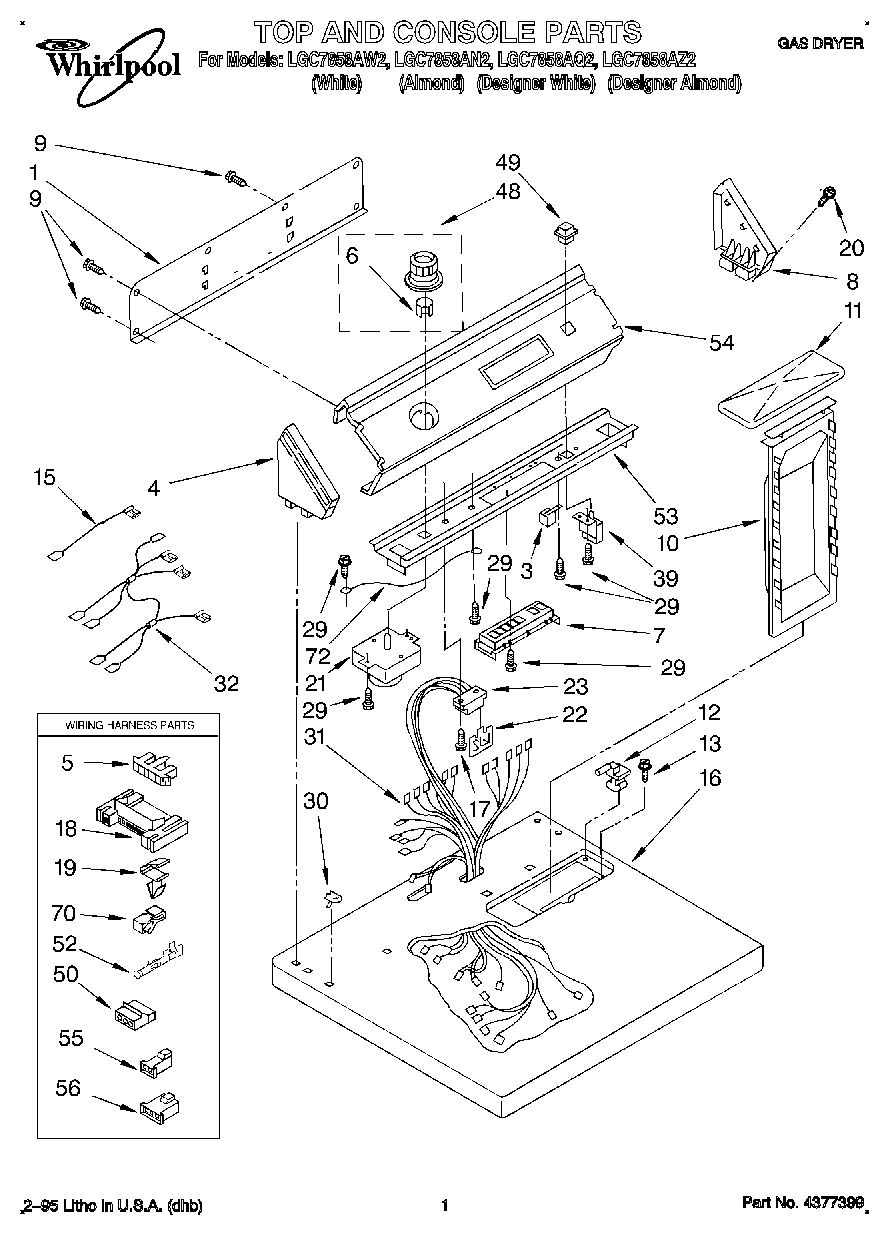

LGC7858AZ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

LGC7858AZ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGC7858AZ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Guide, Use & Care
Dryer
WPL LIT3401725
Instructions, Installation
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL LIT3401086
1Panel, Rear Console
3WP694419 Whirlpool Buzzer Adjuster
4Cap, End (L.H.) (White)
4Cap, End (L.H.) (Almond)
5Connector, Timer
6WP688805 Whirlpool Spring Clip
7LGT8858AZ1
7Switch, Clean-Touch
7LGT8858AQ1
8Cap, End (R.H.) (White)
8Cap, End (R.H.) (Almond)
9WP693995 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15Wire, Jumper (Blue)
15Wire, Jumper (Violet)
16Top (Almond)
16Top (White)
17SCREW
183395683 Whirlpool Connector
19WP3394427 Whirlpool Clip
20WP388326 Whirlpool Screw
21WP3397273 Whirlpool Timer
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
233391885 Whirlpool Connector
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire, Jumper (Signal Bypass)
39Relay, Push-To-Start
483957753 Whirlpool Knob
48WP3957752 Whirlpool Knob
49LGT8858AQ1
49Button, Push To Start
49LGT8858AZ1
50Receptacle, Latching (2-Way) (Uses Terminal 94614)
52WP94614 Whirlpool Terminal
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
54WPL 3398521
54WPL 3398522
55Connector, 2-Position (Gas Valve)
56Connector, 3-Position (Gas Valve)
70Clip, Retainer
72Wire, Ground
