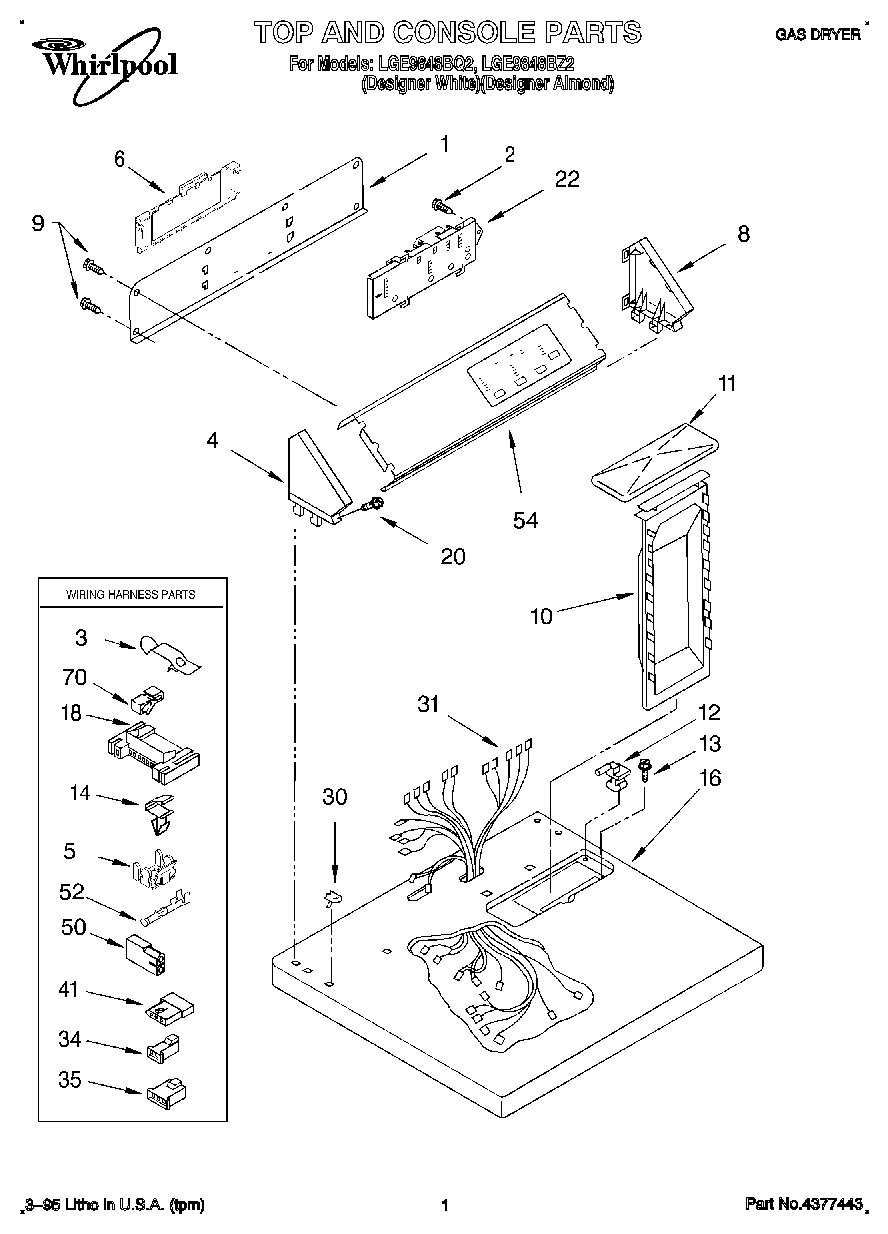

LGE9848BQ2 01 – TOP AND CONSOLE, LIT/OPTIONAL

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Label, Wiring Diagram
	Instructions, Installation
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Dryer
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP90767 Whirlpool Screw
3	Clip, Wire (Tech Sheet/Top)
4	Cap, End (L.H.) (White)
4	Cap, End (L.H.) (Almond)
5	Clip, Ground
6	Card & Tray Assembly (White)
6	Card & Tray Assembly (Almond)
8	Cap, End (R.H.) (White)
8	Cap, End (R.H.) (Almond)
9	WP693995 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP3394427 Whirlpool Clip
16	Top (Almond)
16	Top (White)
18	3395683 Whirlpool Connector
20	WP388326 Whirlpool Screw
22	Electronic Control Board
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Gas
34	Connector, 2-Position (Gas Valve)
35	Connector, 3-Position (Gas Valve)
41	Connector, 3-Circuit
50	Receptacle, Latching (2-Way) (Uses Terminal 94614)
52	WP94614 Whirlpool Terminal
54	Control Panel & Bracket Assembly (White)
54	Control Panel & Bracket Assembly (Almond)
70	Clip, Retainer
