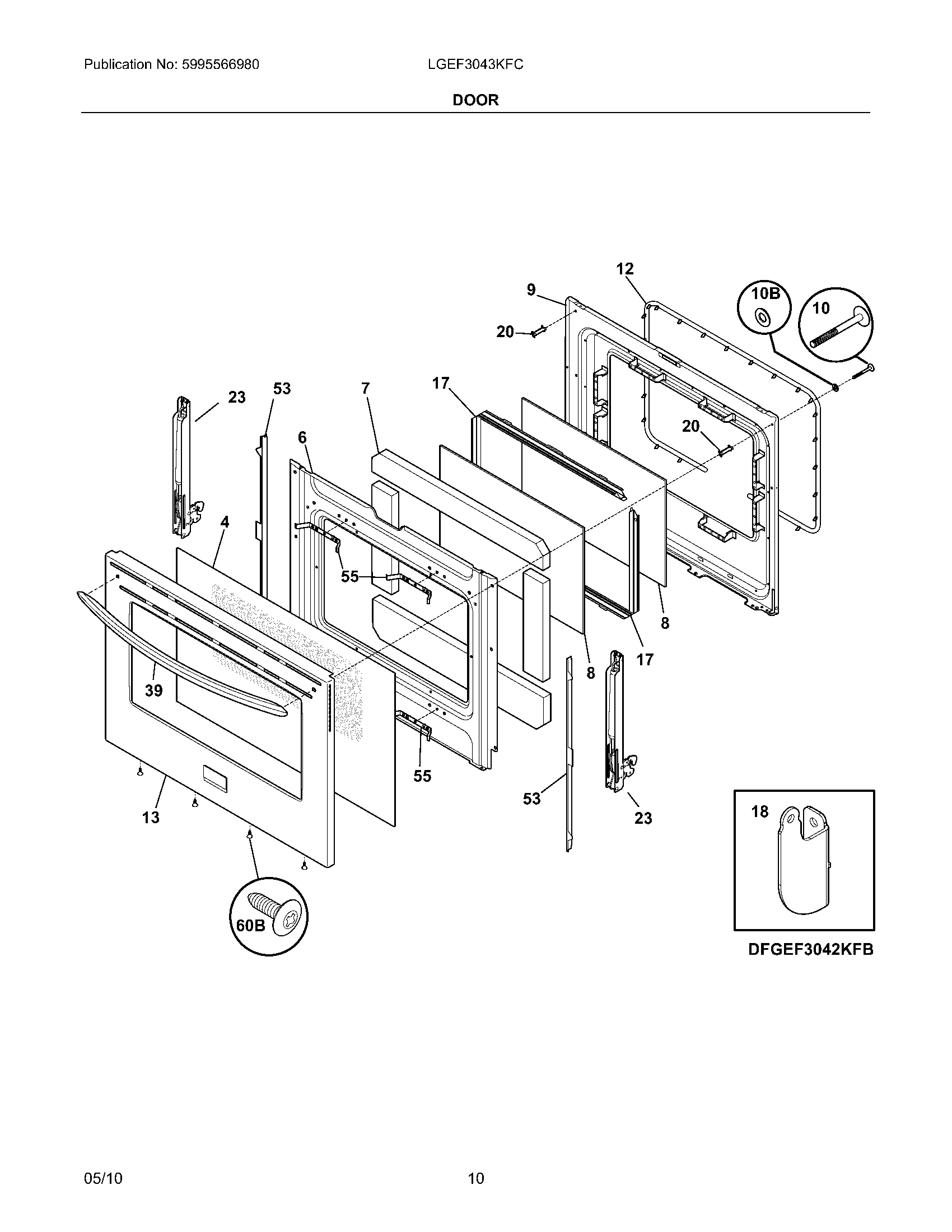

LGEF3043KFC 09 – DOOR

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316433603 Frigidaire Oven Label
NI316418900 Frigidaire Oven Screw
4316452758 Frigidaire Oven Outer Door Glass
6316406328 Frigidaire Shield
7316405600 Frigidaire Insulation
85304503232 Frigidaire Oven Inner Door Glass
9WCI 316423705
10Screw,handle mtg. ,10-24 x 1.75“ ,(2)
10B316008401 Frigidaire Washer P-1
12316405000 Frigidaire Oven Seal
13WCI 316407918
175304504811 Frigidaire Glass Spacer
18WCI 316547900
20WCI 316408600
23WCI 316537303
535304532042 Frigidaire Shield-Filler Door
55316408300 Frigidaire Oven Bracket
60B316021109 Frigidaire Oven Screw
