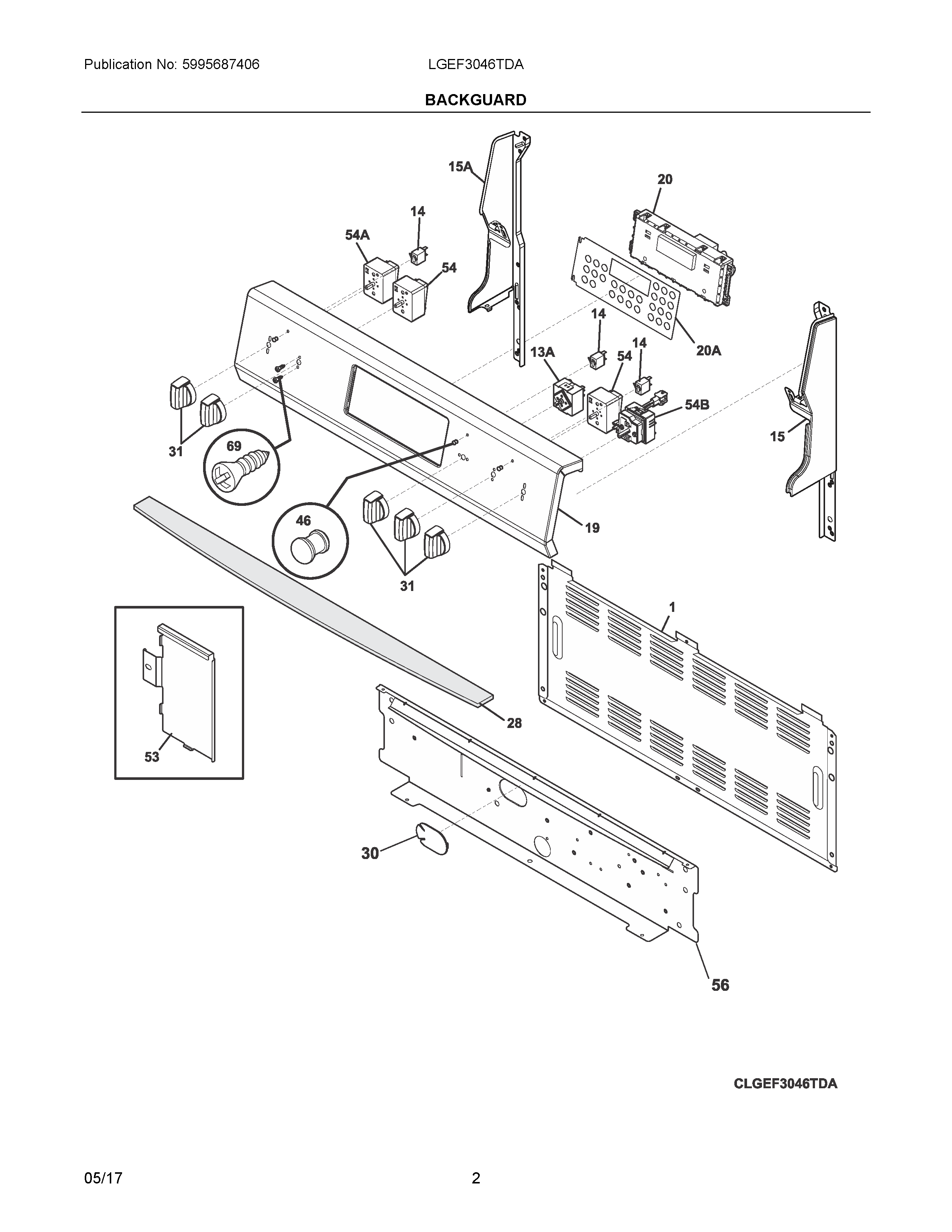

LGEF3046TDA 02 – BACKGUARD

Products

Position	Product
NI	316021105 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316089500 Frigidaire Oven Screw
1	316281802 Frigidaire Oven Shield
13A	5304508926 Frigidaire Oven Temperature Control Switch
14	316022500 Frigidaire Oven Warmer Drawer Zone Indicator Light Lamp
15A	5304493646 Frigidaire Oven Cap
15	5304493644 Frigidaire Oven Cap
19	PANEL, BACKGUARD, BLACK STAINLESS
20A	316419841 Frigidaire Oven Overlay
20	5304509229 Frigidaire Oven Controller
28	316528700 Frigidaire Insulation Assembly
30	316577600 Frigidaire Plug
31	5304509239 Frigidaire Knob Assembly
46	316557300 Frigidaire Range Indicator Light Lens
53	SHIELD, FLUE, INNER
54A	316238201 Frigidaire Oven Switch
54B	5304490134 Frigidaire Oven Switch
54	316436000 Frigidaire Oven Range Surface Element Switch
56	316234045 Frigidaire Oven Shield
69	5303288565 Frigidaire Screw
