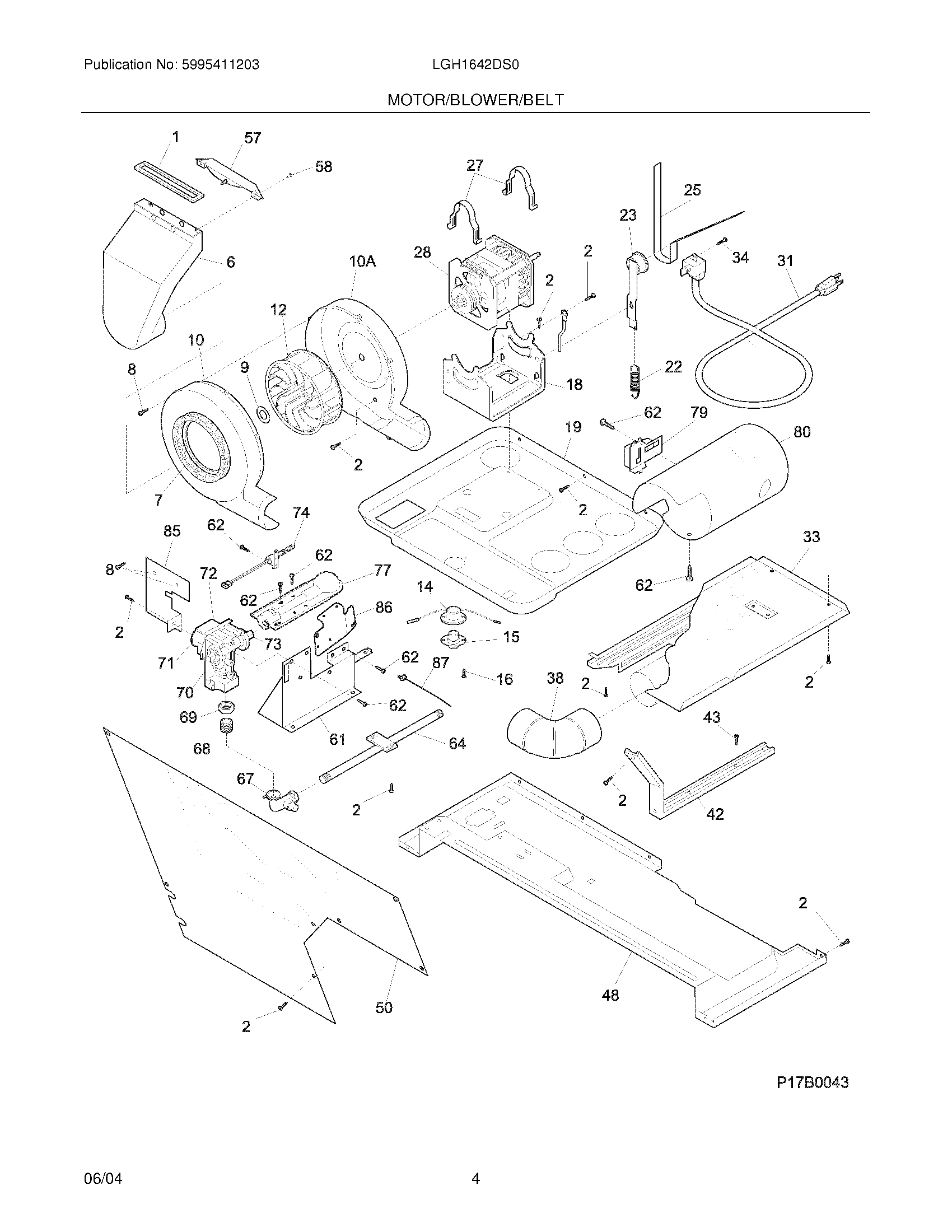

LGH1642DS0 05 – MOTOR/BLOWER/BELT

Products

Position	Product
NI	PCK3100 Frigidaire Conversion Kit
1	131295200 Frigidaire Seal
6	5304521121 Frigidaire Duct
7	3204490 Frigidaire Seal
8	SCREW (6)
9	5304488479 Frigidaire Washer Hose Clamp
10	5304485558 Frigidaire Blower Housing Assembly, Front & Rear
12	BLOWER WHEEL
14	WCI 131658101
15	WCI 131322600
16	134178901 Frigidaire Screw
18	CRADLE & STUD
19	WCI 131363901
22	3205241 Frigidaire Idler Spring
23	IDLER ARM ASSY
25	BELT-DRYER LC
27	134242400 Frigidaire Washer Clamp Assembly
28	134196602 Frigidaire Washer Dryer Motor
31	134500500 Frigidaire Power Cord
33	SHIELD-ACCESS
34	134154100 Frigidaire Screw 10-32 x 0.375 Co
38	ELBOW
42	WCI 5304439185
43	WCI 134305100
48	137455500 Frigidaire Lower Pan Assembly
50	SAFETY COVER
57	131729301 Frigidaire Cover
58	131168200 Frigidaire Dryer Screw
61	WCI 5303309493
62	131243700 Frigidaire Screw
64	WCI 134145200
67	VALVE-SHUT OFF
68	WCI 134185100
69	WCI 5308015194
70	DRYER GAS VALVE
71	5303931775 Frigidaire Dryer Coil Kit
73	5303207410 Frigidaire Orifice
74	5304517325 IGNITOR
77	134197700 Frigidaire Burner
79	5303281135 Frigidaire Gas Dryer Flame Sensor Radiant
80	131712405 Frigidaire Tube
85	134287301 Frigidaire SHIELD
86	134264800 Frigidaire Plate
87	5304528020 Frigidaire Cable Tie
