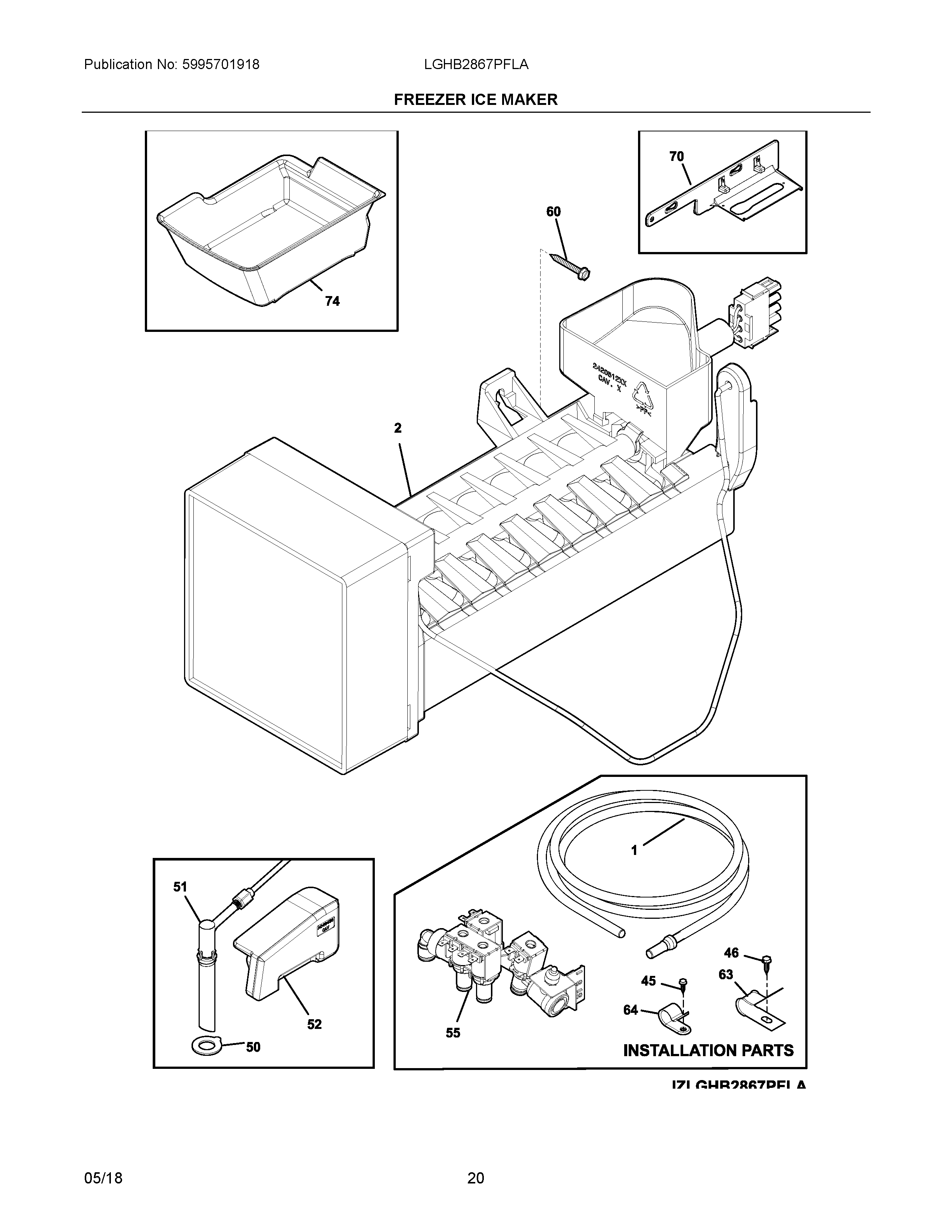

LGHB2867PFLA 10 – FREEZER ICE MAKER

Products

Position	Product
NIA	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIA	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	242200102 Frigidaire Refrigerator Clip
NIB	240363602 Frigidaire Refrigerator Shoulder Screw
1	242220204 Frigidaire Water Inlet Tube
2	241798233 Frigidaire Refrigerator Ice Maker
45	5304455650 Frigidaire Refrigerator Screw
46	5303307980 Frigidaire Oven Screw
50	241512813 Frigidaire Seal Doughnut
51	5303918602 Frigidaire Refrigerator Water Tube Kit
52	5304508046 Frigidaire Refrigerator Insulation
55	QUAD WATER VALVE
60	5304455852 Frigidaire Refrigerator Screw
63	5304455846 Frigidaire Refrigerator Clamp
64	240396801 Frigidaire Refrigerator Tube Clamp
70	242041701 Frigidaire Refrigerator Ice Maker Bracket
74	5304504277 Frigidaire Refrigerator Ice Container
