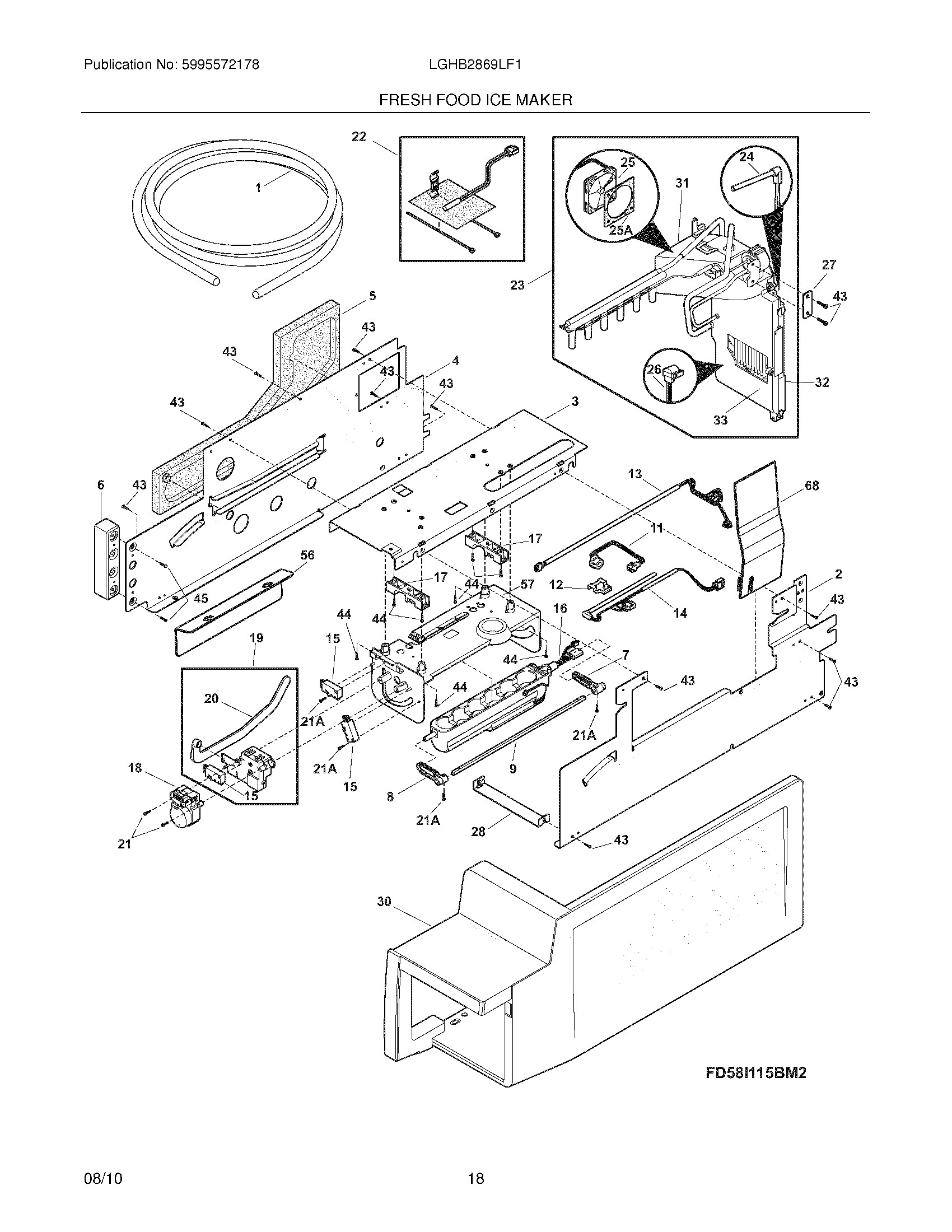

LGHB2869LF1 17 – ICE MAKER

Products

Position	Product
NI	241500305 Frigidaire Refrigerator Screw
NI	241820701 Frigidaire Refrigerator Wiring Harness
NI	WCI 5303918467
NI	Tube-water,5/16 – 67“ ,natural
NI	5303918446 Frigidaire Refrigerator Heat Exchanger
NI	WCI 241518001
NI	Tube-water inlet,44“ ,blue ,valve to I.M.
NI	242082103 Frigidaire Refrigerator Tube
NI	5303918484 Frigidaire Dispenser
NI	241806601 Frigidaire Refrigerator Water Connector
NI	5304455846 Frigidaire Refrigerator Clamp
NI	242220204 Frigidaire Water Inlet Tube
NI	WCI 241870304
NI	WCI 242087401
NI	240396801 Frigidaire Refrigerator Tube Clamp
1	Tube-water,5/16 – 64“ ,yellow ,SD
2	WCI 241937301
3	WCI 241828501
4	WCI 241937501
5	WCI 241870701
6	WCI 241954001
7	WCI 241939001
8	241827701 Frigidaire Refrigerator Bracket
9	WCI 241841701
11	241983101 Frigidaire Refrigerator Switch
12	WCI 241997601
13	241921501 Frigidaire Refrigerator Wiring Harness
14	WCI 241983201
15	WCI 241870101
16	242043902 Frigidaire Refrigerator Tray-Ice
17	WCI 241828101
18	241817701 Frigidaire Refrigerator Ice Maker Motor
19	WCI 241939901
20	241839501 Frigidaire Refrigerator Shut-Off Arm
21	WCI 242024101
21A	WCI 242024401
22	WCI 5303918416
23	5303918444 Frigidaire Refrigerator Evaporator Kit
24	241962501 Frigidaire Refrigerator Defrost Heater
25	WCI 241870801
25A	WCI 241962301
26	WCI 241962601
27	WCI 241963401
28	WCI 241828701
30	WCI 242105601
31	WCI 241925102
32	WCI 241925201
33	WCI 241924701
43	218359202 Frigidaire Refrigerator Screw
44	WCI 241870406
45	5304453707 Frigidaire Oven Screw
56	WCI 241865501
57	241816901 Frigidaire Refrigerator Bracket
68	WCI 241969701
