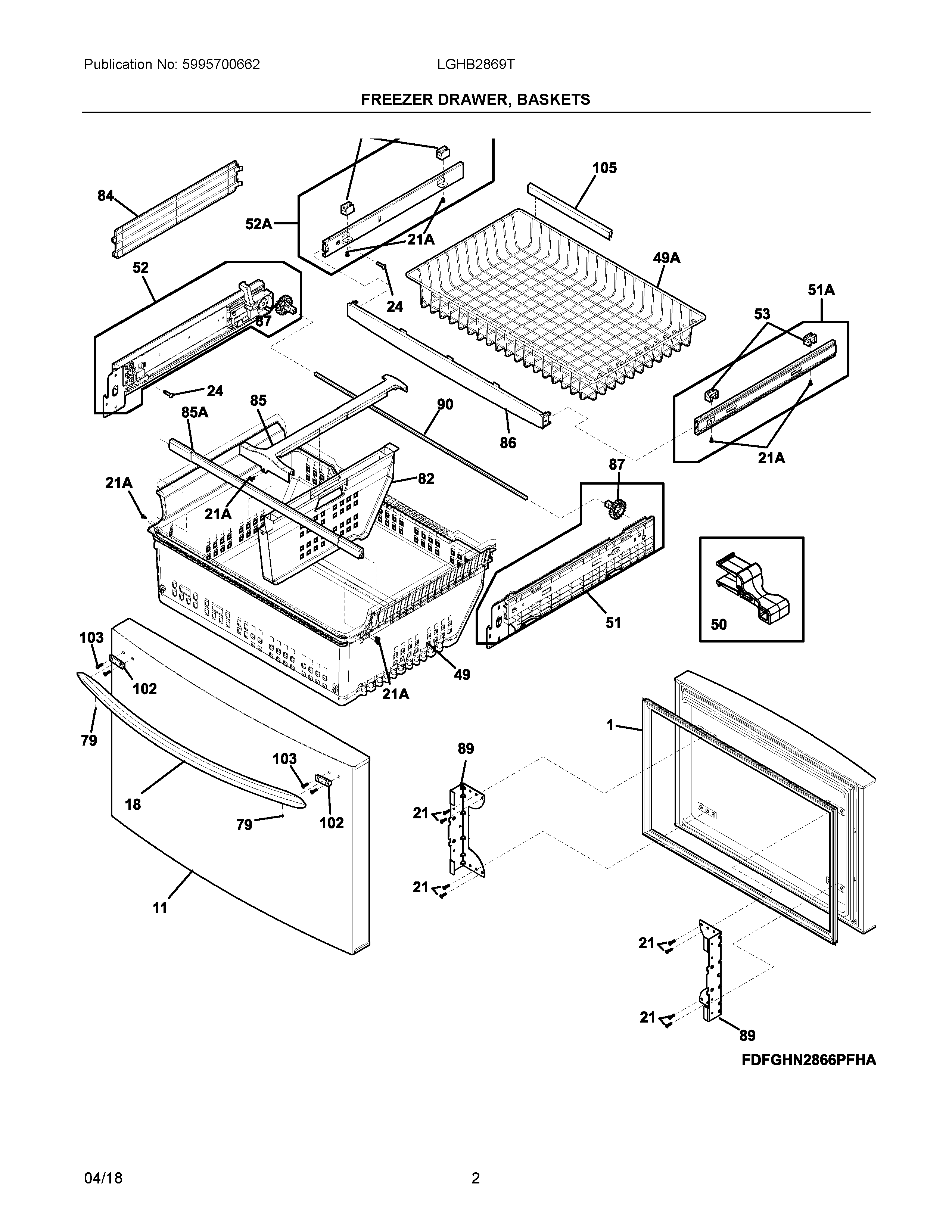

LGHB2869TF1 02 – FREEZER DRAWER, BASKETS

LGHB2869TF1 02 – FREEZER DRAWER, BASKETS

Written by

in

LGHB2869TF1 02 – FREEZER DRAWER, BASKETS

Products

PositionProduct
NIA5304508270 Frigidaire Wrench
NIAA242039701 Frigidaire Refrigerator Screw
NIA242139201 Frigidaire Compression Spring
NIA242039702 Frigidaire Refrigerator Screw
NIA242011101 Frigidaire Refrigerator Pin-Lock
NI242146401 Frigidaire Refrigerator Screw
NI242015001 Frigidaire Refrigerator Screw
1GASKET
11241987944 Frigidaire Refrigerator Drawer
18242029401 Frigidaire Refrigerator Brushed Door Handle
21240383407 Frigidaire Refrigerator Screw
21A241690602 Frigidaire Refrigerator Screw
21A241953902 Frigidaire Refrigerator Screw
24240383412 Frigidaire Refrigerator Screw
445304453707 Frigidaire Oven Screw
49A241780825 Frigidaire Refrigerator Freezer Basket
495304525892 Frigidaire Refrigerator Freezer Basket
505304501271 Frigidaire Shelf Clip
51A5304508096 Frigidaire Refrigerator Slide Assembly
515304507978 Frigidaire Refrigerator Slide Assembly
52A5304508097 Frigidaire Refrigerator Slide Assembly
525304507979 Frigidaire Refrigerator Slide Assembly
535303918801 Frigidaire Refrigerator Retainer Set of 4
79218755402 Frigidaire Refrigerator Set Screw
80218755504 Frigidaire Refrigerator Shoulder Screw
825304503705 Frigidaire Refrigerator Divider
83241812202 Frigidaire Refrigerator Magnet
84241780909 Frigidaire Divider
85242130901 Frigidaire Refrigerator Divider
85A242139301 Frigidaire Refrigerator Support-Beam
865304507340 Frigidaire Refrigerator Trim
875304507999 Frigidaire Refrigerator Pinion
895304509676 Frigidaire Refrigerator Bracket
90241770705 Frigidaire Bar
1025304504279 Frigidaire Handle Base
103242077302 Frigidaire Screw
105242116801 Frigidaire Refrigerator Trim-Basket
