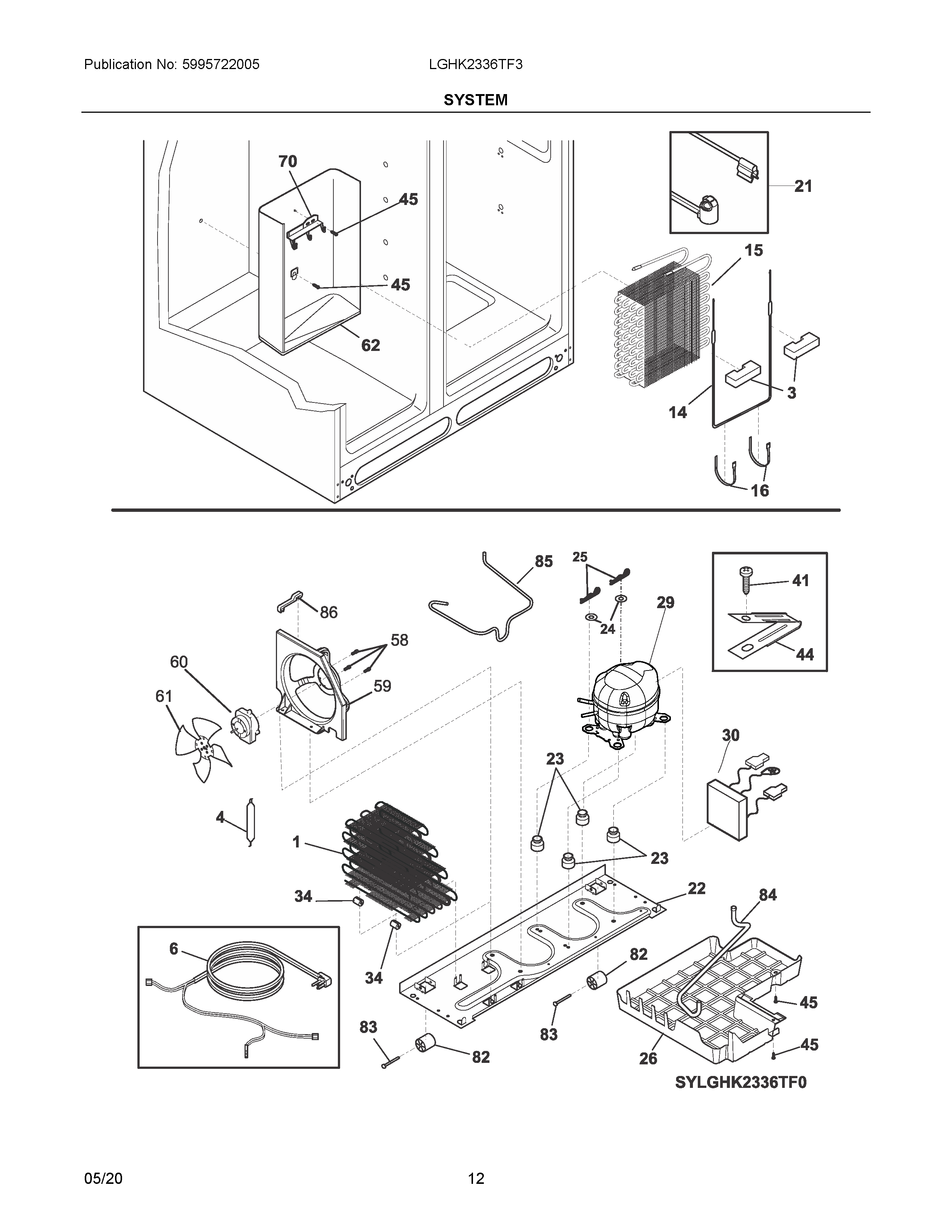

LGHK2336TF3 07 – SYSTEM

LGHK2336TF3 07 – SYSTEM

Written by

in

LGHK2336TF3 07 – SYSTEM

Products

Position	Product
NIA	218252201 Frigidaire Refrigerator Screw
NIA	242036801 Frigidaire Refrigerator Plastic Clip
NIA	240346701 Frigidaire Refrigerator Foam Seal Tape
NIA	5308000039 Frigidaire Refrigerator Screw
NIA	5304521774 Frigidaire Refrigerator Wiring Harness
NI	218709101 Frigidaire Refrigerator Handle Mounting Screw
NIB	240359403 Frigidaire Refrigerator Fan Shroud Screw
NI	5303918328 Frigidaire Refrigerator OS1 Heat Exchanger Kit
1	242106605 Frigidaire Refrigerator Condenser
3	218679614 Frigidaire Refrigerator Evaporator Coil Block
4	5303305677 Frigidaire Replacement Filter Dryer Filters
6	241516904 Frigidaire Refrigerator Service Cord
14	242044113 Frigidaire Refrigerator Defrost Heater Assembly
15	5303918284 Frigidaire Refrigerator Evaporator Kit P-1
16	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
21	5304521285 Frigidaire Refrigerator Harness-Low Side
22	240330014 Frigidaire Refrigerator Compressor Base
23	218513300 Frigidaire Refrigerator Compressor Mount Grommet
24	241812301 Frigidaire Refrigerator Compressor Mount Washer
25	242037702 Frigidaire Refrigerator Spring Clip
26	241697502 Frigidaire Pan-Defrost Drain
29	241547606 Frigidaire Refrigerator Vegd6 Compressor W
30	241577511 Frigidaire Refrigerator Invertor
34	240405201 Frigidaire Refrigerator Grommet
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
44	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
45	241500303 Frigidaire Refrigerator Screw
58	240569202 Frigidaire Refrigerator Screw
59	241946106 Frigidaire Refrigerator Shroud-Cond Fan
60	MOTOR-CONDENSER FAN
61	241639502 Frigidaire Refrigerator Condenser Fan Blade
62	240429406 Frigidaire Refrigerator Trough-Drain
70	218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
84	241830905 Frigidaire Lower Drain Tube
85	241856909 Frigidaire Refrigerator Connector Tube
86	240409302 Frigidaire Refrigerator Condenser Tube Spacer
