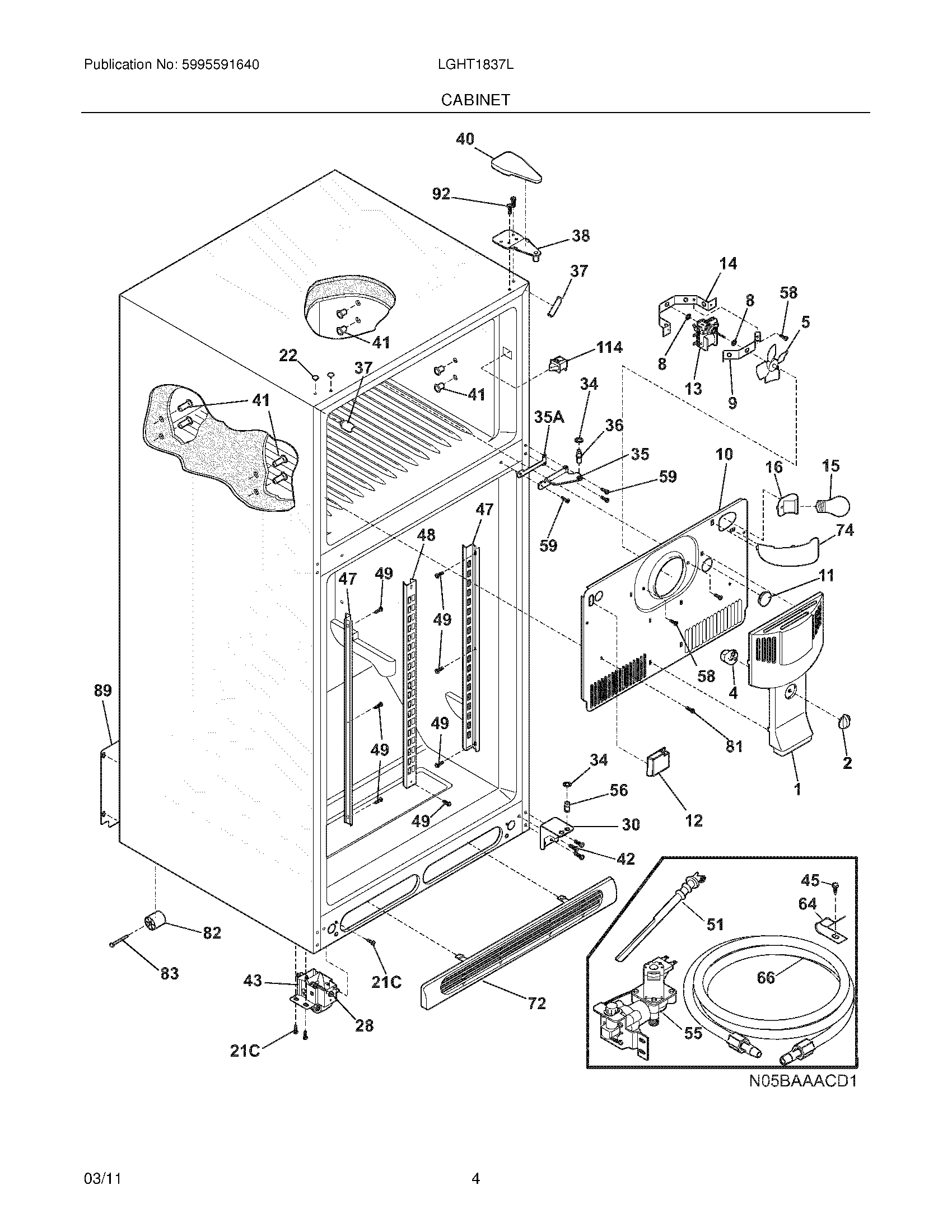

LGHT1837LP3 05 – CABINET

Products

Position	Product
NI	240433204 Frigidaire Refrigerator Screw
NI	240561701 Frigidaire Refrigerator Seal
NI	5303321319 Frigidaire Refrigerator White Touch Up Paint
NI	215474201 Frigidaire Refrigerator Washer
NI	Clamp-motor wiring,nylon ,w/adhesive tape
NI	5304434189 Frigidaire Refrigerator Seal Kit
NI	241500305 Frigidaire Refrigerator Screw
1	241652301 Frigidaire 241259700 Evaporator Fan Cover
2	240367001 Frigidaire Refrigerator Air Damper Control Knob
4	WCI 241523701
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
8	240438003 Frigidaire Refrigerator Bracket & Bushing
9	WCI 5303292396
10	WCI 241652213
11	5303208309 Frigidaire Refrigerator Plug Hole
12	242210102 Frigidaire Refrigerator Cover
13	241854501 Frigidaire Refrigerator Evaporator Motor Fan
15	5304511738 Frigidaire Refrigerator Light Bulb
16	218906802 Frigidaire Light Lamp Socket
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	WCI 240313806
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	5303918606 Frigidaire Refrigerator Corner Cabinet Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
43	5304499445 Frigidaire Refrigerator Roller Assembly
45	241500303 Frigidaire Refrigerator Screw
47	WCI 218233301
48	WCI 5303292395
49	218362501 Frigidaire Refrigerator Screw
51	241796405 Frigidaire Refrigerator Fill Water Tube
55	ICE MAKER WATER VALVE
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	WCI 5304456287
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
64	5304455846 Frigidaire Refrigerator Clamp
66	241850615 Frigidaire Ice Maker Fill Tube Assembly
72	241839405 Frigidaire Refrigerator Kickplate/Grille
74	WCI 240354302
81	5304455650 Frigidaire Refrigerator Screw
82	5304418225 Frigidaire Refrigerator Roller P-1
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
114	241554901 Frigidaire Refrigerator Light/Lamp Switch
