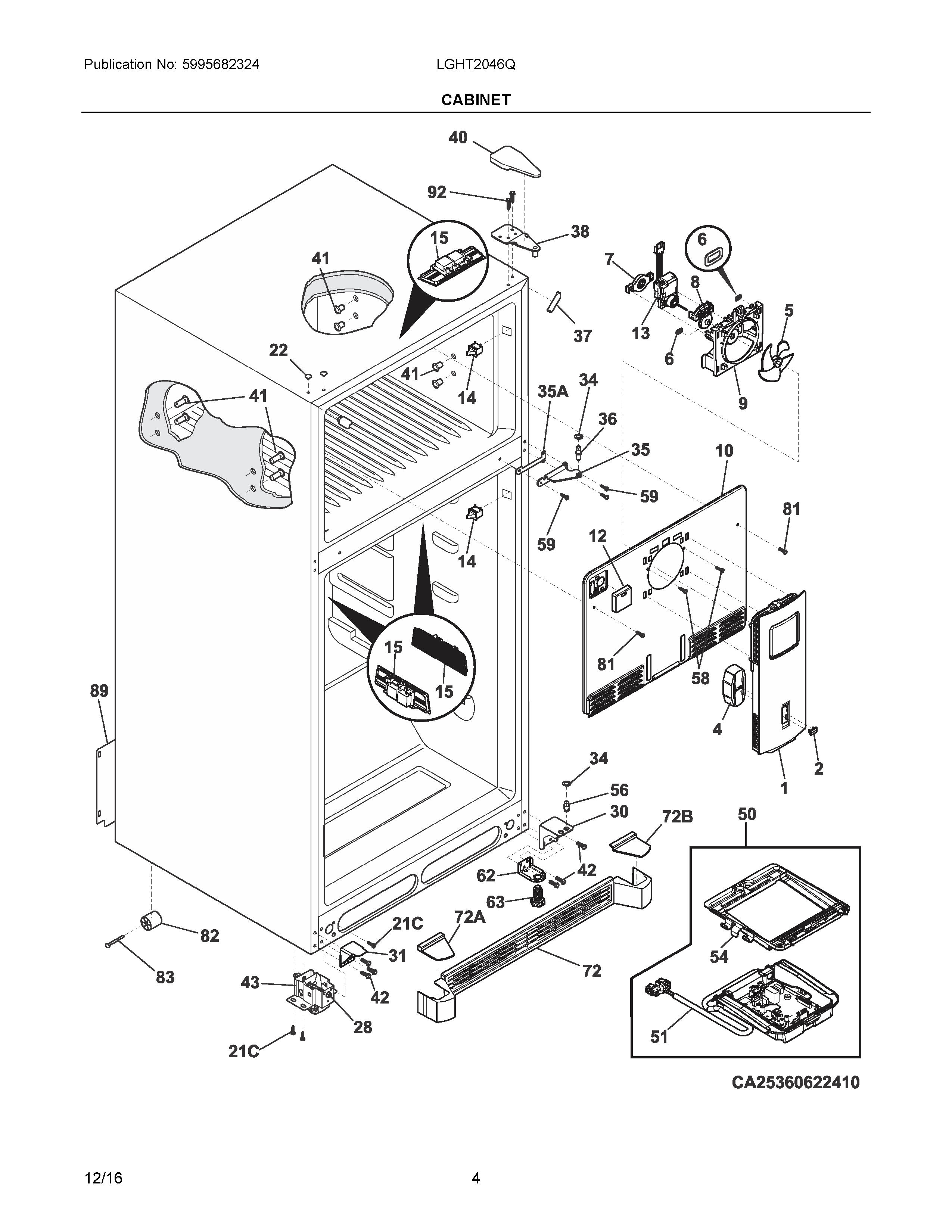

LGHT2046QP1 03 – CABINET

LGHT2046QP1 03 – CABINET

Written by

in

LGHT2046QP1 03 – CABINET

Products

Position	Product
NIA	218515401 Frigidaire Refrigerator Clip
NIC	5304521789 Frigidaire Refrigerator Harness
NI	218990901 Frigidaire Clip
NIA	240568606 Frigidaire Refrigerator Coil Cover Seal
NIA	WCI 5304498949
NI	CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL
NIA	241500303 Frigidaire Refrigerator Screw
NI	240494001 Frigidaire Refrigerator Plug Button
NIB	5304453707 Frigidaire Oven Screw
1	5303918833 Frigidaire Refrigerator Cover Assembly Kit
2	242229401 Frigidaire Refrigerator Knob
4	242294704 Frigidaire Refrigerator Fan Cover & Damper
5	242219302 Frigidaire Refrigerator Evaporator Fan Blade
6	5304497413 Frigidaire Refrigerator Ring
7	242287501 Frigidaire Refrigerator Grommet
8	242237301 Frigidaire Grommet
9	242229301 Frigidaire Refrigerator Shroud Bracket
10	242239404 Frigidaire Refrigerator Cover
12	5304498990 Frigidaire Refrigerator Cover
13	242077705 Frigidaire Refrigerator Fan Motor
14	241554901 Frigidaire Refrigerator Light/Lamp Switch
15	LIGHT ASSEMBLY, LED, W/LENS & BOARD
21C	218252201 Frigidaire Refrigerator Screw
22	215774901 Frigidaire Refrigerator Button Plug
28	5304499445 Frigidaire Refrigerator Roller Assembly
30	240314011 Frigidaire Refrigerator Lower Bracket Hinge
31	SUPPORT, COVER, TOE GRILLE
34	240311303 Frigidaire Refrigerator Hinge Nylon Washer
35	240313802 Frigidaire Refrigerator Center Hinge Bracket
35A	240336802 Frigidaire Refrigerator Hinge Spacer
36	241708002 Frigidaire Refrigerator Center Hinge Pin
37	242161201 Frigidaire Refrigerator Cabinet Corner Trim
38	240313703 Frigidaire Refrigerator Hinge
40	240354401 Frigidaire Upper Hinge Cover
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	240578902 Frigidaire Screw Mounting Hinge
50	5303918679 Frigidaire Refrigerator Control and Housing
51	809170801 Frigidaire Refrigerator Harness
54	807854301 Frigidaire Refrigerator Support
56	240516502 Frigidaire Refrigerator Lower Hinge Pin
58	240433204 Frigidaire Refrigerator Screw
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
62	BRACKET, ANTI TIP, BLACK
63	5304498951 Frigidaire Refrigerator Screw
72	5304498916 Frigidaire Refrigerator Toe Grille
72A	WCI 5304498918
72B	WCI 5304498919
81	5304455650 Frigidaire Refrigerator Screw
82	240335202 Frigidaire Refrigerator Roller
83	5304455655 Frigidaire Refrigerator Rivet
89	241733911 Frigidaire Refrigerator Access Cover
92	241710601 Frigidaire Refrigerator Screw
