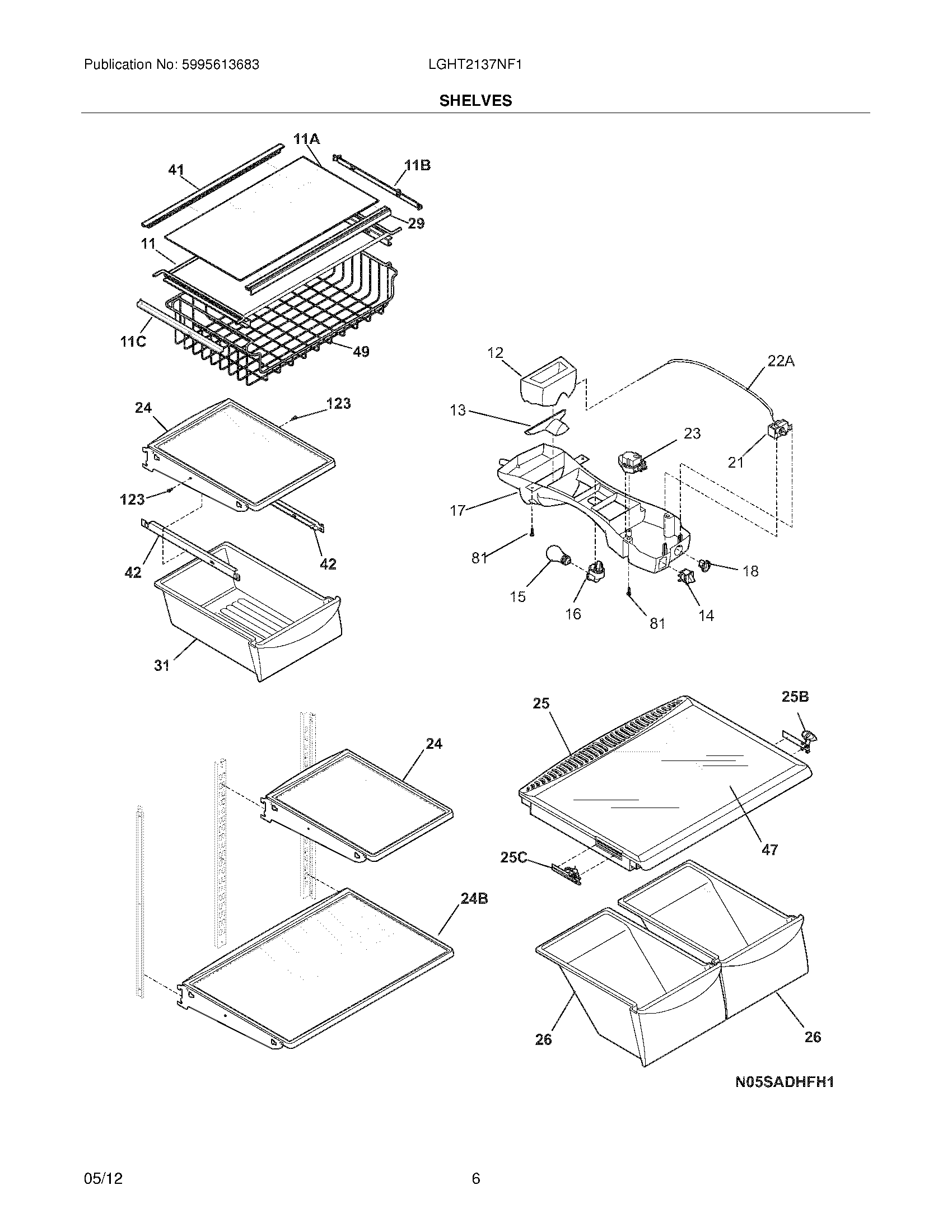

LGHT2137NF1 07 – SHELVES

LGHT2137NF1 07 – SHELVES

Written by

in

LGHT2137NF1 07 – SHELVES

Products

PositionProduct
NI5304455649 Frigidaire Refrigerator Screw
NI5304535377 Frigidaire Aluminum Tape
NI240388701 Frigidaire Refrigerator Wiring Harness
NIWCI 242146243
11Frame-shelf,full width
11AGlass-shelf,full shelf
11BCover,hanger rh ,wire basket
11CCover,hanger lh ,wire basket
12240545901 Frigidaire Refrigerator Air Diffuser
13240362601 Frigidaire Refrigerator P1 Diffuser
14241554901 Frigidaire Refrigerator Light/Lamp Switch
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17240368105 Frigidaire Refrigerator Control Box
18Knob-control
21241537103 Frigidaire Refrigerator Temperature Control Thermostat
22A240468202 Frigidaire Refrigerator Tube
23215846604 Frigidaire Refrigerator Defrost Timer
24240355261 Frigidaire Refrigerator "Spill-Safe" Shelf
24BWCI 240408909
25B241613501 Frigidaire Refrigerator Humidity Control Crisper Drawer
25C241613502 Frigidaire Refrigerator Humidity Control Crisper Drawer
25COVER-CRISPER PAN
26CRISPER PAN
29TRIM-SHELF, FRONT
31MEAT PAN
41TRIM-SHELF, REAR
42240356501 Frigidaire Tray Hanger Pan
42240365401 Frigidaire Refrigerator Meat Pan Tray Hanger Left Hand
47240350609 Frigidaire Refrigerator Crisper Cover Glass Shelf Insert
49WCI 241833201
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
