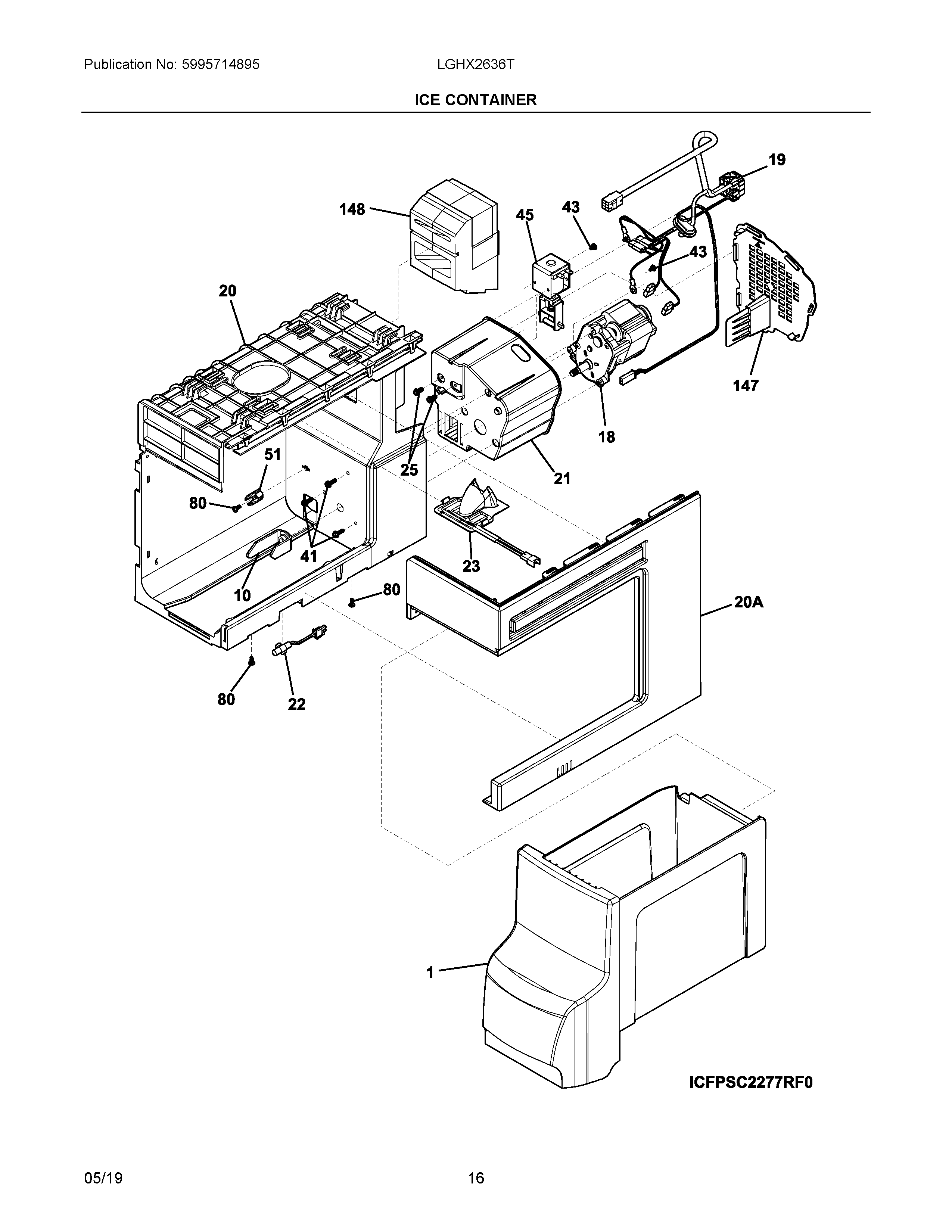

LGHX2636TD8 09 – ICE CONTAINER

Products

Position	Product
NIA	241519401 Frigidaire Refrigerator Clip
1	5304522718 Frigidaire Ice Container Assembly
10	241829001 Frigidaire Refrigerator Bar Drive
18	241816602 Frigidaire Refrigerator Motor-AUGER
19	5304521770 Frigidaire Refrigerator Harness
20	242303501 Frigidaire Refrigerator Housing
20A	242303601 Frigidaire Refrigerator Housing
21	242305203 Frigidaire Refrigerator Motor-Cover Housing
22	240597220 Frigidaire Sensor
23	5304504455 Frigidaire Refrigerator Fill Cup
25	240555005 Frigidaire Refrigerator Screw
41	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
43	218359202 Frigidaire Refrigerator Screw
45	241675704 Frigidaire Refrigerator Solenoid Assembly
51	242095501 Frigidaire Refrigerator Anti-Twist Buck Pin
80	241953908 Frigidaire Refrigerator Screw
147	5304504451 Frigidaire Refrigerator Motor
148	5304504447 Frigidaire Refrigerator Duct Air
