LGHX2636TFA 08 – ICE & WATER DISPENSER

LGHX2636TFA 08 – ICE & WATER DISPENSER

Written by

in

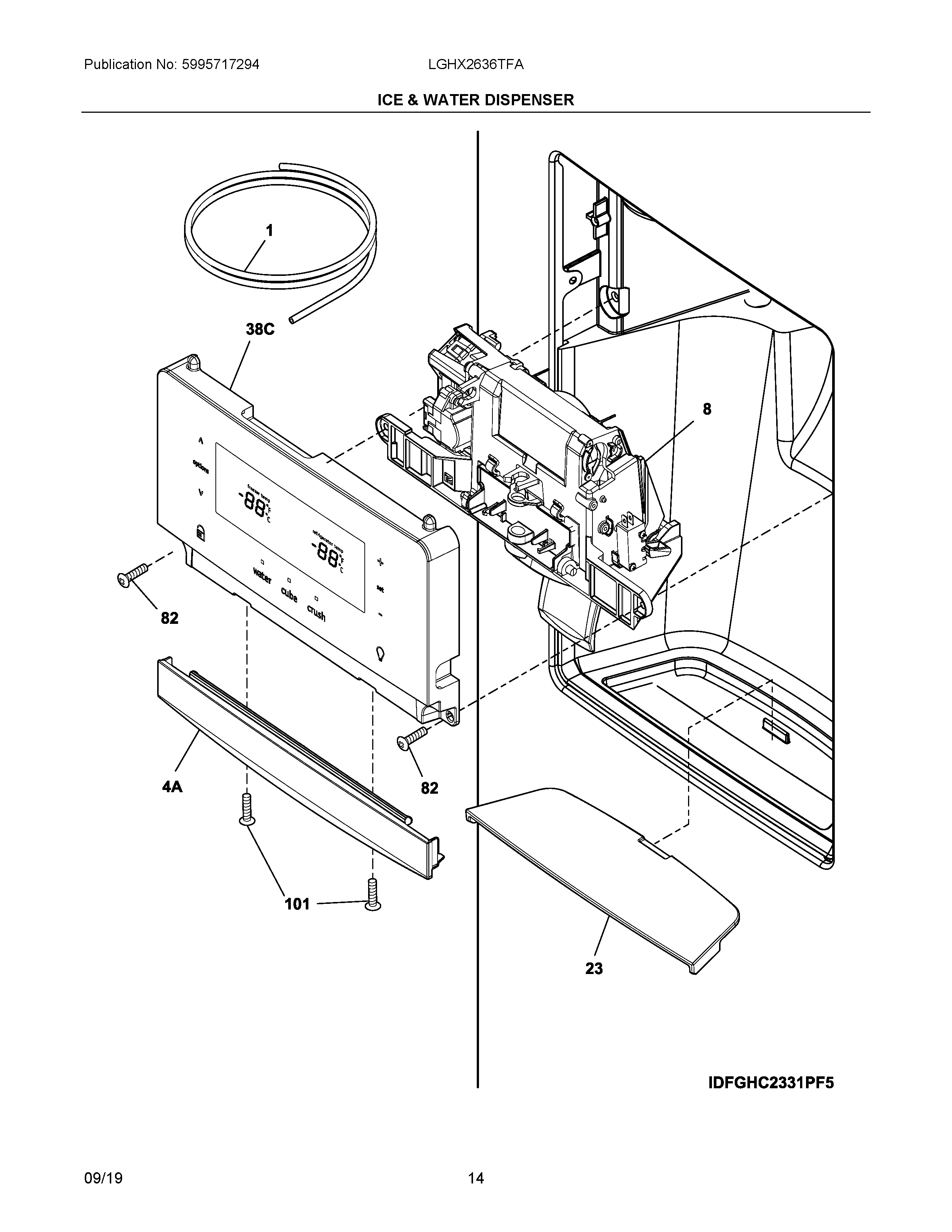

LGHX2636TFA 08 – ICE & WATER DISPENSER

Products

PositionProduct
NIB242200102 Frigidaire Refrigerator Clip
NI5304520997 Frigidaire Cover
NIA218976439 Frigidaire Refrigerator Water Inlet Tube
NI5304521767 Frigidaire Refrigerator Harness
NI5303918744 Frigidaire Refrigerator Kit
1218976438 Frigidaire Refrigerator Tube
4A242194301 Frigidaire Refrigerator Trim
8AMODULE ASSEMBLY,I&W,CLEAR
8242270107 Frigidaire Refrigerator Dispenser Switch and Leveler
23242176503 Frigidaire Refrigerator Sump
38C5304512624 Frigidaire Refrigerator Control Assembly
82241953902 Frigidaire Refrigerator Screw
