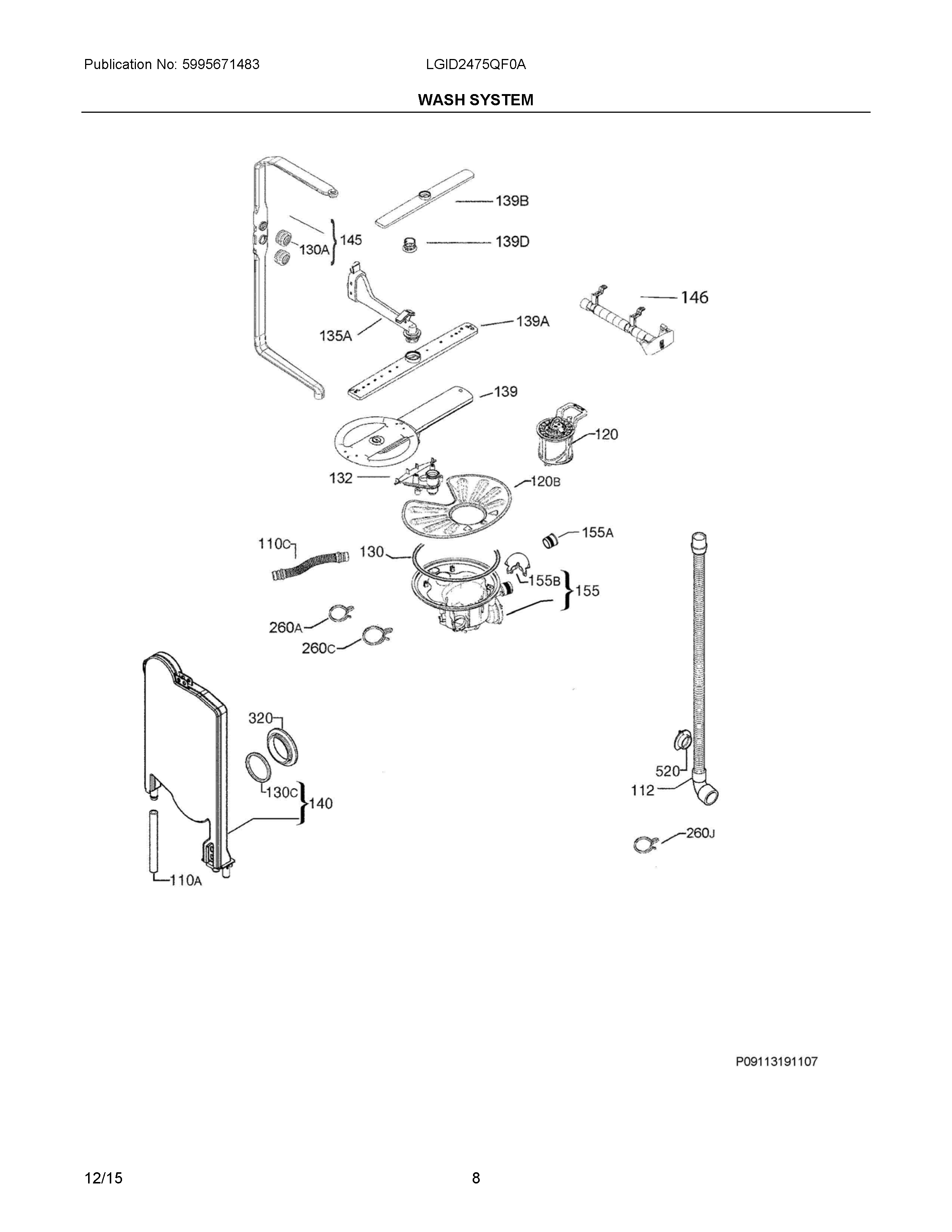

LGID2475QF0A 05 – WASH SYSTEM

Products

PositionProduct
NISCREW, SUMP, 4 X 15, (4), & SPRAY ARM
110CA00005903 Frigidaire Dishwasher Hose
110A807526501 Frigidaire Dishwasher Tubing Assembly
112807032601 Frigidaire Dishwasher Hose
120A00201409 Frigidaire Dishwasher Drain Filter
120BWCI 111920904
130111918600 Frigidaire Dishwasher O-Ring
130AA00045701 Frigidaire Dishwasher Seal
130CWCI 5065923100
132WCI 111915813
135AA00060302 Frigidaire Dishwasher Duct
139D807035801 Frigidaire Wash Arm Bearing
139B807382106 Frigidaire Dishwasher Upper Spray Arm
139A808321102 Frigidaire Dishwasher Spray Arm
139111920868 Frigidaire Lower Wash Arm
140WCI 117048176
145A00023201 Frigidaire Dishwasher Spray Arm Manifold
146807036105 Frigidaire Dishwasher Arm Assembly
155B111917701 Frigidaire Dishwasher Screen
155AA00053601 Frigidaire Dishwasher Flapper
1555304520660 Frigidaire Dishwasher Sump Assembly
260C807868903 Frigidaire Dishwasher Clamp
260A807868902 Frigidaire Dishwasher Clamp
260J807868901 Frigidaire Dishwasher Clamp
320152627221 Frigidaire Dishwasher GRILL
520807201901 Frigidaire Dishwasher Flange
