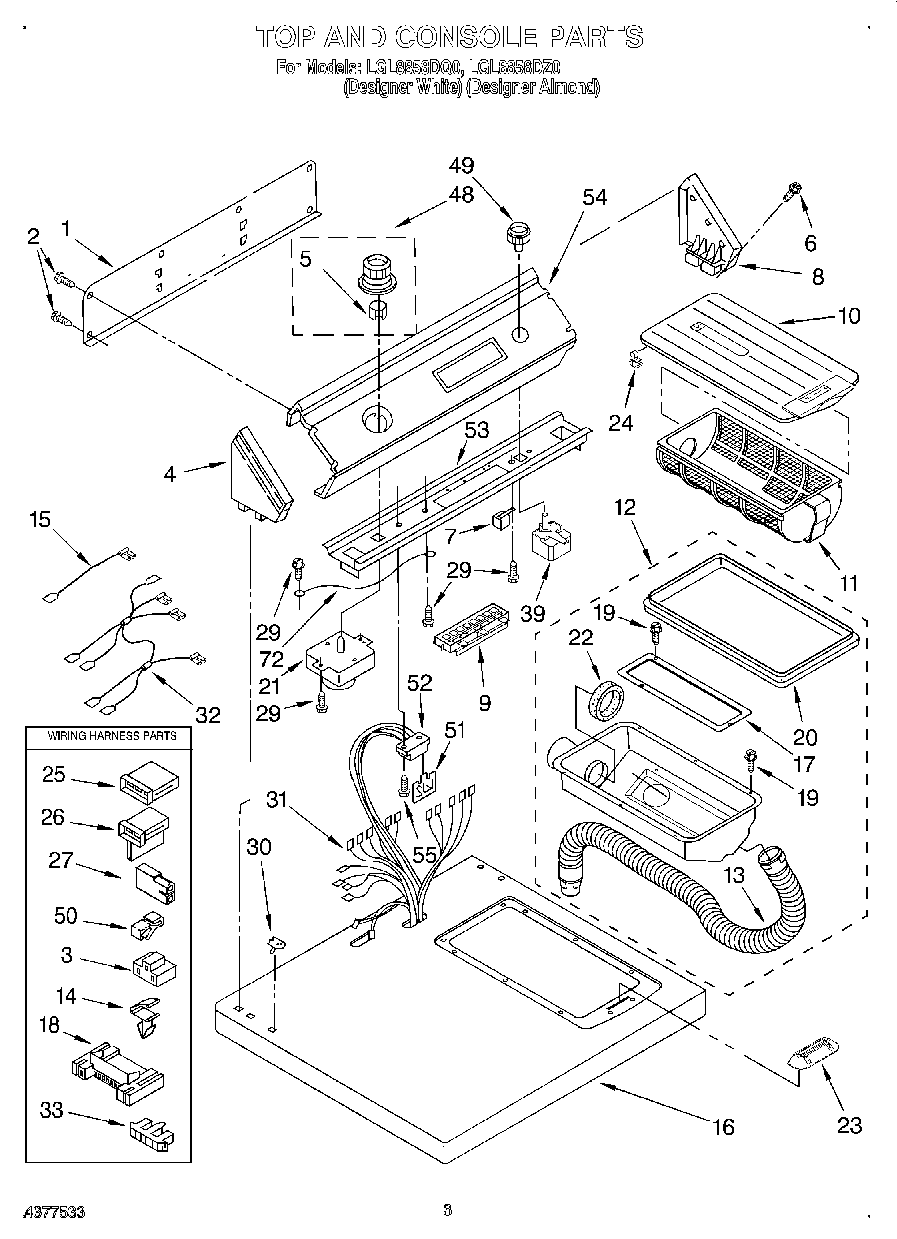

LGL8858DQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

LGL8858DQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Written by

in

LGL8858DQ0 02 – TOP AND CONSOLE, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Dryer
Almond (Uncut)
WPL LIT3401725
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3401091
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL LIT3403153
350938 Whirlpool Spray Gun
1Panel, Rear Console
2WP693995 Whirlpool Screw
33401144 Whirlpool Connector
4Cap, End (L.H.) (Almond)
4Cap, End (L.H.)
5WP688805 Whirlpool Spring Clip
6WP388326 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8Cap, End (R.H.)
8Cap, End (R.H.) (Almond)
9Switch, Clean Touch (White)
9Switch, Clean-Touch (Almond)
10Lid Assembly (Almond)
10Lid Assembly (White)
11Basket, Collector
12Tray Assembly (Complete)
13Tube, Recirculation
14WP3394427 Whirlpool Clip
15Wire, Jumper (Violet)
15Wire, Jumper (Blue)
16Top (White)
16Top (Almond)
17Plate, Bottom Tray
183395683 Whirlpool Connector
19Screw, 8-18 x 1/2
20Seal, Lid
21WP3397273 Whirlpool Timer
22Seal (Tray To Basket)
23Magnetic Latch Assembly (White)
23Magnetic Latch Assembly (Almond)
24Hinge, Lid (2)
25WP3403498 Whirlpool Connector
26WP3403499 Whirlpool Connector
27Receptacle, Latching (2-Way) (Uses Terminal 94614)
29WPW10139210 Whirlpool Screw
30WP357213 Whirlpool Hinge Stopper
31Harness, Wiring
32Wire, Jumper (Signal Bypass)
33Connector, Timer
39WP3398094 Whirlpool Push To Start Switch
48WP3957752 Whirlpool Knob
483957753 Whirlpool Knob
49WP3957800 Whirlpool Knob
50Clip, Retainer
51WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
523391885 Whirlpool Connector
53Bracket, Control
54Panel, Control (White)
54Panel, Control (Almond)
55SCREW
72Wire, Ground
