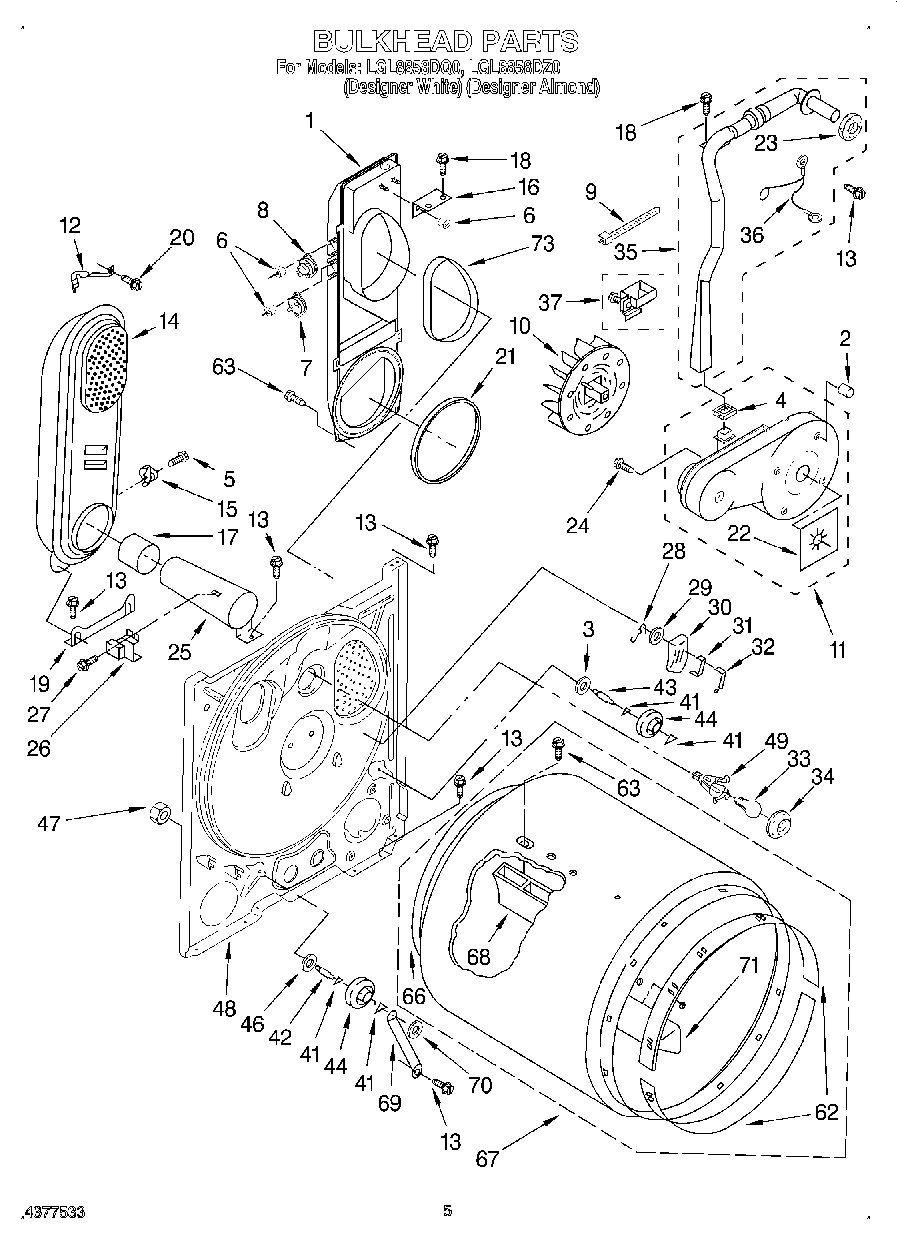

LGL8858DQ0 03 – BULKHEAD

Products

PositionProduct
1Lint Chute Assembly (Includes Illus. Nos. 6, 16 & 21)
2W10491983 Whirlpool Tine Tip
3WP3388703 Whirlpool Washer
4Seal, Transport Tube (Lower)
5WP90767 Whirlpool Screw
6WP488130 Whirlpool Air Conditioner Nut
7Thermal Fuse
8THRMST-FIX
9CABLE TIE
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
15W11050897 Whirlpool Dryer High Limit Thermostat
16Bracket, Lint Chute
18WP693995 Whirlpool Screw
19Support, Heater Box
20WP489463 Whirlpool Refrigerator Screw
21W11415783 Whirlpool Seal
22Seal, Blower
23Seal, Transport Tube (Upper)
24SCREW
25279900 Whirlpool Box O/S1
26WP338906 Whirlpool Dryer Gas Sensor
27WP3390631 Whirlpool Screw
28WP342267 Whirlpool Clip
29WP298877 Whirlpool Washer
30SENSOR KIT
31WP348859 Whirlpool Electrode Assembly
32WP348860 Whirlpool Electrode
33RANGE ONLY 40W 120V APPL BULB
34Lens, Drum Light
35Transport Tube Assembly
36Tether, Cable
37Retainer Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
49Socket Assembly
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66279408 Whirlpool Dryer Rear Drum Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
