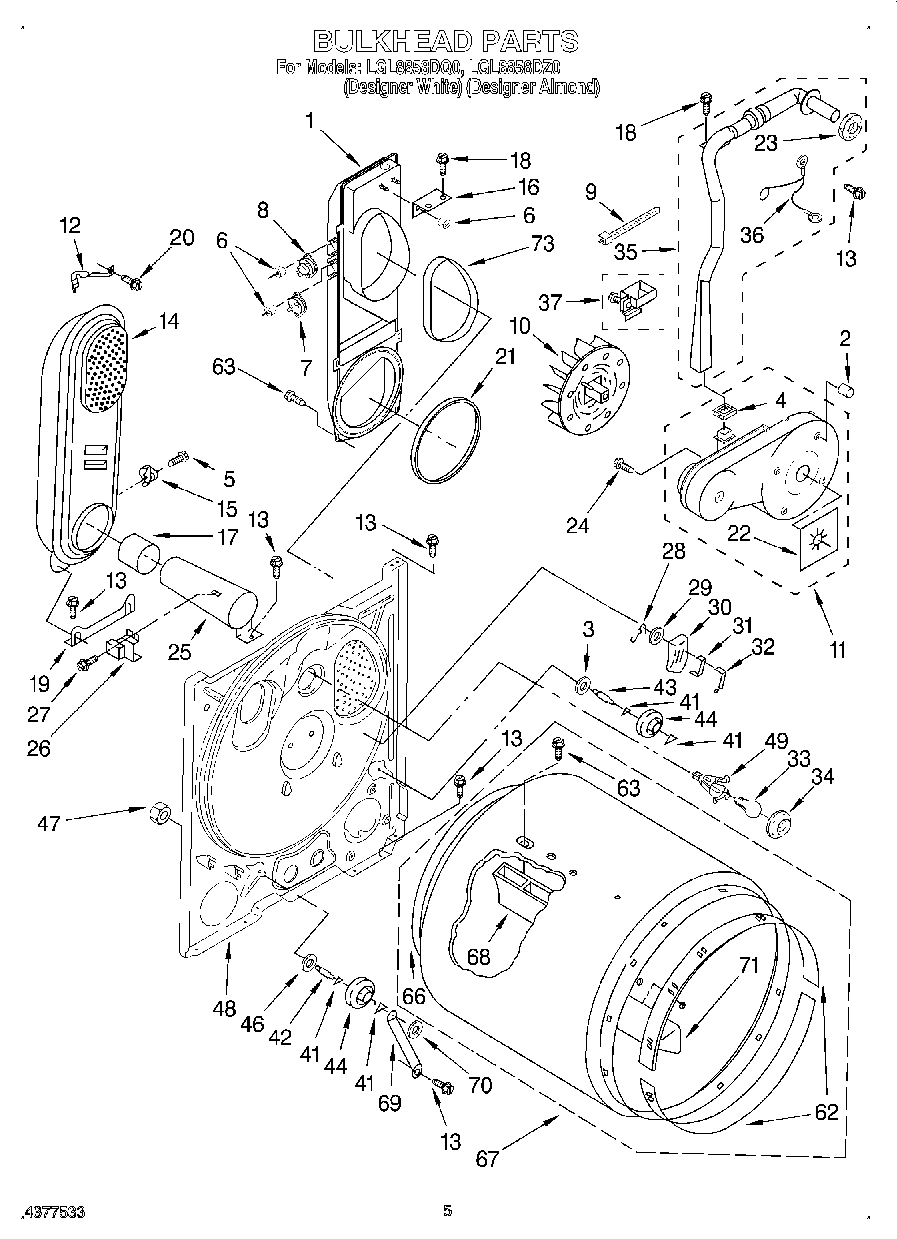

| 1 | Lint Chute Assembly (Includes Illus. Nos. 6, 16 & 21) |
| 2 | W10491983 Whirlpool Tine Tip |
| 3 | WP3388703 Whirlpool Washer |
| 4 | Seal, Transport Tube (Lower) |
| 5 | WP90767 Whirlpool Screw |
| 6 | WP488130 Whirlpool Air Conditioner Nut |
| 7 | Thermal Fuse |
| 8 | THRMST-FIX |
| 9 | CABLE TIE |
| 10 | WP694089 Whirlpool Dryer Blower Wheel |
| 11 | Housing, Blower |
| 12 | 279771 Whirlpool Clip |
| 15 | W11050897 Whirlpool Dryer High Limit Thermostat |
| 16 | Bracket, Lint Chute |
| 18 | WP693995 Whirlpool Screw |
| 19 | Support, Heater Box |
| 20 | WP489463 Whirlpool Refrigerator Screw |
| 21 | W11415783 Whirlpool Seal |
| 22 | Seal, Blower |
| 23 | Seal, Transport Tube (Upper) |
| 24 | SCREW |
| 25 | 279900 Whirlpool Box O/S1 |
| 26 | WP338906 Whirlpool Dryer Gas Sensor |
| 27 | WP3390631 Whirlpool Screw |
| 28 | WP342267 Whirlpool Clip |
| 29 | WP298877 Whirlpool Washer |
| 30 | SENSOR KIT |
| 31 | WP348859 Whirlpool Electrode Assembly |
| 32 | WP348860 Whirlpool Electrode |
| 33 | RANGE ONLY 40W 120V APPL BULB |
| 34 | Lens, Drum Light |
| 35 | Transport Tube Assembly |
| 36 | Tether, Cable |
| 37 | Retainer Assembly |
| 41 | WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller |
| 42 | SHAFT SUPPORT ROLLER DRYER |
| 43 | SHAFT SUPPORT ROLLER DRYER |
| 44 | 349241T Whirlpool Dryer Drum Support Roller Kit |
| 46 | WP348197 Whirlpool Washer Assembly |
| 47 | WP3359452 Whirlpool Nut |
| 48 | Bulkhead |
| 49 | Socket Assembly |
| 62 | 279441 Whirlpool Front Bearing Ring |
| 63 | WPW10109200 Whirlpool Screw |
| 66 | 279408 Whirlpool Dryer Rear Drum Seal |
| 67 | W10899578 Whirlpool Dryer Drum Assembly |
| 68 | BAFFLE-DRM |
| 69 | W11684613 Whirlpool Bracket |
| 70 | WP90296 Whirlpool Clip |
| 71 | WP3403636 Whirlpool Drum Baffle |
| 73 | SEAL |
