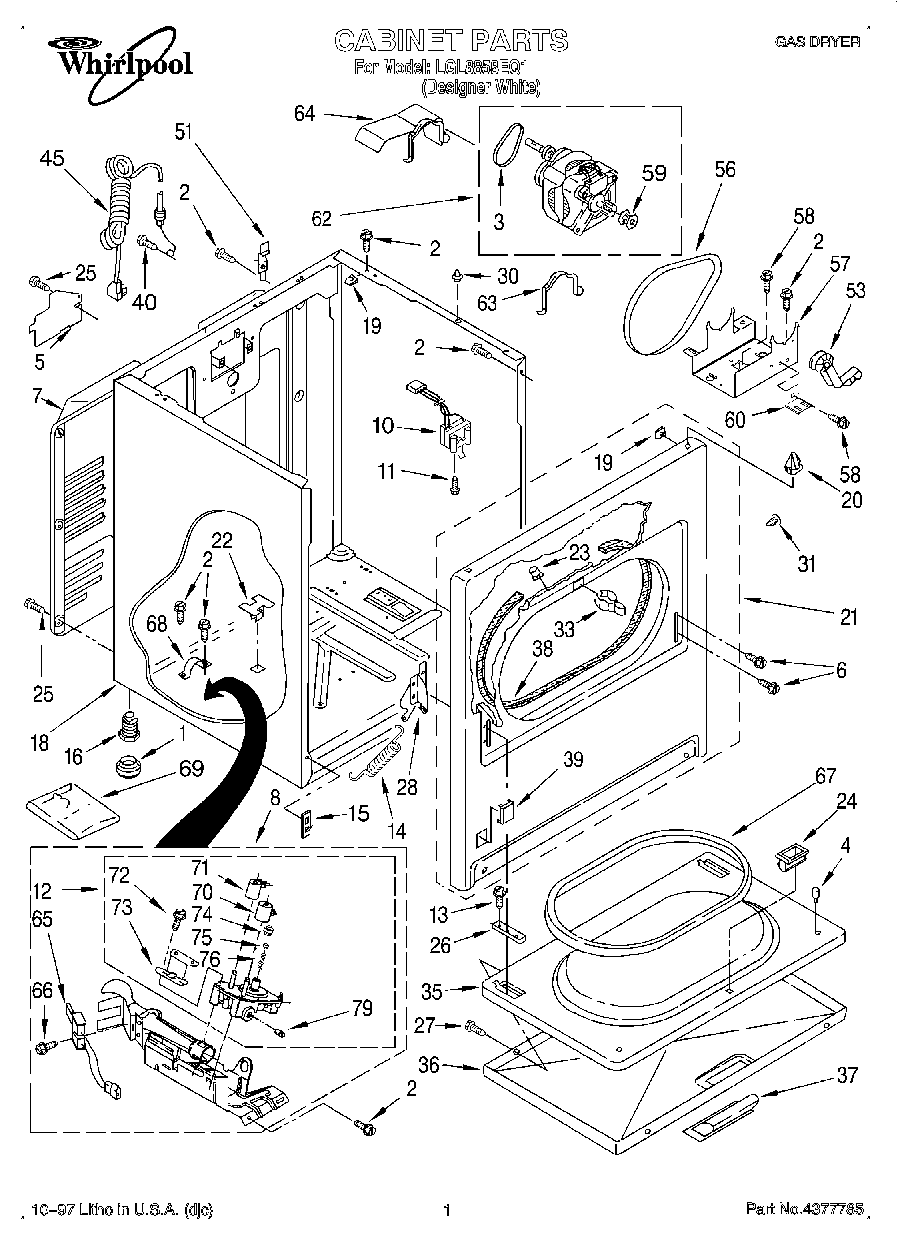

LGL8858EQ1 01 – CABINET

LGL8858EQ1 01 – CABINET

Written by

in

LGL8858EQ1 01 – CABINET

Products

PositionProduct
1WP3391943 Whirlpool Foot Boot
2SCREW
3WP3405160 Whirlpool Belt Assembly
4238614 Whirlpool Bumper Hinge
5W11539855 Whirlpool Refrigerator Pump
6Screw, 10-32 x 1/2
7280043 Whirlpool Rear Panel
8WPL 3402844
10WP3406107 Whirlpool Dryer Door Switch
11WP3395530 Whirlpool Screw
12279923 Whirlpool Gas Valve
13WP308685 Whirlpool Microwave Screw
14WPW10041960 Whirlpool Door Spring
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21279740 Whirlpool Panel Primary with O/S2
22Plug, Cabinet
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
25WP693995 Whirlpool Screw
26W11252547 Whirlpool Clip Assembly
27WP694091 Whirlpool Screw
28WP8066056 Whirlpool Door Hinge
28WP8066057 Whirlpool Door Hinge
30Locator, Top
31WP3404413 Whirlpool Plug
35WP695737 Whirlpool Door
36WP3393549 Whirlpool Door Assembly
37WP348721 Whirlpool Handle
38W11035878 Whirlpool Bearing and Seal
39Plug, Front Panel (White)
40W10850756 Whirlpool Screw
45W11222083 Whirlpool Power Cord
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57Base, Motor
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
603401805 Whirlpool Bracket
62WPW10396039 Whirlpool Drive Motor
63WP660658 Whirlpool Clamp
643401800 Whirlpool Shield
65279311 Whirlpool Dryer Flat Igniter with Bracket
66WPW10366705 Whirlpool Screw
67W10906683 Whirlpool Door Seal
68341029 Whirlpool Clamp
6949572A Whirlpool Dryer Propane Gas Conversion Kit
70279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
72694421 Whirlpool Screw Assembly
73694538 Whirlpool Bracket
74WP694424 Whirlpool Limiter
75WP694423 Whirlpool Regulator
76WP694422 Whirlpool Spring
79W10295523 Whirlpool Plug
