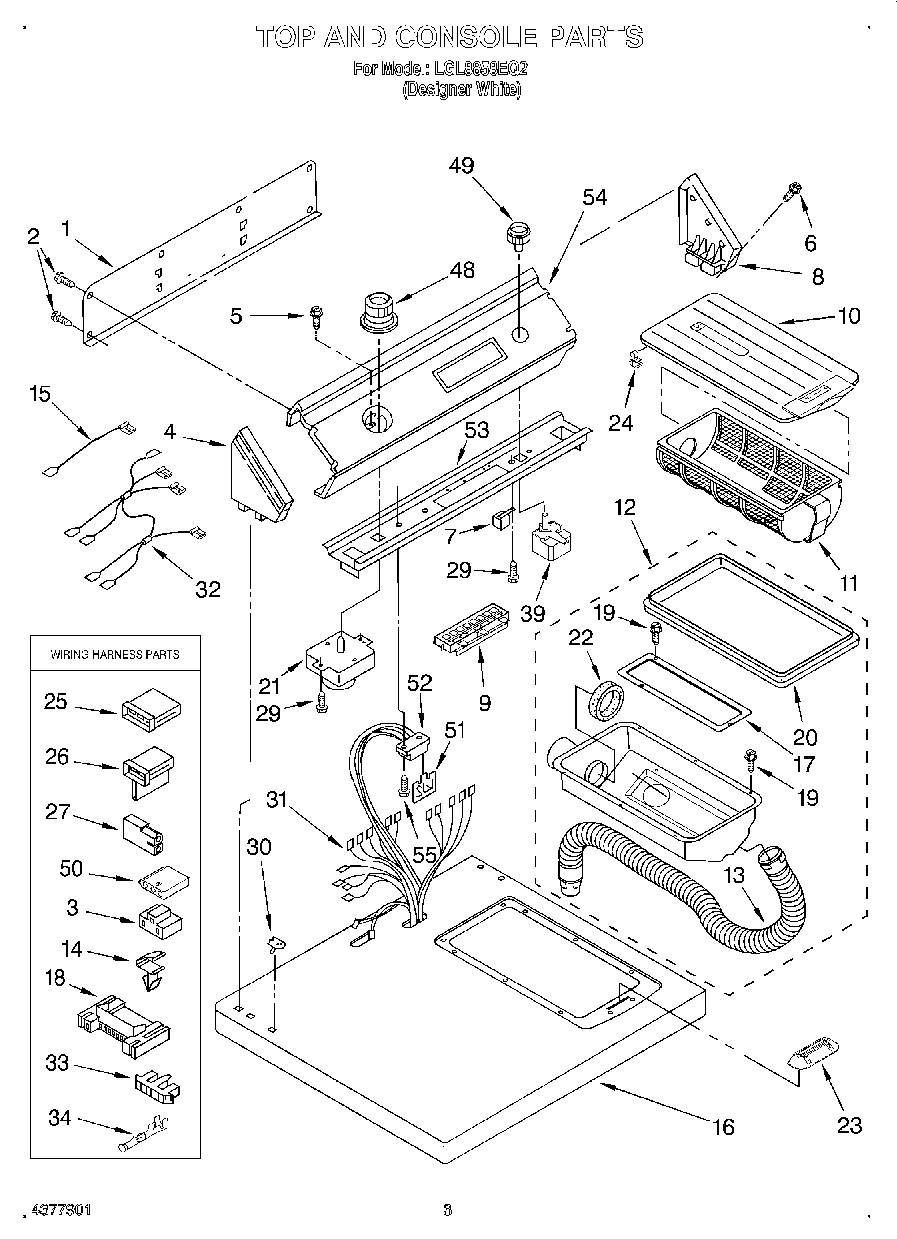

LGL8858EQ2 02 – TOP AND CONSOLE, OPTIONAL

Products

Position	Product
	Dryer
1	Panel, Rear Console
2	WP693995 Whirlpool Screw
3	3401144 Whirlpool Connector
4	Cap, End (L.H.)
5	3400859 Whirlpool Screw
6	WP388326 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	Cap, End (R.H.)
9	Switch, Clean Touch (White)
10	Lid Assembly (White)
11	Basket, Collector
12	Tray Assembly (Complete) (Also Includes Transport Tube)
13	Tube, Recirculation
14	WP3394427 Whirlpool Clip
15	Wire, Jumper (Blue)
15	Wire, Jumper (Violet)
16	Top (White)
17	Plate, Bottom Tray
18	3395683 Whirlpool Connector
19	WP488729 Whirlpool Refrigerator Door Screw
20	Seal, Lid
21	WP3976570 Whirlpool Timer
22	Seal (Tray To Basket)
23	Magnetic Latch Assembly (White)
24	Hinge, Lid (2)
25	WP3403498 Whirlpool Connector
26	WP3403499 Whirlpool Connector
27	Receptacle, Latching (2-Way) (Uses Terminal 94614)
29	WPW10139210 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	Wire, Jumper (Signal Bypass)
33	Connector, Timer
34	WP94614 Whirlpool Terminal
39	WP3398094 Whirlpool Push To Start Switch
48	WP3957752 Whirlpool Knob
49	WP3957800 Whirlpool Knob
50	3936144 Whirlpool Connector
51	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
52	3391885 Whirlpool Connector
53	Bracket, Control
54	Panel, Control (White)
55	350930 Whirlpool White Spray Paint
55	SCREW
55	WP72107 Whirlpool Touchup
55	799344 Whirlpool Refrigerator Paint
55	72017 Whirlpool Appliance Touch-Up Paint White
55	350956 Whirlpool Spray Assembly
55	350938 Whirlpool Spray Gun
55	Almond (Uncut)
