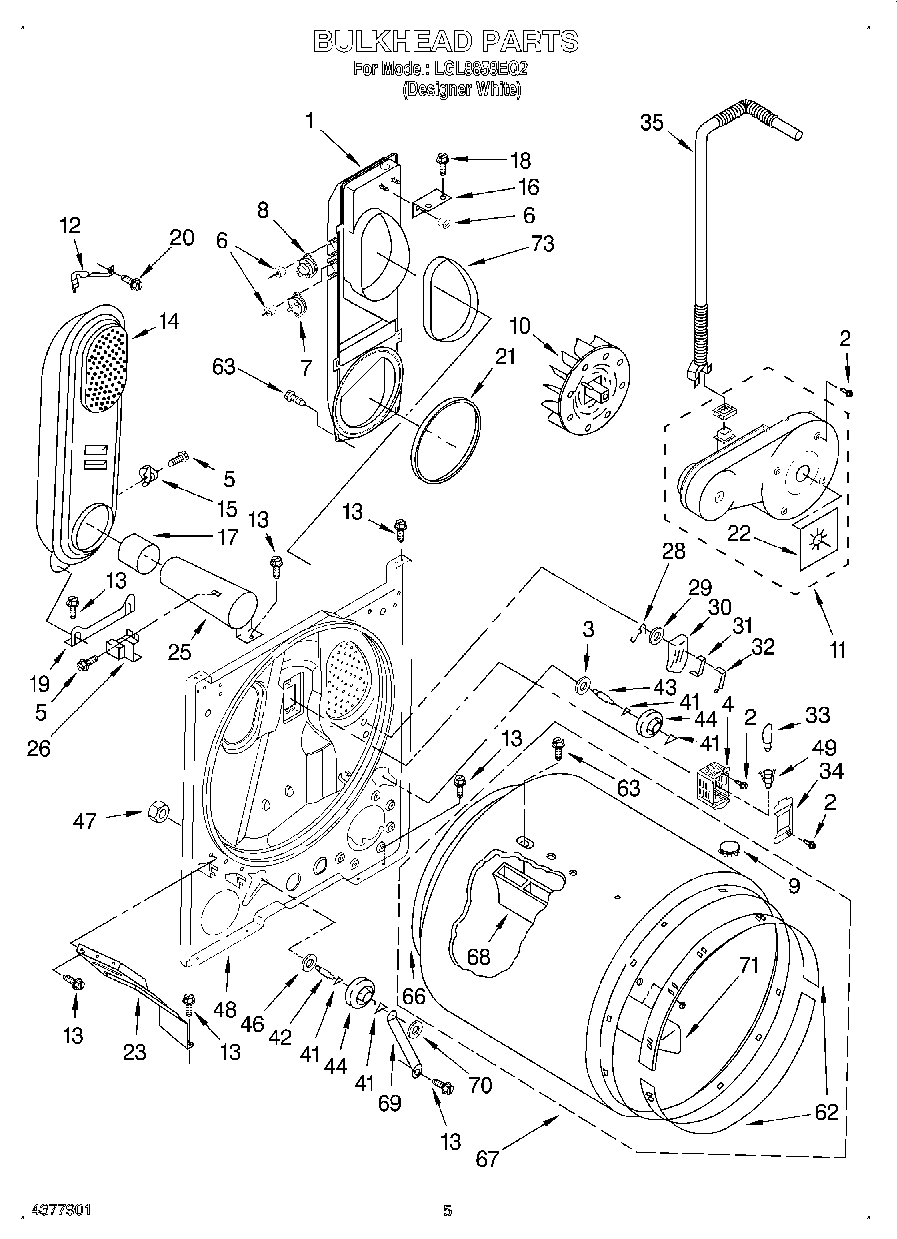

LGL8858EQ2 03 – BULKHEAD

LGL8858EQ2 03 – BULKHEAD

Written by

in

LGL8858EQ2 03 – BULKHEAD

Products

PositionProduct
1Lint Chute Assembly (Includes Illus. Nos. 6, 16 & 21)
2WP488729 Whirlpool Refrigerator Door Screw
3WP3388703 Whirlpool Washer
43977373 Whirlpool Bracket
5WP90767 Whirlpool Screw
6WP488130 Whirlpool Air Conditioner Nut
7WP3392519 Whirlpool Dryer Thermal Fuse
8THRMST-FIX
98066086 Whirlpool Plug
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
15W11050897 Whirlpool Dryer High Limit Thermostat
16Bracket, Lint Chute
18WP693995 Whirlpool Screw
19Support, Heater Box
20WP489463 Whirlpool Refrigerator Screw
21W11415783 Whirlpool Seal
22Seal, Blower
23W11398682 Whirlpool Bracket
25279900 Whirlpool Box O/S1
26WP338906 Whirlpool Dryer Gas Sensor
28Clip, Sensor
29WP298877 Whirlpool Washer
30SENSOR KIT
31WP348859 Whirlpool Electrode Assembly
32WP348860 Whirlpool Electrode
33WP22002263 Whirlpool Dryer 10W Light Bulb
34W11226088 Whirlpool Lens Assembly
35Transport Tube Assembly
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44349241T Whirlpool Dryer Drum Support Roller Kit
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48W10828905 Whirlpool Bulkhead OS1
49W11700522 Whirlpool Socket
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
66W10612022 Whirlpool Felt Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69W11684613 Whirlpool Bracket
70WP90296 Whirlpool Clip
71WP3403636 Whirlpool Drum Baffle
73SEAL
